Mechanical Interface; Flatness; Mounting Height - Tecnotion TM3 Series Manual

Details about minimum mounting distances between both coils can be
found in appendix F. For other coupling possibilities please contact your
local Tecnotion representative.
Use only one of the temperature sensors
Make sure that the cables of both motors have exactly the same length
Please remember to respect the coil positioning over the magnet track as
described in 3.2.3
3.2

Mechanical interface

Applying too long bolts for the coil unit may inconspicuously
cause damage and dangerous situations. Please, check
(1) bolt length before mounting
(2) bolt height after mounting
Use only the specified type of flat head fasteners with the correct
length. The coil and magnet plate can be damaged by non flat
head bolts.
Make sure the dowelpins do not extend further than the
specified height. The magnet plate can be damaged by too long
dowelpins.
The use of other water cooling connnections may cause higher
pressure drops than indicated due to smaller throughput.
©2015 Tecnotion BV - All rights reserved - The contents of this document are subject to change without prior notice.
When using a Tecnotion linear motor please take notice of the ad-
vice, tips and warnings in this chapter. It will make sure that your li-
near motor will perform as best as possible. Special attention should
be given to the orientation of the coil over the magnet track. All
dimensions for the ironcore series products can be found in

3.2.1 Flatness

With the prescribed flatness, see picture 3.4, the specified mounting height
can be used. If a lower flatness ratio is to be used the mounting height
needs to be increased. Please refer to 3.2.2 Mounting height on page 15
for further information.
r 0,1 A
i 0,1 A
r 0,1

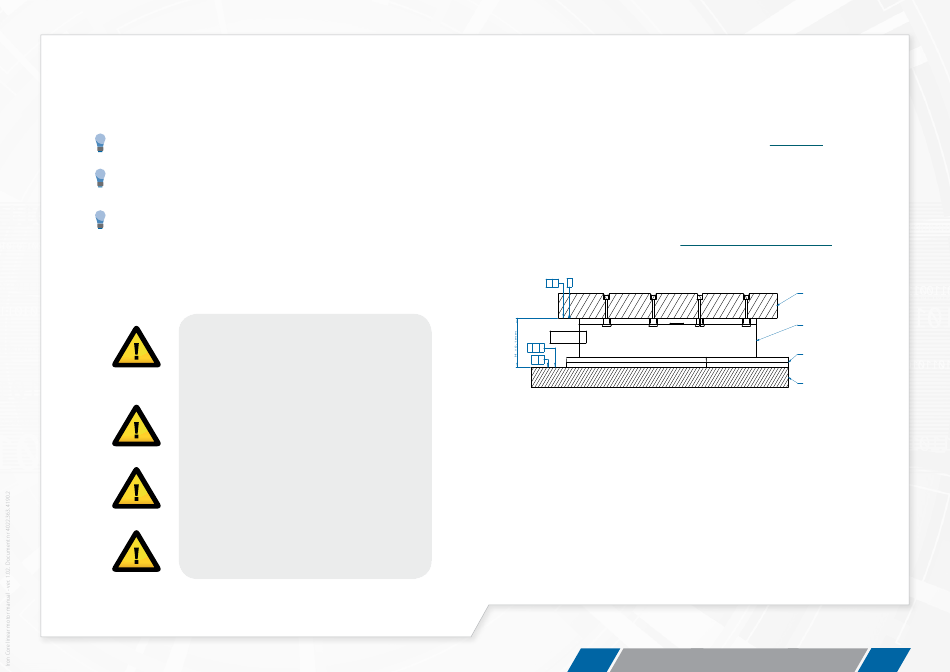

Picture 3.4: Flatness and parallelism requirements for coil and magnet plate
CH 3 MOTOR CONFIGURATION
APPENDIX A.
Slide
Coil Unit
Magnet Plate
Mounting Frame
14
