Tecnotion TM3 Series Manual page 25

Coilunit Distance D Distance E
type (mm) (mm)
TM 3 23,85 9,50
TM 6 58,85 9,50
TM 12 56,85 9,50
TM 18 73,35 9,50
TL 6 30,80 22,50
TL 9 & 15 56,80 22,50
TL 12 & 24 60,80 22,50
TL 18 73,30 22,50
TB 12 60,85 46,50
TB 15 & 30 60,80 46,50
TBW 18 81,35 46,50
TBW 30 & 45 72,85 46,50
Table 3.32: Digital Hall module mechanical and electrical installation requirements.
(see picture 3.34)
Digital Hall electrical interface
Color
Black
Brown
Orange
Green
Yellow
Table 3.33: Digital Hall module cables indentification
©2015 Tecnotion BV - All rights reserved - The contents of this document are subject to change without prior notice.
Distance H SIGNAL ACCORDING FIGURE
(mm) Hall A Hall B Hall C
TM series
32 S2 S3 S1
Inverted Inverted Inverted
32 S1 S2 S3
32 S1 S2 S3
32 S1 S2 S3
TL series
32 S1 S2 S3
32 S1 S2 S3
32 S3 S1 S2
Inverted Inverted Inverted
32 S1 S2 S3
TB series
36 S2 S3 S1
36 S1 S2 S3
TBW series
36 S2 S3 S1
36 S3 S1 S2
Connection
Gnd
+4..28V
HALL A
HALL B
HALL C
2
Phase 1 (+) - Phase 2 (-)
S1
1
0
-1
3-1 2-3
-2
0 2 4 6 8 10 12
MOVEMENT OF ONE POLEPITCH IN CABLE DIRECTION (mm)

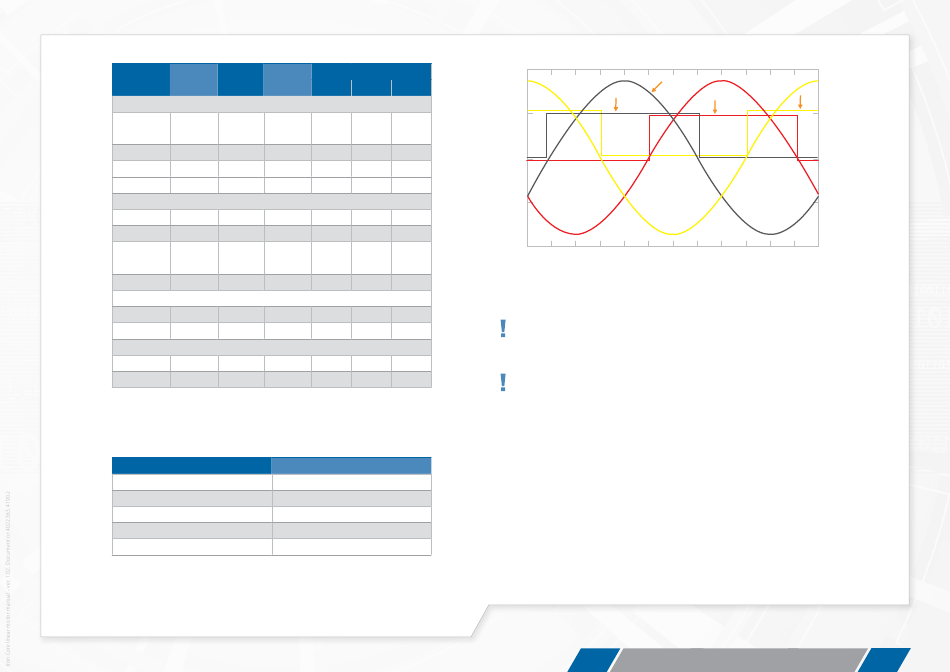

Picture 3.34: Digital Hall signal reference corresponding to the pole pitch
Hall module signal varies per coil unit type. Please review table 3.32 care-
fully for the correct installation.
The digital hall module is delivered without a connector.
CH 3 MOTOR CONFIGURATION
S2
S3
1-2
14 16 18 20 22 24
25
