Dimensions - Tl Magnet Plates - Tecnotion TM3 Series Manual

Parameter
Magnet Plate Type
Magnet Plate Length
Magnet Plate Width
Magnet Plate Height
Magnet Plate weight
Magnet Plate Edge to Centerline
Magnet Plate Edge to Dowel Pin
Dowelpin to Slotted Dowelpin
Dowelpin to dowelpin
Dowel Pin to Mounting Hole
Mounting Hole to Mounting Hole
Number
Mounting Hole to Centerline
Dowelpin Hole size and depth
For Dowelpin DIN7 Ø5h8
Slotted Dowelpin Hole size and depth
For Dowelpin DIN7 Ø5h8
Mounting Hole size and number
For M5 DIN7984 (Lowhead)
©2015 Tecnotion BV - All rights reserved - The contents of this document are subject to change without prior notice.
APPENDIX A
Dimension Unit TL
192
M mm 192
mm 80
mm 8.2
kg/m 3.8
mm 40
mm 14.7
P mm 168
M mm 192
mm 12
mm 48
n 3
mm 35
mm Ø5 F10
(3 deep)
mm 5F10 x 0,5
(3 deep)
mm Ø6 (8x)

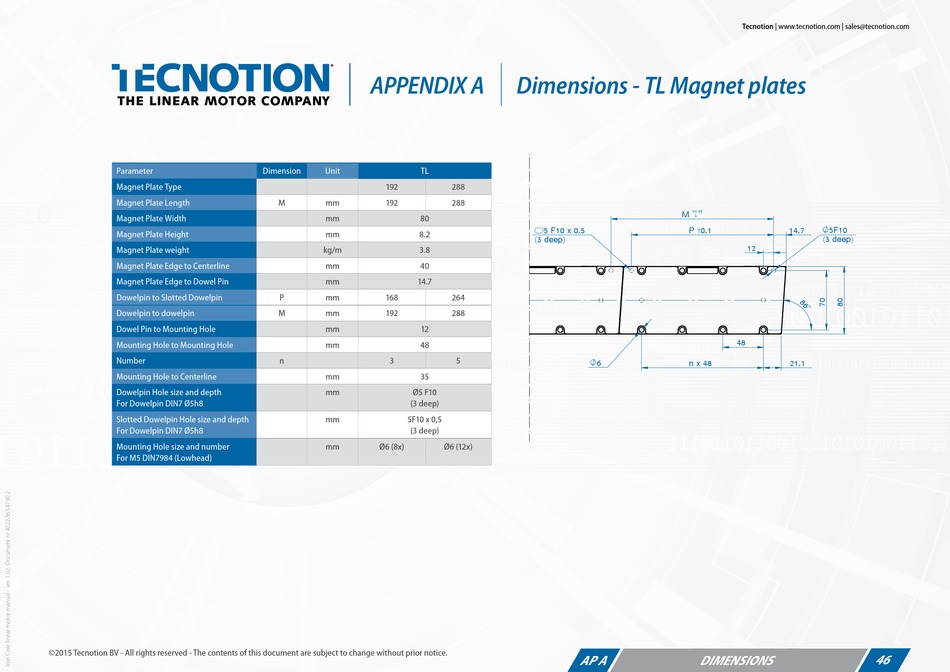

Dimensions - TL Magnet plates

Magnet Plates
288
288
‹ 5 F10 x 0,5
(3 deep)
264
288
5
O 6
Ø6 (12x)
AP A
Tecnotion | www.tecnotion.com | sales@tecnotion.com
+0.05
M
0
P u 0,1 O 5F10
14,7
(3 deep)
12
48
n x 48 21,1
DIMENSIONS
46
