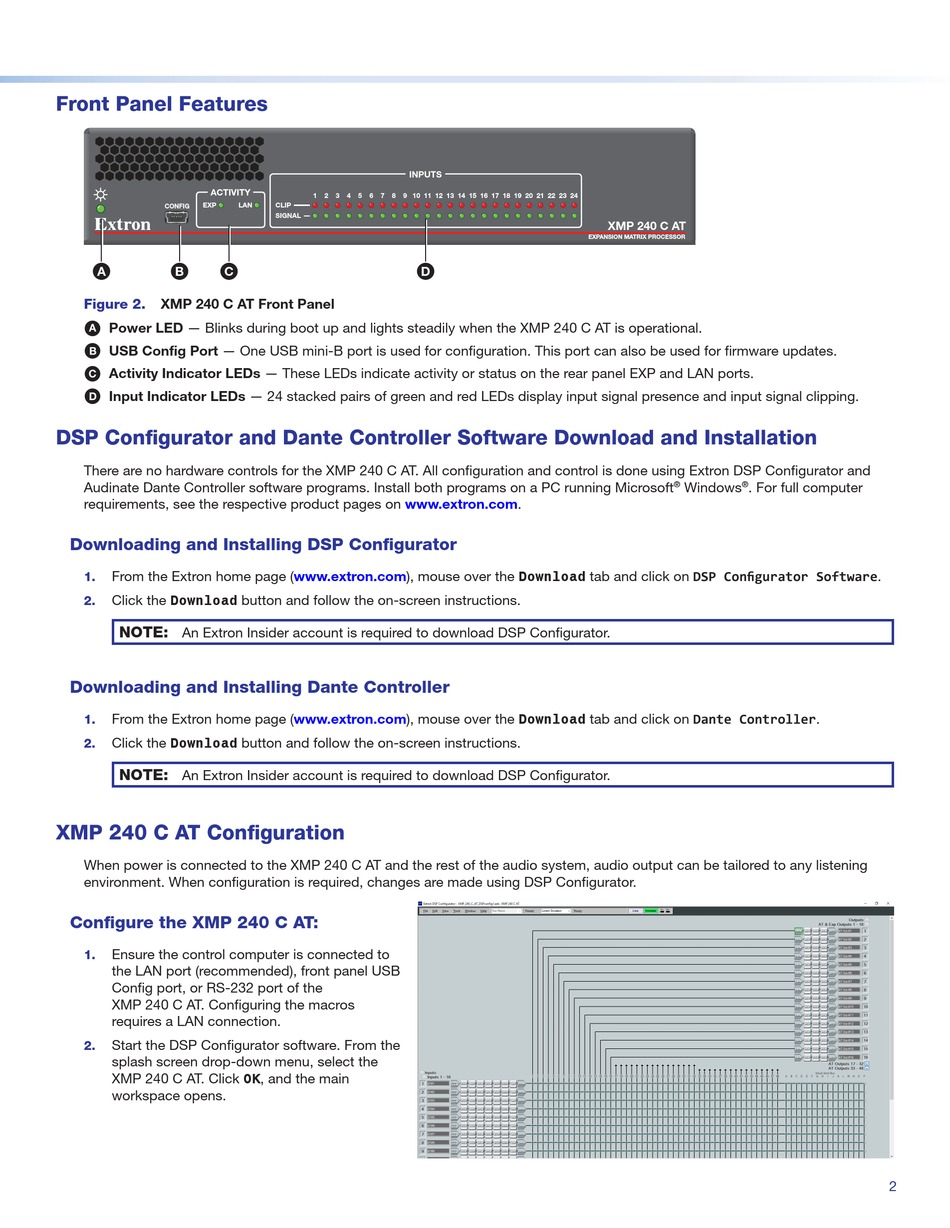

Front Panel Features; Downloading And Installing Dsp Configurator; Downloading And Installing Dante Controller; Xmp 240 C At Configuration - Extron electronics XMP 240 C AT Setup Manual

Front Panel Features

ACTIVITY
EXP
CONFIG
A B C
Figure 2. XMP 240 C AT Front Panel
Power LED — Blinks during boot up and lights steadily when the XMP 240 C AT is operational.
A
USB Config Port — One USB mini-B port is used for configuration. This port can also be used for firmware updates.
B
Activity Indicator LEDs — These LEDs indicate activity or status on the rear panel EXP and LAN ports.
C
Input Indicator LEDs — 24 stacked pairs of green and red LEDs display input signal presence and input signal clipping.
D
DSP Configurator and Dante Controller Software Download and Installation
There are no hardware controls for the XMP 240 C AT. All configuration and control is done using Extron DSP Configurator and
Audinate Dante Controller software programs. Install both programs on a PC running Microsoft
requirements, see the respective product pages on www.extron.com.

Downloading and Installing DSP Configurator

From the Extron home page (www.extron.com), mouse over the Download tab and click on DSP Configurator Software.
1.
Click the Download button and follow the on-screen instructions.
2.
NOTE:
An Extron Insider account is required to download DSP Configurator.

Downloading and Installing Dante Controller

From the Extron home page (www.extron.com), mouse over the Download tab and click on Dante Controller.
1.
Click the Download button and follow the on-screen instructions.
2.
NOTE:
An Extron Insider account is required to download DSP Configurator.

XMP 240 C AT Configuration

When power is connected to the XMP 240 C AT and the rest of the audio system, audio output can be tailored to any listening
environment. When configuration is required, changes are made using DSP Configurator.
Configure the XMP 240 C AT:
Ensure the control computer is connected to
1.
the LAN port (recommended), front panel USB
Config port, or RS-232 port of the
XMP 240 C AT. Configuring the macros
requires a LAN connection.
Start the DSP Configurator software. From the
2.
splash screen drop-down menu, select the
XMP 240 C AT. Click OK, and the main
workspace opens.
INPUTS
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
LAN CLIP
SIGNAL
EXPANSION MATRIX PROCESSOR
D
XMP 240 C AT
