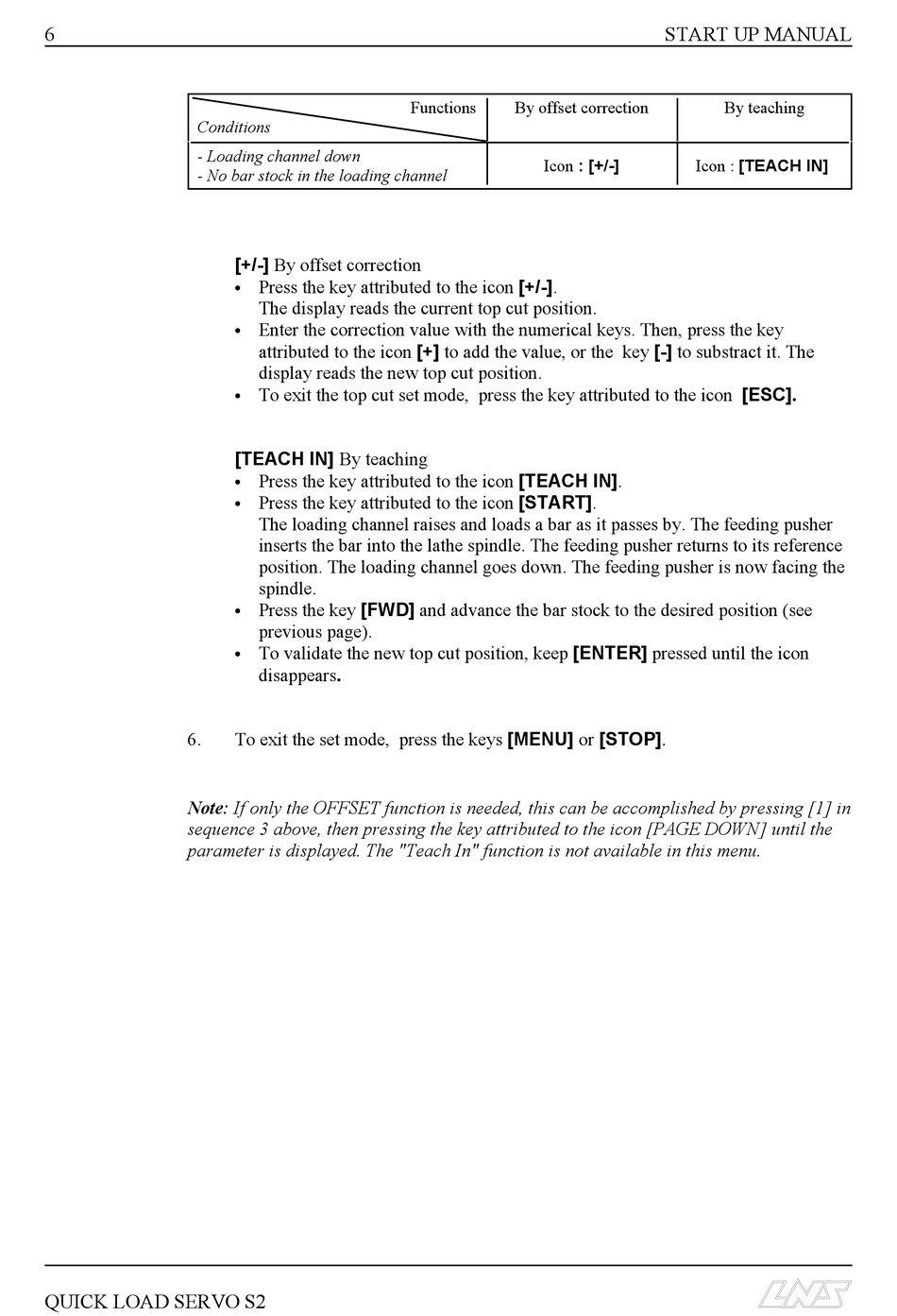

LNS QUICK LOAD SERVO S2 Startup Manual page 7

6
Conditions
- Loading channel down
- No bar stock in the loading channel
6.
Note: If only the OFFSET function is needed, this can be accomplished by pressing [1] in
sequence 3 above, then pressing the key attributed to the icon [PAGE DOWN] until the
parameter is displayed. The "Teach In" function is not available in this menu.
QUICK LOAD SERVO S2
[+/-] By offset correction
Press the key attributed to the icon [+/-].
C
The display reads the current top cut position.
C Enter the correction value with the numerical keys. Then, press the key
attributed to the icon [+] to add the value, or the key [-] to substract it. The
display reads the new top cut position.
To exit the top cut set mode, press the key attributed to the icon [ESC].
C
[TEACH IN] By teaching
Press the key attributed to the icon [TEACH IN].
C
C Press the key attributed to the icon [START].
The loading channel raises and loads a bar as it passes by. The feeding pusher
inserts the bar into the lathe spindle. The feeding pusher returns to its reference
position. The loading channel goes down. The feeding pusher is now facing the
spindle.
Press the key [FWD] and advance the bar stock to the desired position (see
C
previous page).
C To validate the new top cut position, keep [ENTER] pressed until the icon
disappears.
To exit the set mode, press the keys [MENU] or [STOP].
Functions By offset correction
Icon : [+/-]
START UP MANUAL
By teaching
Icon : [TEACH IN]
