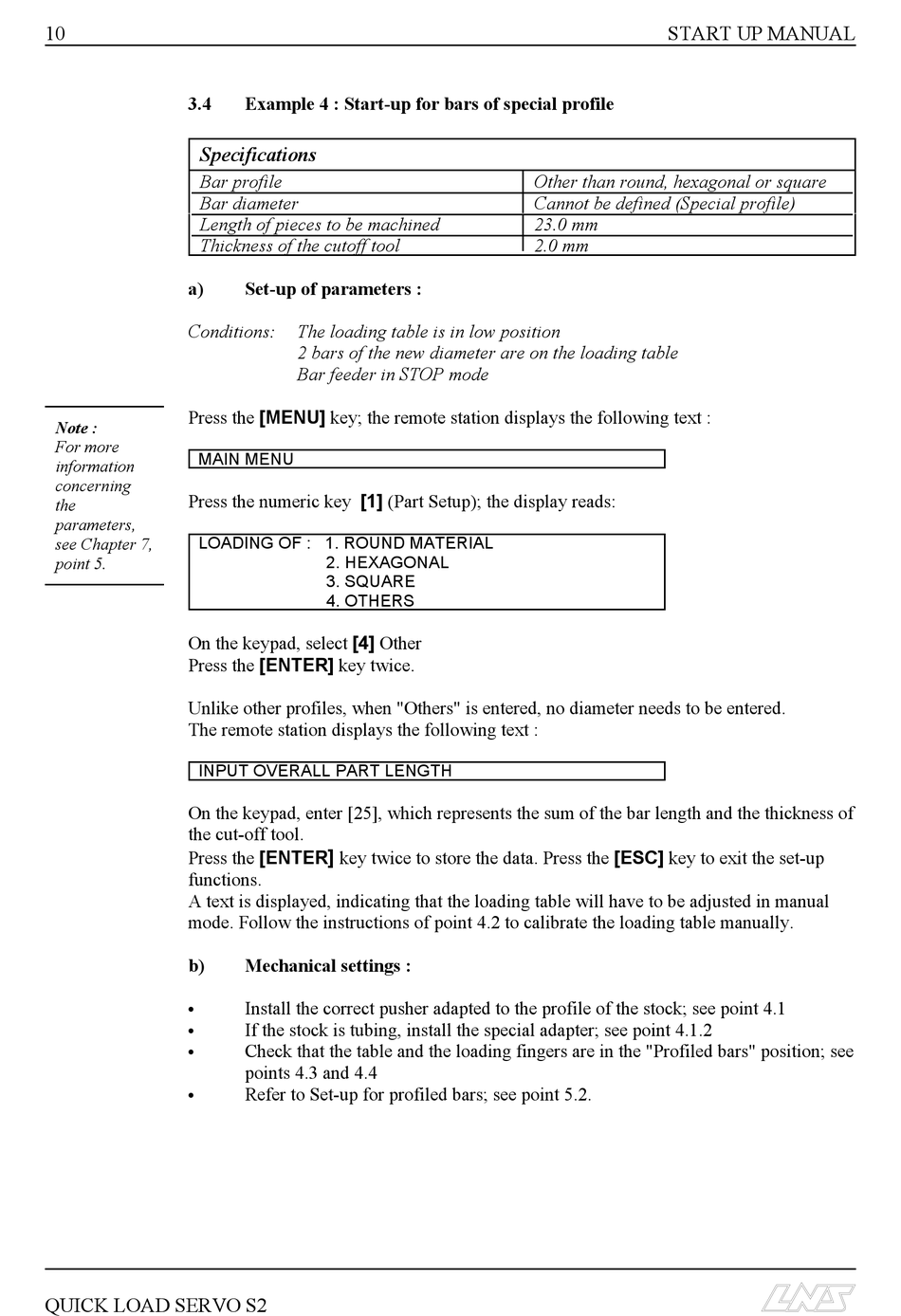

LNS QUICK LOAD SERVO S2 Startup Manual page 11

10
3.4
Specifications
Bar profile
Bar diameter
Length of pieces to be machined
Thickness of the cutoff tool
a)
Conditions:
Press the [MENU] key; the remote station displays the following text :
Note :
For more
MAIN MENU
information
concerning
Press the numeric key [1] (Part Setup); the display reads:
the
parameters,
LOADING OF : 1. ROUND MATERIAL
see Chapter 7,
point 5.
On the keypad, select [4] Other
Press the [ENTER] key twice.
Unlike other profiles, when "Others" is entered, no diameter needs to be entered.
The remote station displays the following text :
INPUT OVERALL PART LENGTH
On the keypad, enter [25], which represents the sum of the bar length and the thickness of
the cut-off tool.
Press the [ENTER
functions.
A text is displayed, indicating that the loading table will have to be adjusted in manual
mode. Follow the instructions of point 4.2 to calibrate the loading table manually.
b)
C
C
C
C
QUICK LOAD SERVO S2
Example 4 : Start-up for bars of special profile
Set-up of parameters :
The loading table is in low position
2 bars of the new diameter are on the loading table
Bar feeder in STOP mode
2. HEXAGONAL
3. SQUARE
4. OTHERS
]
key twice to store the data. Press the [ESC] key to exit the set-up
Mechanical settings :
Install the correct pusher adapted to the profile of the stock; see point 4.1
If the stock is tubing, install the special adapter; see point 4.1.2
Check that the table and the loading fingers are in the "Profiled bars" position; see
points 4.3 and 4.4
Refer to Set-up for profiled bars; see point 5.2.
START UP MANUAL
Other than round, hexagonal or square
Cannot be defined (Special profile)
23.0 mm
2.0 mm
