pITX-iMX8M – Rev. 0.7 Preliminary
6.24. Thermal Sensor (U24)
The pITX-IMX8M monitors the PCB ambient temperature between iMX8 M, eMMC and LPDDR4 device with an LM75B
temperature sensor.
The iMX8 M I2C 1 interface connects to LM75B. The I2C 7-bit address is set to 0x4B.

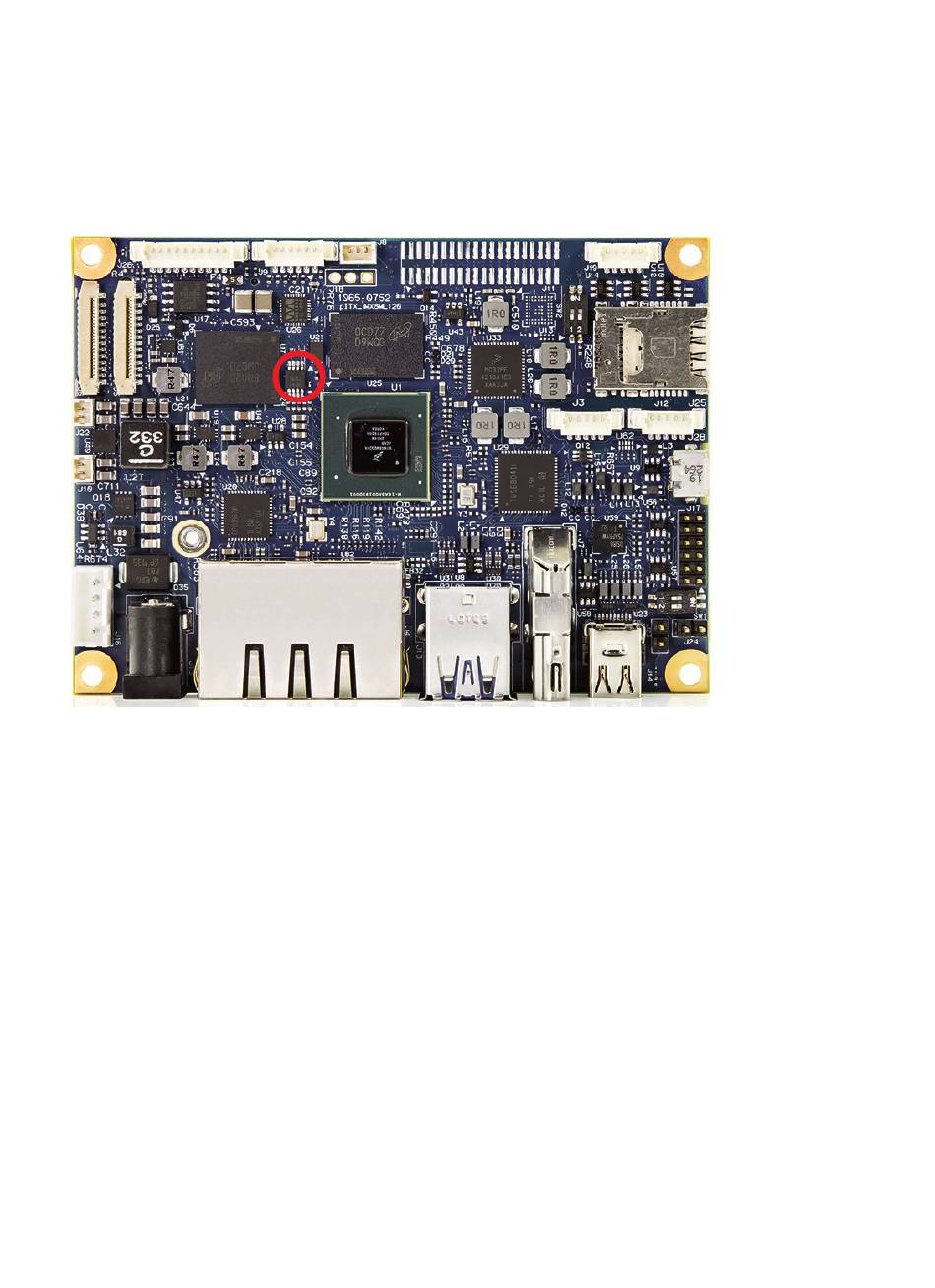

Figure 29: Sensor Location (red circle)
www.kontron.com
// 51
