6.17. Mini Display Port (J14)

The two external Display Port 1.2 at rear I/O space are supporting Active/Passive HDMI 1.4a and DVI adapters.

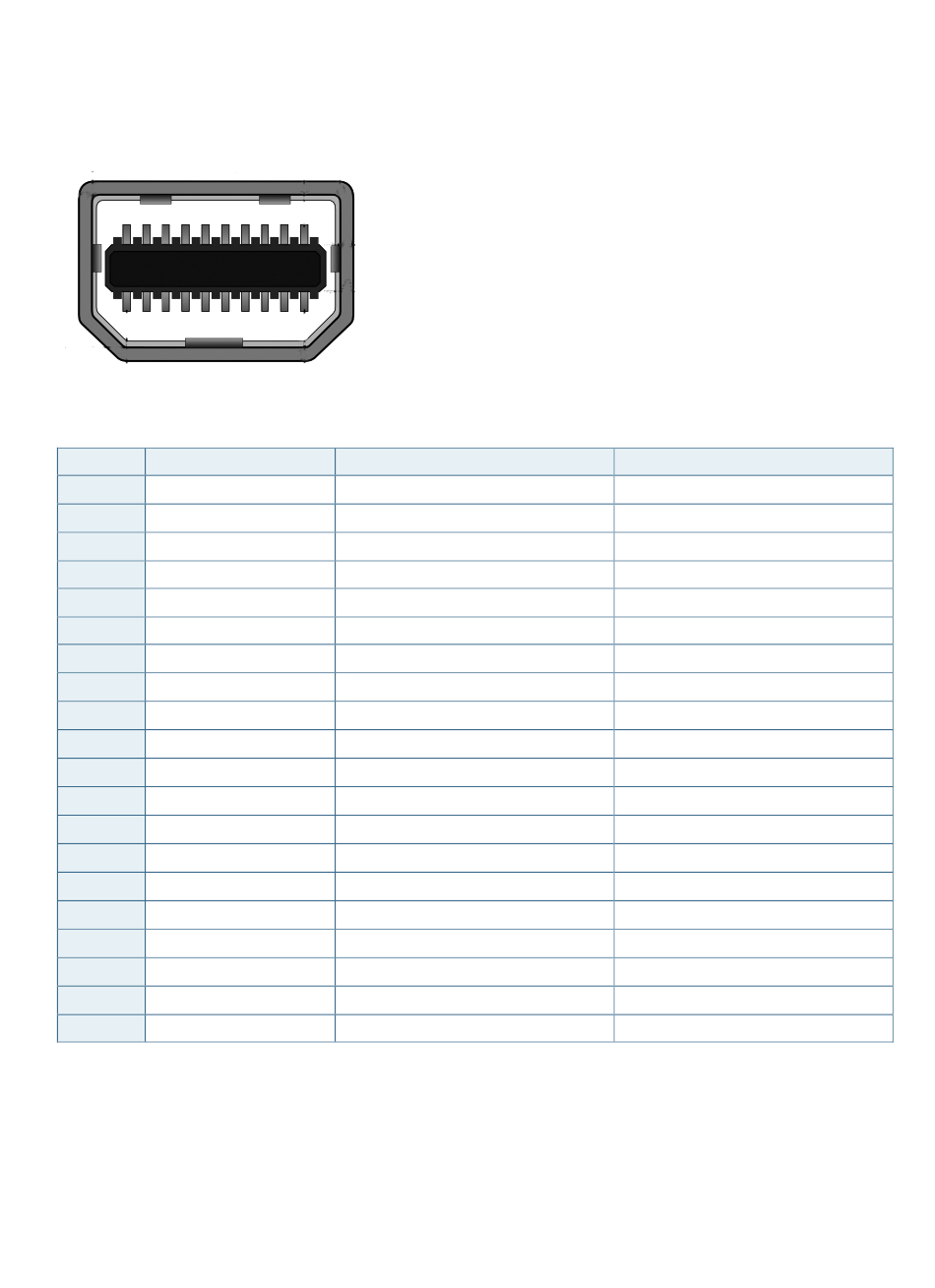

Figure 23: Mini Display Port

Table 29: Mini Display Port

Pin Function
1 GND
2 HOT_PLUG
3 DP0 TX0+
4 NC
5 DP0 TX0-
6 GND
7
GND
8 GND
9 DP0 TX1+
10 DP0 TX3+
11 DP0 TX1-
12 DP0 TX3-
13 GND
14 GND
15 DP0 TX2+
16 DP0 AUX+
17 DP0 TX2-
18 DP0 AUX-
19 GND
20 DP Power
1
Direction
Ground
In
Out
n.a
Out
Ground
Ground
Ground
Out
Out
Out
Out
Ground
Ground
Out
In/Out
Out
In/Out
Ground
Power Out
pITX-iMX8M – Rev. 0.7 Preliminary
Description
Config 1 is not connected
Config 2 is pulled to GND
+3.3V, 0.75A max
