Instruction Manual Supplement
D103856X012

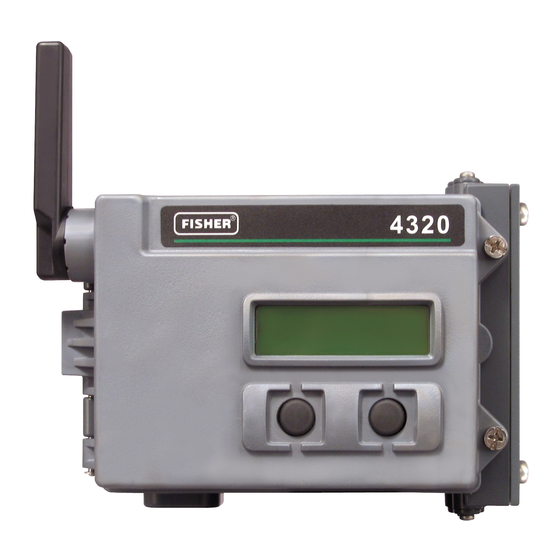

Hot Swap Procedure
Supplement to Fisher

Instruction Manual

This procedure is used to 'swap out' a depleted power module with a new power module without having to remove
power from the device. It requires two test leads with banana plug connectors and micro-plunger clips and a new
power module. This allows the device to maintain operation and avoids disrupting the wireless network.
Note
A Hot Swap parts kit is required for this procedure. Contact your
Note
Refer to the 4320 instruction manual (D103621X012), available from your Emerson sales office or Local Business Partner, or at
www.Fisher.com for all other information regarding the 4320 wireless position monitor.
This supplement also pertains to TopWorx™ 4310 Wireless Position Monitors (Supported Status). See instruction manual
D103622X012, available at www.Fisher.com, for information regarding the 4310 wireless position monitor.
WARNING
This procedure can only be performed when the position monitor is located in a non-hazardous location. Performing the
Hot Swap procedure in a hazardous area could result in personal injury or property damage.
Refer to figure 1.
1. Attach the banana plug connector end of the test leads to the new power module, taking care to prevent the wires
from shorting.
2. Connect the clips to to the WP2/WP3 Backup Power Terminals on the main board.
3. Loosen the four self tapping screws (see figure 2) and remove the depleted power module.
4. Position the new power module over the connections and insert on to the main board. The banana plug connector
end of the leads will come loose from the new power module.
5. Remove the clips from the WP2/WP3 Backup Power Terminals.
6. Tighten the four self tapping screws to a torque of 0.282 N•m (2.5 lbf•in) to ensure that the power module is
secured properly.
7. Close the cover and tighten the instrument cover screws to a torque of 5.6 to 6.7 N•m (50 to 60 lbf•in).
www.Fisher.com
™
4320 Wireless Position Monitor
Emerson sales office
4320 Wireless Position Monitor
or Local Business Partner for kit information.
January 2018
