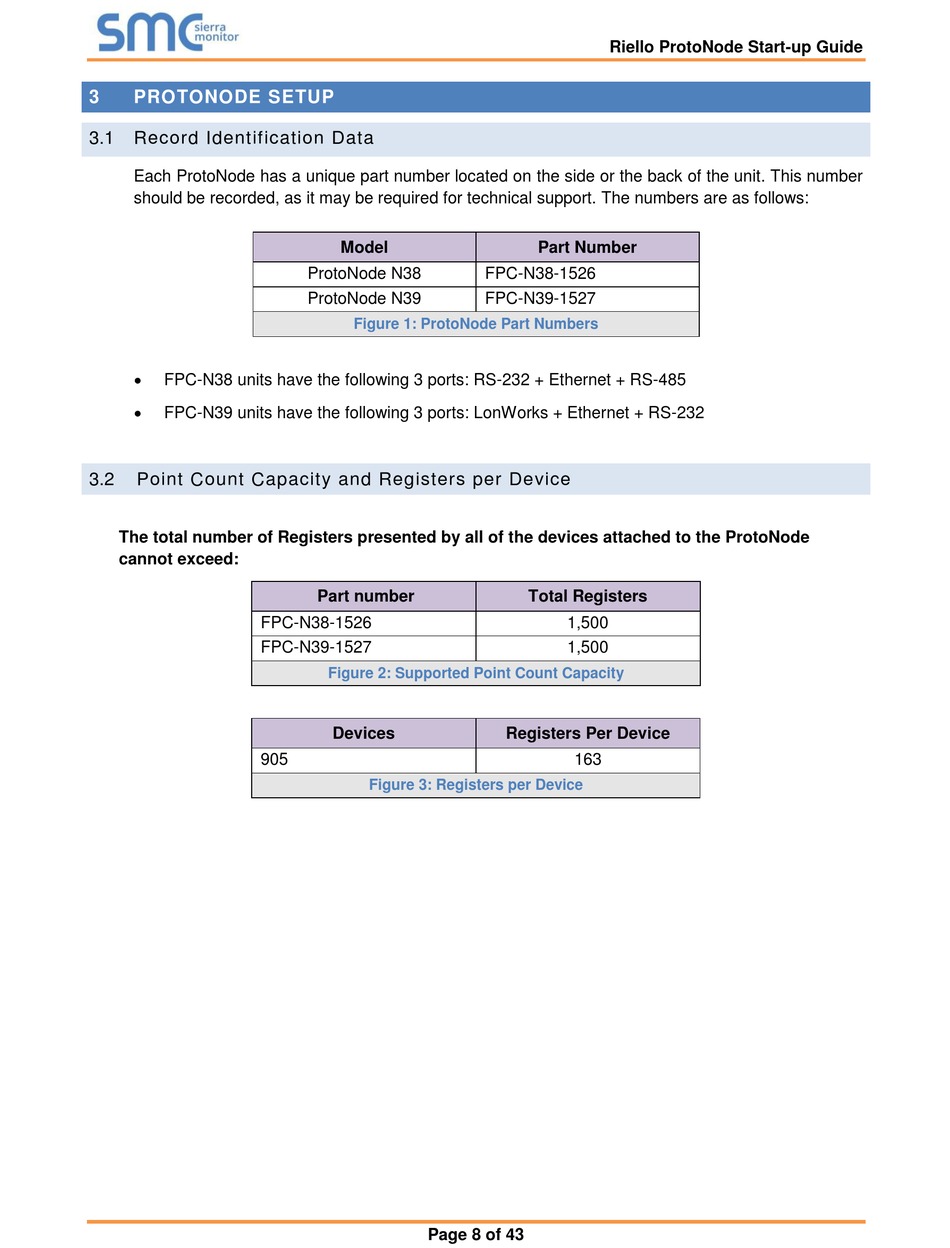

PROTONODE SETUP

3.1

Record Identification Data

Each ProtoNode has a unique part number located on the side or the back of the unit. This number
should be recorded, as it may be required for technical support. The numbers are as follows:

FPC-N38 units have the following 3 ports: RS-232 + Ethernet + RS-485

FPC-N39 units have the following 3 ports: LonWorks + Ethernet + RS-232
3.2

Point Count Capacity and Registers per Device

The total number of Registers presented by all of the devices attached to the ProtoNode
cannot exceed:
FPC-N38-1526
FPC-N39-1527
905
Model
ProtoNode N38 FPC-N38-1526
ProtoNode N39 FPC-N39-1527

Figure 1: ProtoNode Part Numbers

Part number

Figure 2: Supported Point Count Capacity

Devices

Figure 3: Registers per Device

Page 8 of 43
Riello ProtoNode Start-up Guide
Part Number
Total Registers
1,500
1,500
Registers Per Device
163
