5.2

BACnet/IP and Modbus TCP/IP: Setting IP Address for Field Network


After setting a local PC on the same subnet as the ProtoNode (Section 5.1), open a web browser
on the PC and enter the IP Address of the ProtoNode; the default address is 192.168.1.24.
NOTE: If the IP Address of the ProtoNode has been changed by previous configuration, the assigned IP
Address can be discovered using the FS Toolbox utility. See

The Web Configurator is displayed as the landing page.
NOTE: Below the "Active profiles" heading are listed the profiles for connected devices. If no
profiles are present, then the wiring, baud rate, and DIP switch settings must be checked,
because there is a problem with device communications. All the active profiles must show
the correct Node-ID's before proceeding.
NOTE: If multiple devices are connected to the ProtoNode, set the BACnet Virtual Server Nodes
field to "Yes"; otherwise leave the field on the default "No" setting.

To access the FS-GUI, click on the "Diagnostics & Debugging" button in the bottom right side of
the page.

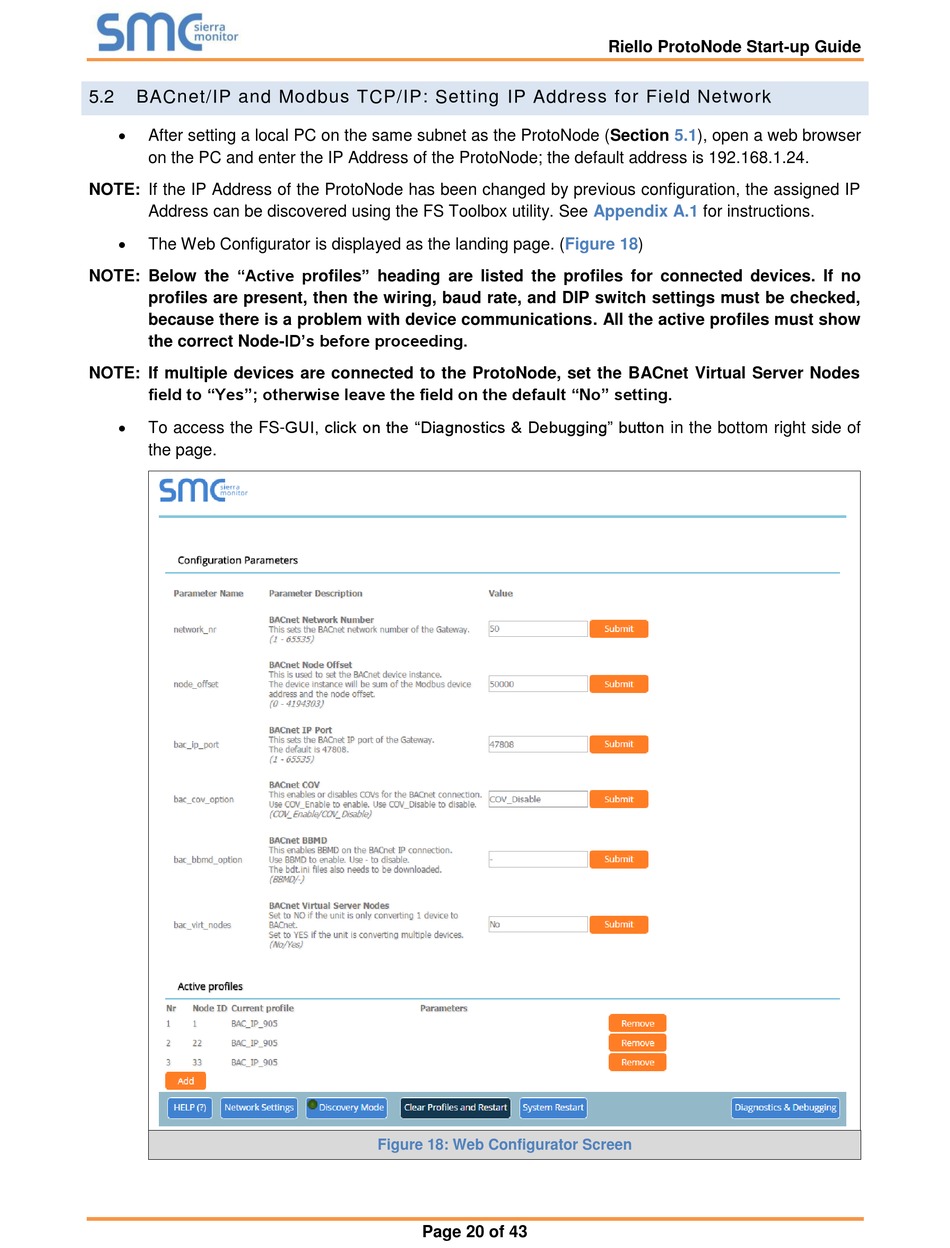

Figure 18: Web Configurator Screen

Page 20 of 43
Riello ProtoNode Start-up Guide
Appendix A.1 for instructions.
(Figure 18)
