From the FS-GUI landing page, click on "Setup" to expand the navigation tree. Then select
"Network Settings" to access the IP Settings menu.

Modify the IP Address (N1 IP Address field) of the ProtoNode Ethernet port.

If necessary, change the Netmask (N1 Netmask field).

Type in a new Subnet Mask.

If necessary, change the IP Gateway (Default Gateway field).

Type in a new IP Gateway.
NOTE: If the ProtoNode is connected to a router, the IP Gateway of the ProtoNode should be set to the
IP Address as the router.

Reset ProtoNode.

Unplug Ethernet cable from PC and connect it to the network hub or router.

Record the IP Address assigned to the ProtoNode for future reference.
NOTE: For FieldPoP™ information, refer to the FieldPoP™ Device Cloud Start-up Guide online at
the Sierra Monitor.com Resource Center.
www.sierramonitor.com/customer-care/resource-center
(Figure

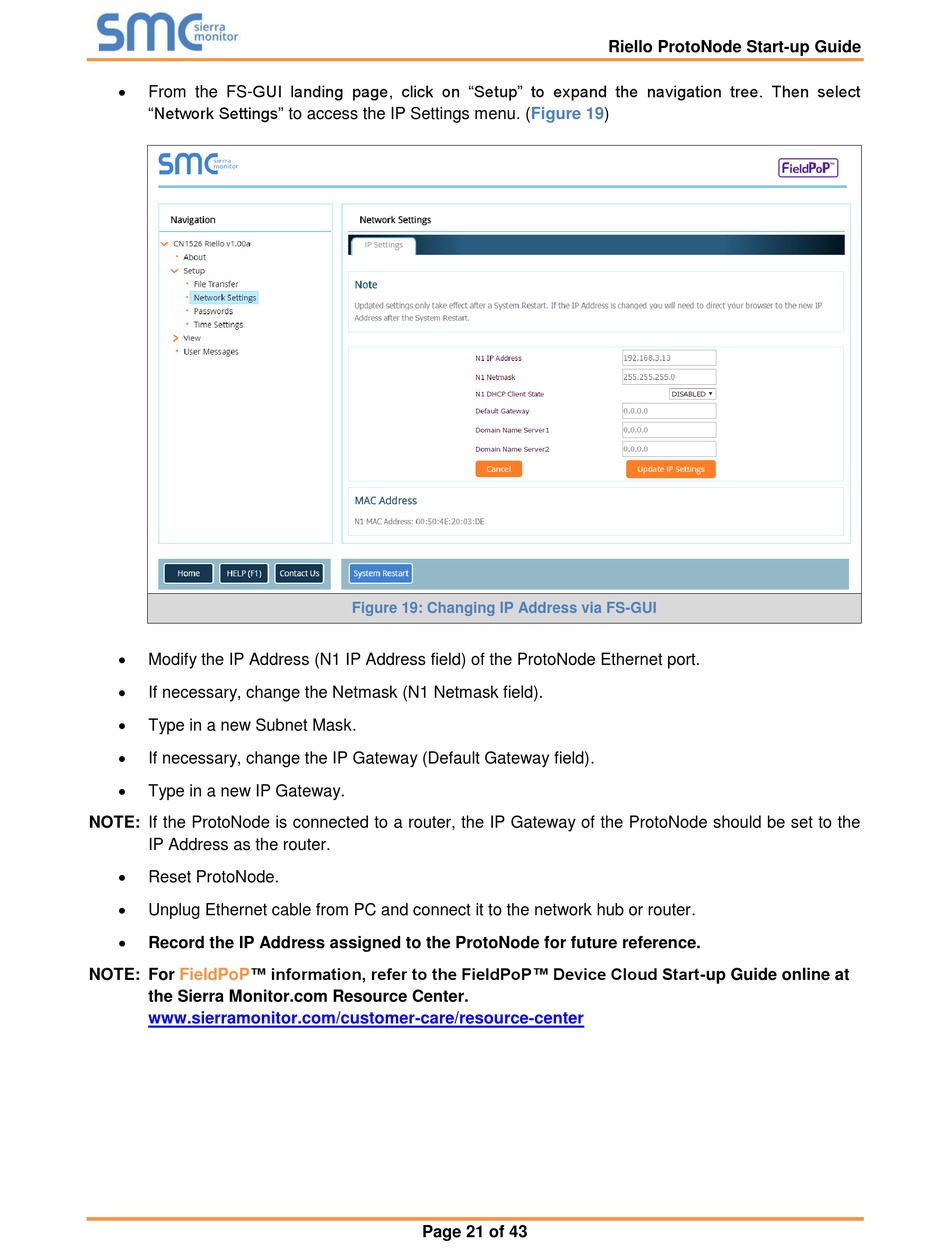

Figure 19: Changing IP Address via FS-GUI

Page 21 of 43
Riello ProtoNode Start-up Guide
19)
