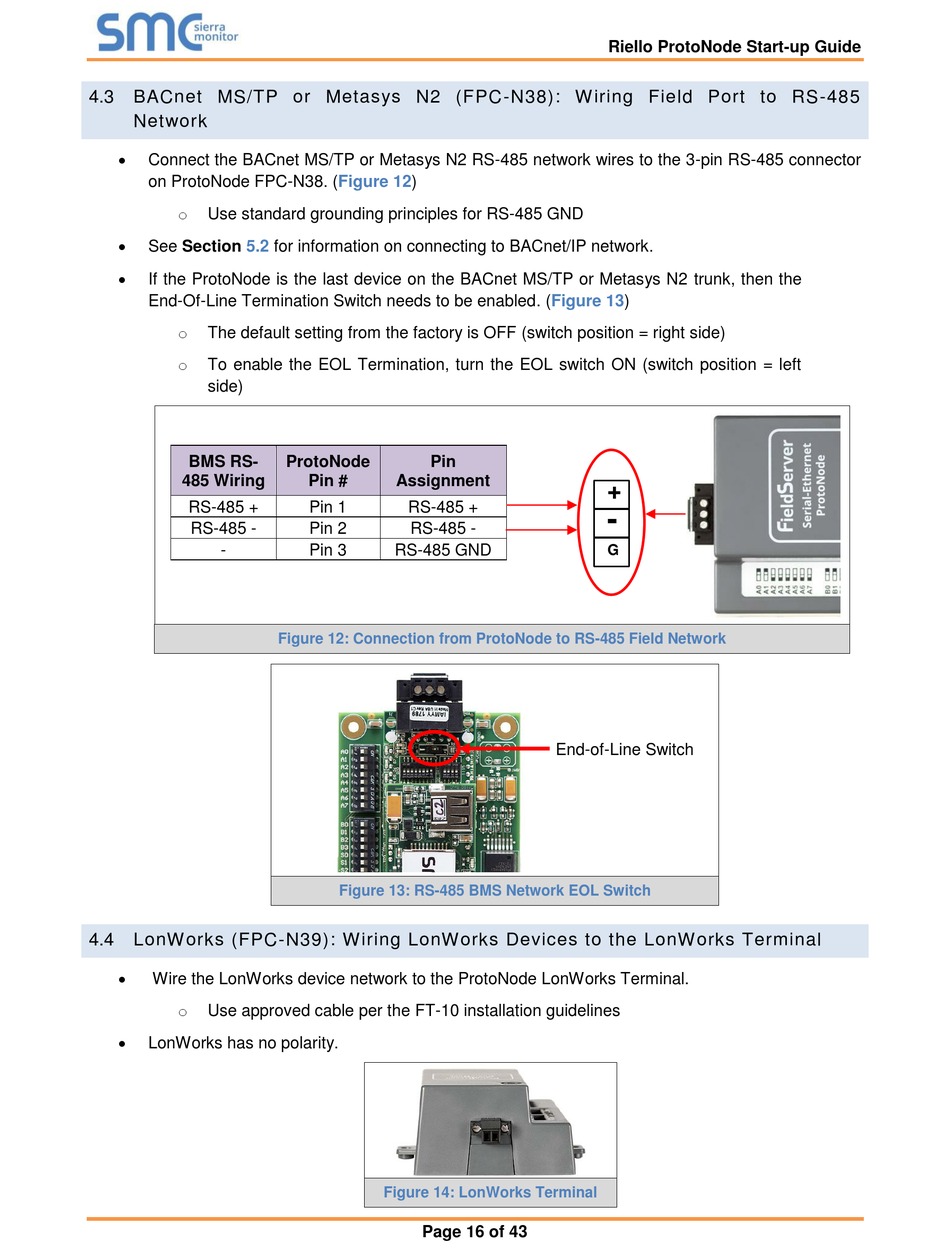

4.3 BACnet MS/TP or Metasys N2 (FPC-N38): W iring Field Port to RS-485
Network

Connect the BACnet MS/TP or Metasys N2 RS-485 network wires to the 3-pin RS-485 connector
on ProtoNode FPC-N38.
o
Use standard grounding principles for RS-485 GND

See Section 5.2

If the ProtoNode is the last device on the BACnet MS/TP or Metasys N2 trunk, then the
End-Of-Line Termination Switch needs to be enabled.
o
The default setting from the factory is OFF (switch position = right side)
o
To enable the EOL Termination, turn the EOL switch ON (switch position = left
side)
BMS RS-
485 Wiring
RS-485 +
RS-485 -
-
4.4 LonW orks (FPC-N39): Wiring LonWorks Devices to the LonWorks Terminal

Wire the LonWorks device network to the ProtoNode LonWorks Terminal.
o
Use approved cable per the FT-10 installation guidelines

LonWorks has no polarity.
(Figure 12)
for information on connecting to BACnet/IP network.
ProtoNode Pin
Pin # Assignment
Pin 1 RS-485 +
Pin 2 RS-485 -
Pin 3 RS-485 GND

Figure 12: Connection from ProtoNode to RS-485 Field Network

Figure 13: RS-485 BMS Network EOL Switch

Figure 14: LonWorks Terminal

Page 16 of 43
Riello ProtoNode Start-up Guide
(Figure 13)
-
G
End-of-Line Switch
