3.5

BMS Network Settings: MAC Address, Device Instance and Baud Rate

3.5.1 BACnet MS/TP (FPC-N38): Setting the MAC Address for BMS Network


Only 1 MAC address is set for ProtoNode regardless of how many devices are connected to
ProtoNode.

Set the BACnet MS/TP MAC addresses of the ProtoNode to a value between 1 to 127 (MAC
Master Addresses); this is so that the BMS Front End can find the ProtoNode via BACnet auto
discovery.
NOTE: Never set a BACnet MS/TP MAC Address from 128 to 255. Addresses from 128 to 255 are
Slave Addresses and can not be discovered by BMS Front Ends that support auto discovery of
BACnet MS/TP devices.

Set "A" bank DIP switches A0 – A7 to assign a MAC Address to the ProtoNode for BACnet
MS/TP.

Refer to Appendix C.1
NOTE: When using Metasys N2 and Modbus TCP/IP, the A Bank of DIP switches are disabled and
not used. They should be set to OFF.
NOTE: When setting DIP Switches, ensure that power to the board is OFF.
for the complete range of MAC Addresses and DIP switch settings.
Off
A0
A1
A2
A3
A4
A5
A6
A7

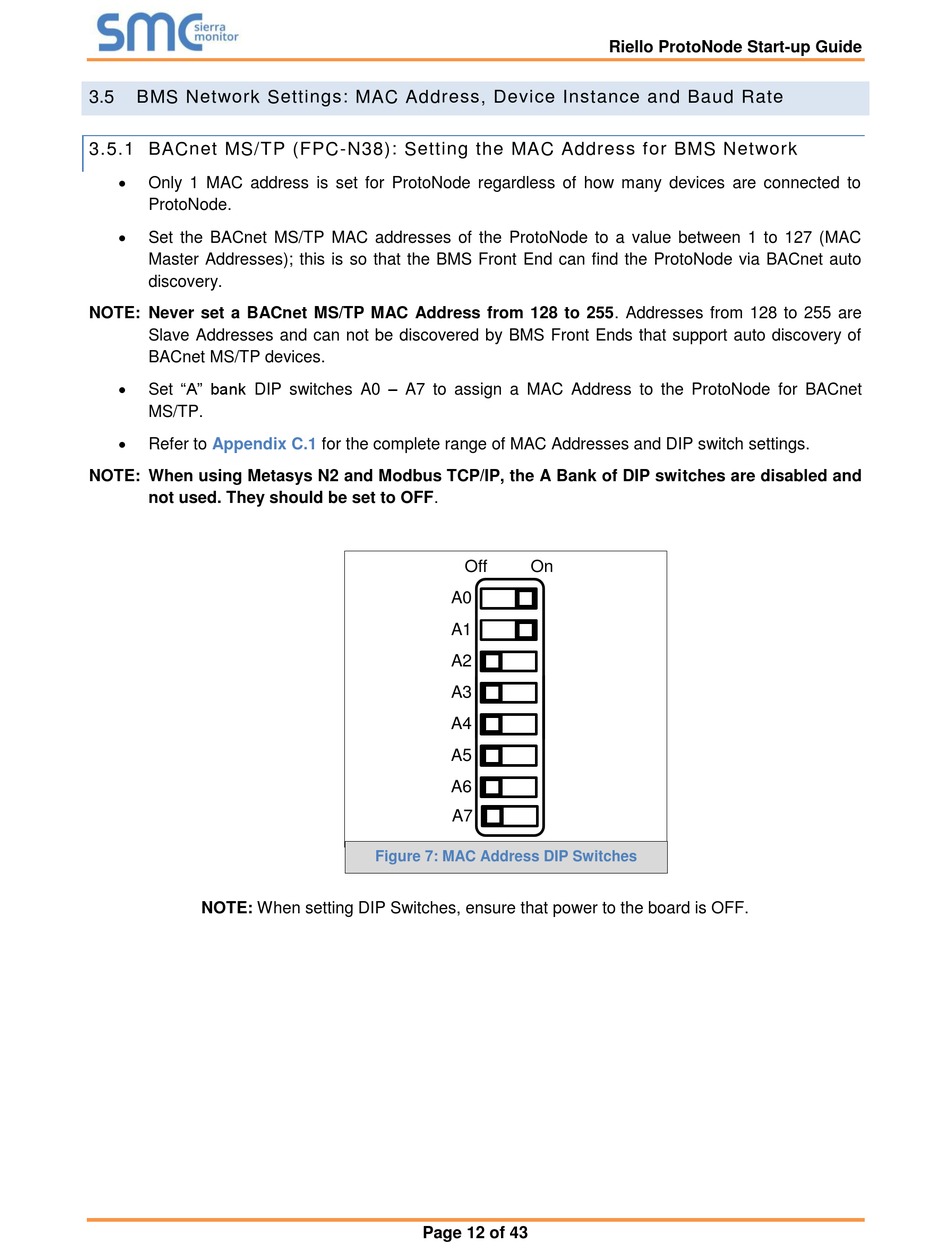

Figure 7: MAC Address DIP Switches

Page 12 of 43
Riello ProtoNode Start-up Guide
On
