8 LONWORKS (FPC-N39): COMMISSIONING PROTONODE ON A LONWORKS
NETWORK
Commissioning may only be performed by the LonWorks administrator.
8.1 Commissioning ProtoNode FPC-N39 on a LonW orks Network
During the commissioning process, the LonWorks Administrator will prompt the User to hit the
Service Pin on the ProtoNode FPC-N39 at a specific point (this step occurs at different points of the
commissioning process for each LonWorks Network Management Tool).

If an XIF file is required, see steps in Section

8.1.1 Instructions to Download XIF File from ProtoNode FPC -N39 Using Browser


Connect a CAT5 Ethernet cable (Straight through or Cross-Over) between the PC and
ProtoNode.

The Default IP Address of ProtoNode is 192.168.1.24, Subnet Mask is 255.255.255.0. If the PC
and ProtoNode are on different IP Networks, assign a static IP Address to the PC on the
192.168.1.xxx network.

For Windows XP:
Go to
Right-click on Local Area Connection > Properties
Highlight

For Windows 7 or later:
Go to
>
Right-click on Local Area Connection > Properties
Highlight
8.1.1

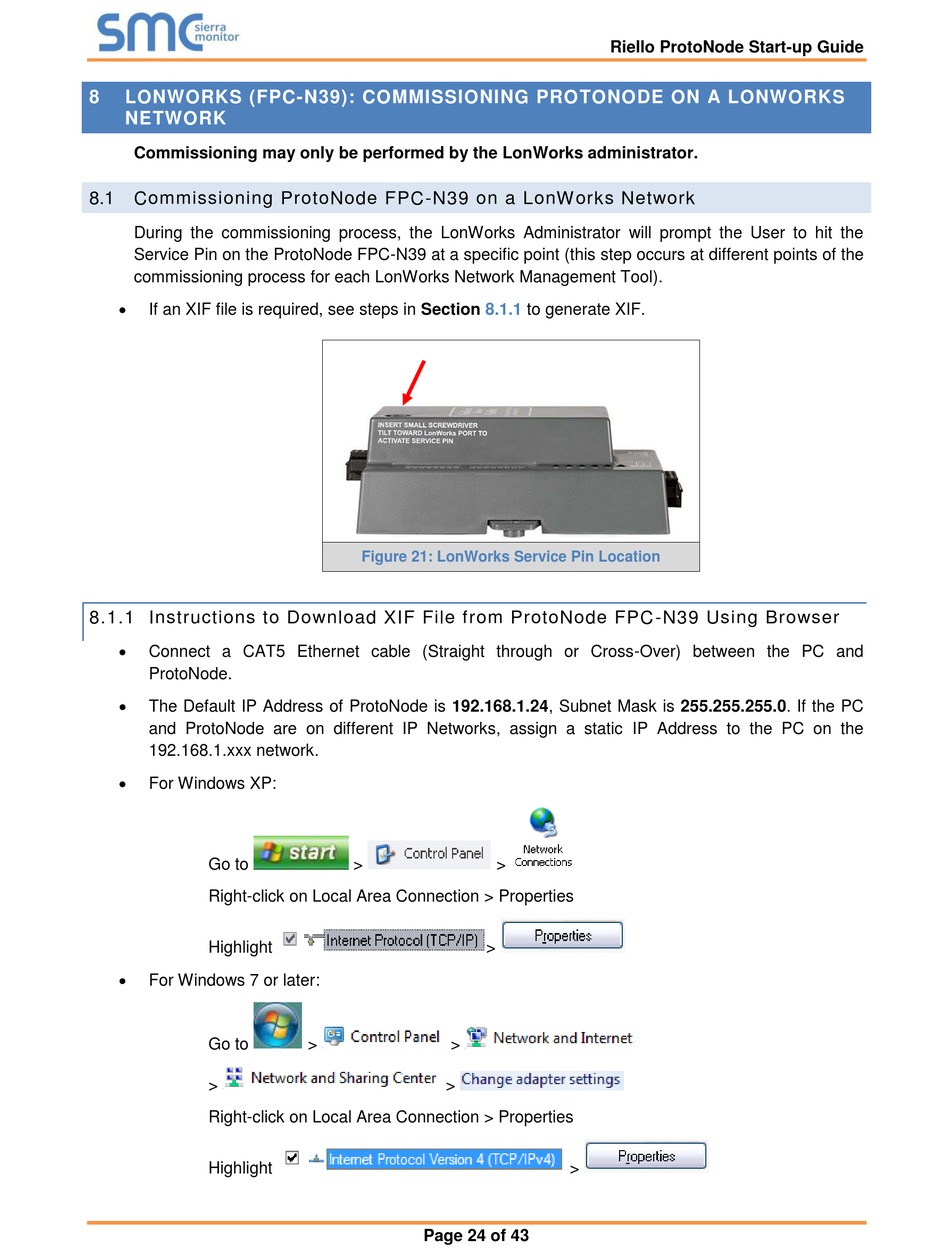

Figure 21: LonWorks Service Pin Location

>
>
> >
>
Page 24 of 43
Riello ProtoNode Start-up Guide
to generate XIF.
>
>
