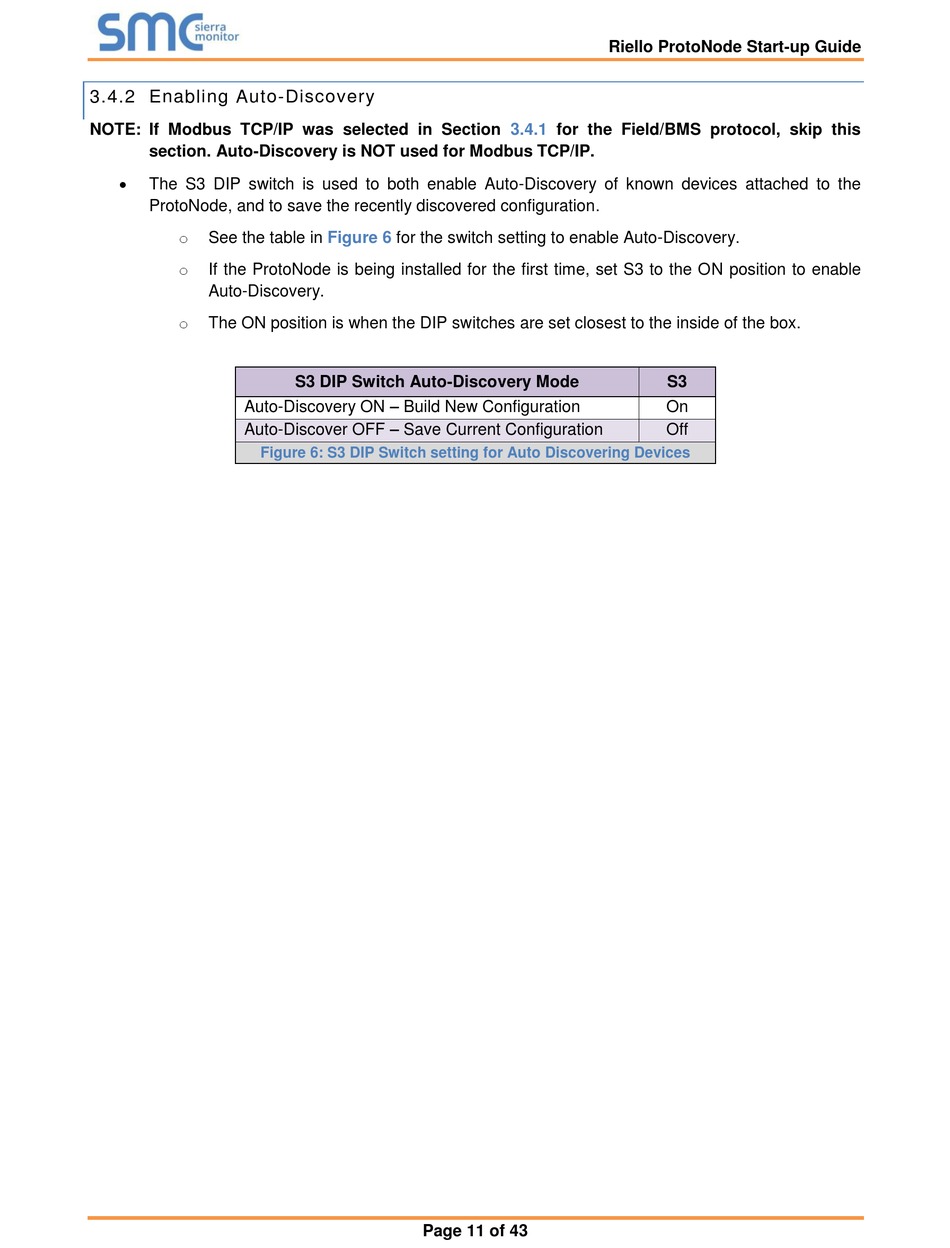

3.4.2 Enabling Auto-Discovery

NOTE: If Modbus TCP/IP was selected in Section
section. Auto-Discovery is NOT used for Modbus TCP/IP.

The S3 DIP switch is used to both enable Auto-Discovery of known devices attached to the
ProtoNode, and to save the recently discovered configuration.
o
See the table in
o
If the ProtoNode is being installed for the first time, set S3 to the ON position to enable
Auto-Discovery.
o
The ON position is when the DIP switches are set closest to the inside of the box.
Auto-Discovery ON – Build New Configuration
Auto-Discover OFF – Save Current Configuration

Figure 6: S3 DIP Switch setting for Auto Discovering Devices

Figure 6 for the switch setting to enable Auto-Discovery.
S3 DIP Switch Auto-Discovery Mode
Page 11 of 43
Riello ProtoNode Start-up Guide
3.4.1 for the Field/BMS protocol, skip this
S3
On
Off
