5

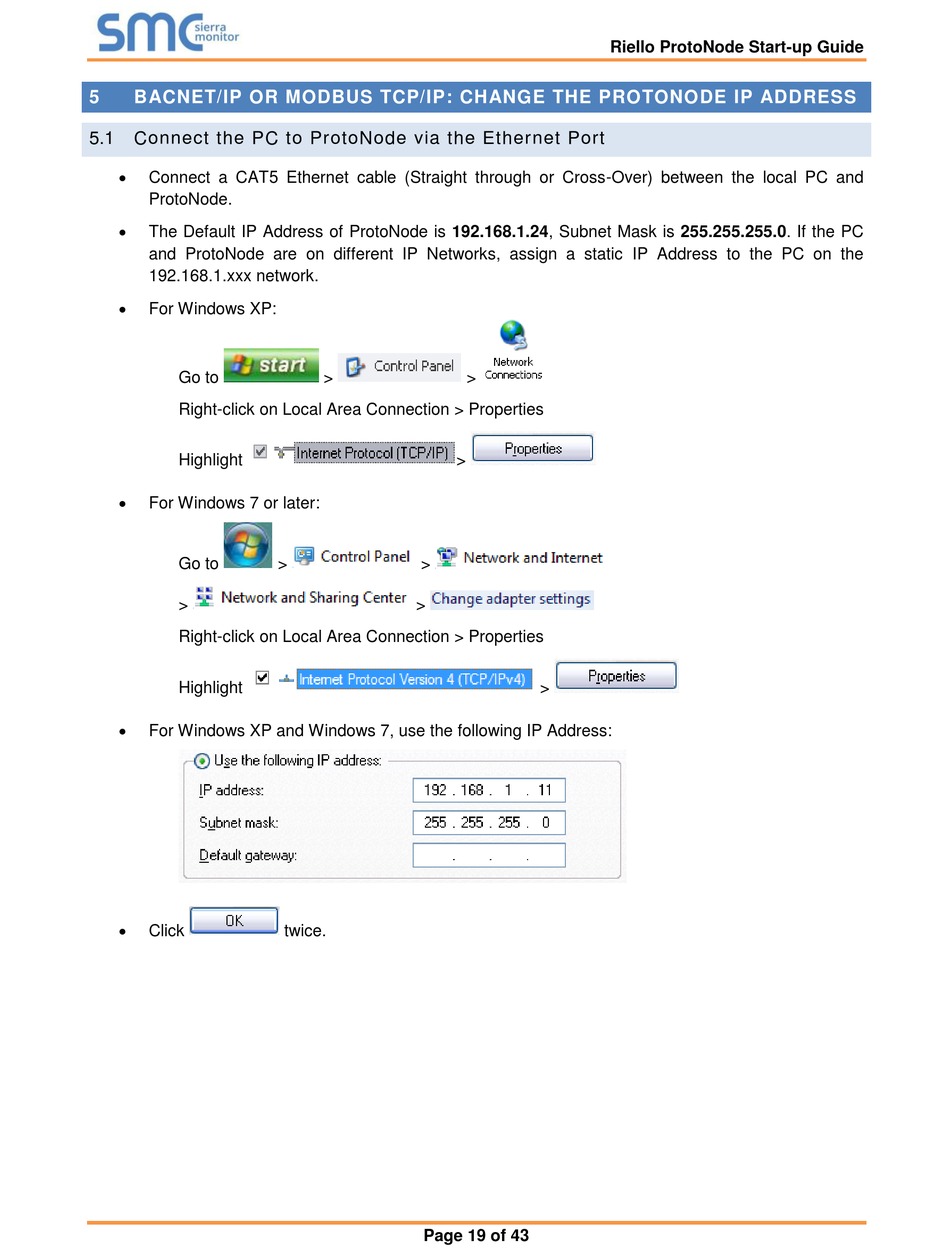

BACNET/IP OR MODBUS TCP/IP: CHANGE THE PROTONODE IP ADDRESS
5.1
Connect the PC to ProtoNode via the Ethernet Port
Connect a CAT5 Ethernet cable (Straight through or Cross-Over) between the local PC and
ProtoNode.
The Default IP Address of ProtoNode is 192.168.1.24, Subnet Mask is 255.255.255.0. If the PC
and ProtoNode are on different IP Networks, assign a static IP Address to the PC on the
192.168.1.xxx network.
For Windows XP:
Go to
Right-click on Local Area Connection > Properties
Highlight
For Windows 7 or later:
Go to
>
Right-click on Local Area Connection > Properties
Highlight
For Windows XP and Windows 7, use the following IP Address:
Click
>
>
>
>
>
twice.
Page 19 of 43
Riello ProtoNode Start-up Guide
>
>
