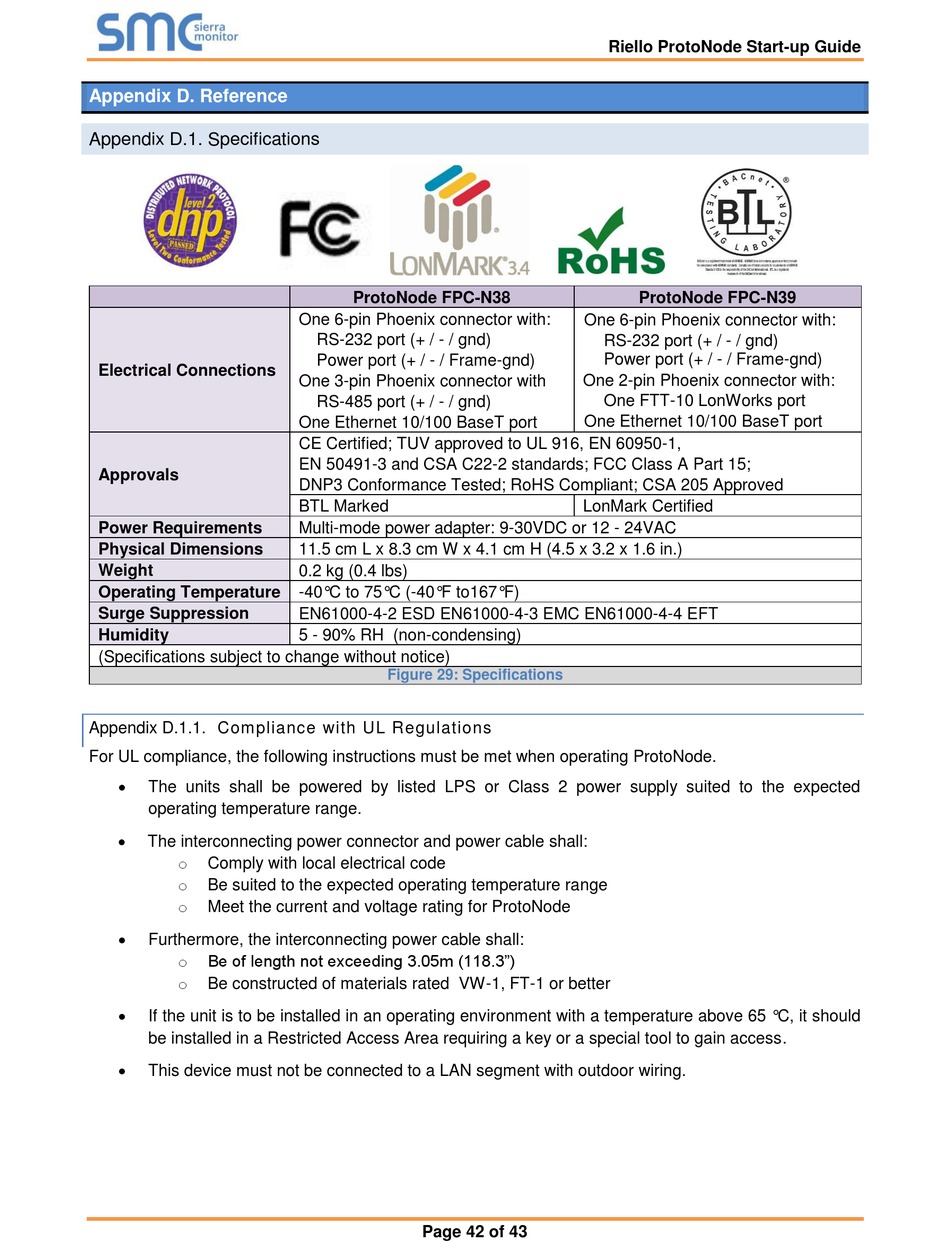

Appendix D. Reference

Appendix D.1. Specifications

Electrical Connections
Approvals
Power Requirements
Physical Dimensions
Weight
Operating Temperature
Surge Suppression
Humidity
(Specifications subject to change without notice)

Appendix D.1.1. Compliance with UL Regulations

For UL compliance, the following instructions must be met when operating ProtoNode.

The units shall be powered by listed LPS or Class 2 power supply suited to the expected
operating temperature range.

The interconnecting power connector and power cable shall:
o
Comply with local electrical code
o
Be suited to the expected operating temperature range
o
Meet the current and voltage rating for ProtoNode

Furthermore, the interconnecting power cable shall:
Be of length not exceeding 3.05m (118.3")
o
o
Be constructed of materials rated VW-1, FT-1 or better

If the unit is to be installed in an operating environment with a temperature above 65 °C, it should
be installed in a Restricted Access Area requiring a key or a special tool to gain access.

This device must not be connected to a LAN segment with outdoor wiring.
ProtoNode FPC-N38
One 6-pin Phoenix connector with:
RS-232 port (+ / - / gnd)
Power port (+ / - / Frame-gnd)
One 3-pin Phoenix connector with
RS-485 port (+ / - / gnd)
One Ethernet 10/100 BaseT port
CE Certified; TUV approved to UL 916, EN 60950-1,
EN 50491-3 and CSA C22-2 standards; FCC Class A Part 15;
DNP3 Conformance Tested; RoHS Compliant; CSA 205 Approved
BTL Marked
Multi-mode power adapter: 9-30VDC or 12 - 24VAC
11.5 cm L x 8.3 cm W x 4.1 cm H (4.5 x 3.2 x 1.6 in.)
0.2 kg (0.4 lbs)
-40°C to 75°C (-40°F to167°F)
EN61000-4-2 ESD EN61000-4-3 EMC EN61000-4-4 EFT
5 - 90% RH (non-condensing)

Figure 29: Specifications

Page 42 of 43
Riello ProtoNode Start-up Guide
ProtoNode FPC-N39
One 6-pin Phoenix connector with:
RS-232 port (+ / - / gnd)
Power port (+ / - / Frame-gnd)
One 2-pin Phoenix connector with:
One FTT-10 LonWorks port
One Ethernet 10/100 BaseT port
LonMark Certified
