12.3 Armrests
Surgical armrest
User's manual

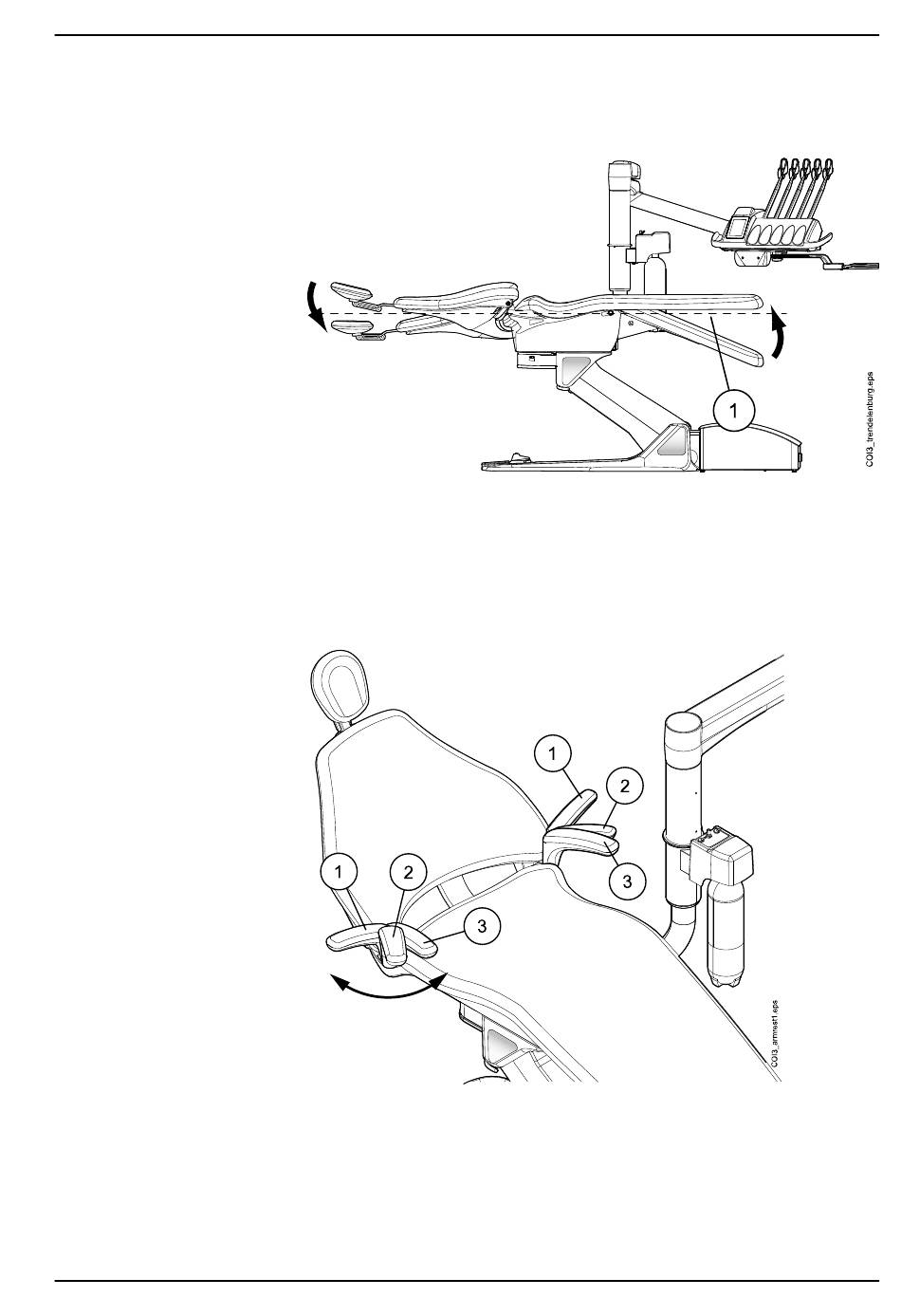

To drive the patient chair to the Trendelenburg position, first drive the chair
to horizontal position, lock the legrest manually by moving the lever
underneath the legrest to the left, and press the Backrest down button until
the backrest reaches a position of -4°.
1. Horizontal position
The right armrest can be moved 90° outwards. Before you move the armrest
horizontally you must lift it slightly to unlock it. The armrest can be locked
into the positions 1 and 3 presented below. The armrest can be removed
when it is in position 2.
As an option, a surgical armrest is available. The patient's arm can be
strapped to the armrest when, for example, infusing saline solution.
12 Patient chair
Planmeca Compact i3 47
