ADS131E08EVM Overview
1.4
ADS131E08EVM Hardware
Figure 2
shows the hardware included in the ADS131E08EVM kit. Contact the factory at
if any component is missing. Also, it is highly recommended that you check the TI website at
http://www.ti.com
to verify that you have the latest software.
The complete kit includes the following items:
•
ADS131E08EVM printed-circuit board (PCB)
•
MMB0 (modular EVM motherboard)
An external power supply is required to power the MMB0 board. Any supply used to power the MMB0
board through the jack located at J2 must comply with the following requirements:
•
Output voltage: 5.5 VDC to 15 VDC
•
Maximum output current: ≥ 500 mA
•
Output connector: barrel plug (positive center), 2.5-mm I.D. x 5.5-mm O.D. (9-mm insertion depth)
•
Complies with applicable regional safety standards
4
Performance Demonstration Kit for the ADS131E08

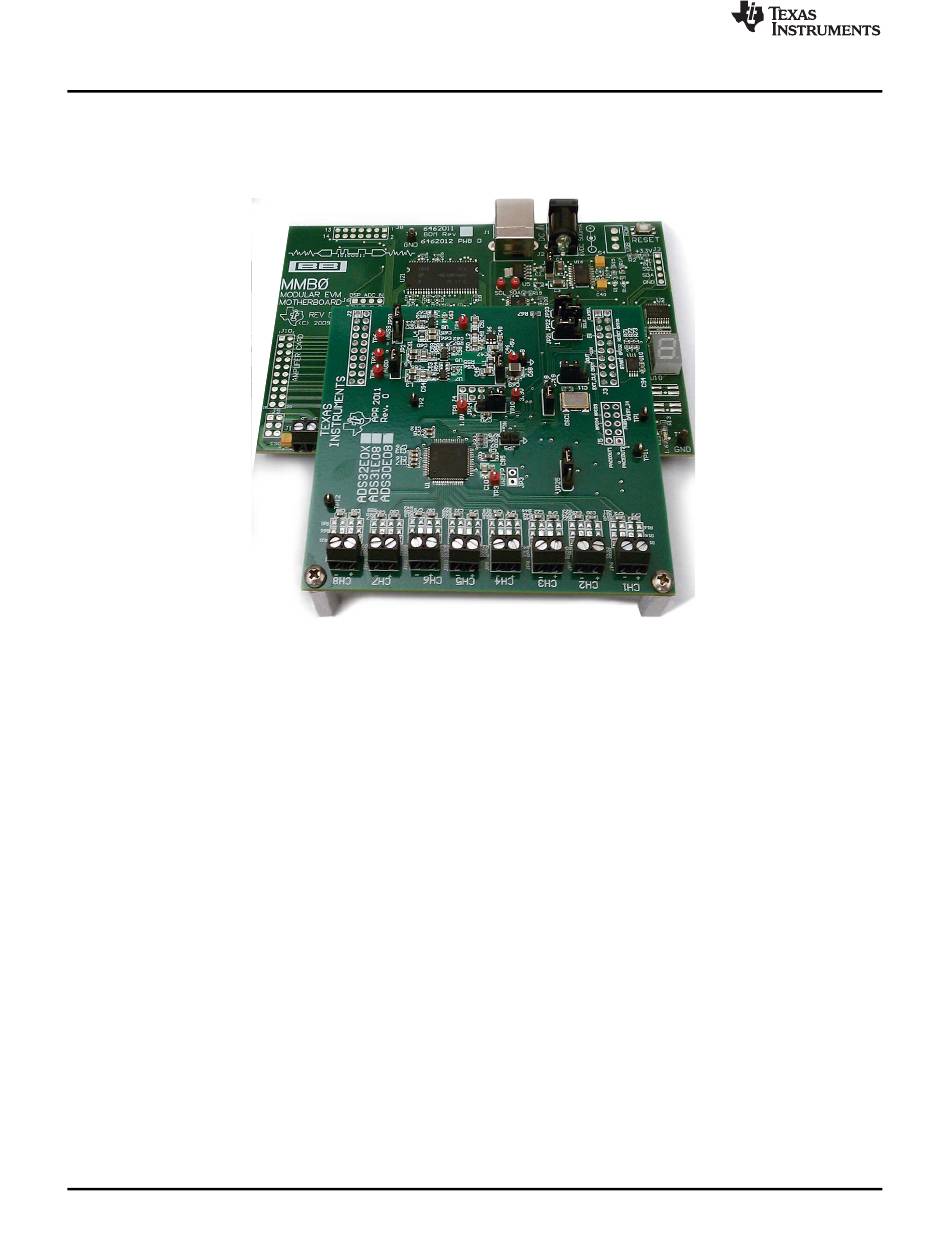

Figure 2. ADS131E08EVM-PDK Kit
