Histogram Bins; Statistics For The Signal Amplitude Of Eight Channels - Texas Instruments ADS131E08EVM-PDK User Manual

ADS131E08 Analysis Tools
5.2 Histogram Tool

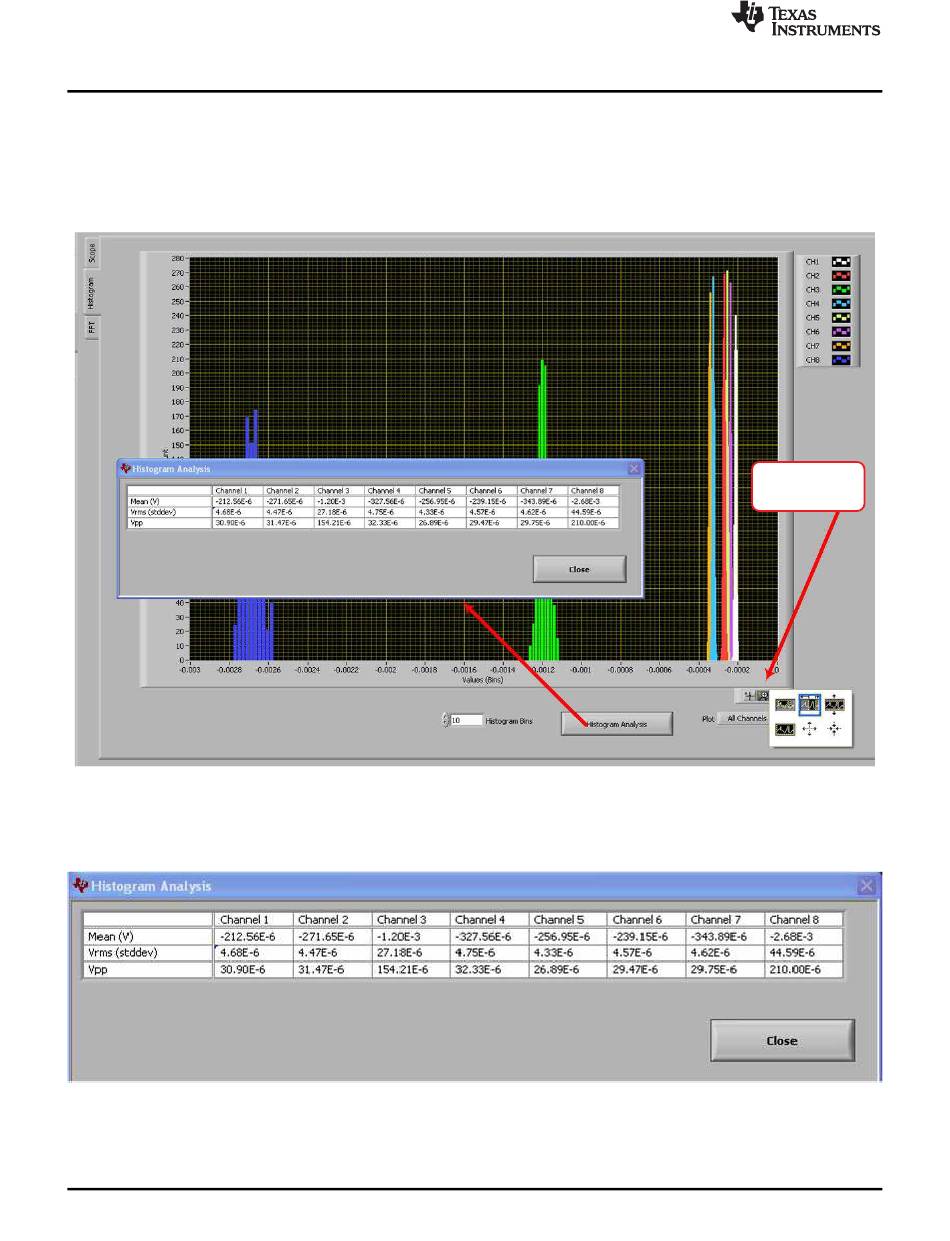

The Histogram subtab displays the data in a histogram format for the eight channels. The data set is
arranged in the total number of histogram bins set within the tab following acquisition. The screen shot
shown in Figure 25
analysis shown in the previous section may be used on the histogram plots for a more detailed
examination of the amplitude bins.
The Histogram Analysis button can be used to view the mean voltage, standard deviation used for the
RMS voltage, and peak-to-peak voltage for analysis, as shown in
Figure 26. Statistics for the Signal Amplitude of Eight Channels
24
Performance Demonstration Kit for the ADS131E08
illustrates the histogram output for an input shorted signal. The same signal-zoom
Figure 25. Histogram Bins
