Fault Status Indicator - Texas Instruments ADS131E08EVM-PDK User Manual

Using the Software
4.7 Fault Status Registers (FAULT_STATP and FAULT_STAIN)
The Fault Status registers store the status of whether the positive and/or negative input on each channel
has a fault. This is a convenient feature to help pinpoint if any of the inputs are out of range. The GUI for
this feature is enabled by clicking in the upper right-hand corner of the EVM software on the Show/Poll
Fault Status button, as shown in
20
Performance Demonstration Kit for the ADS131E08
Figure 20.

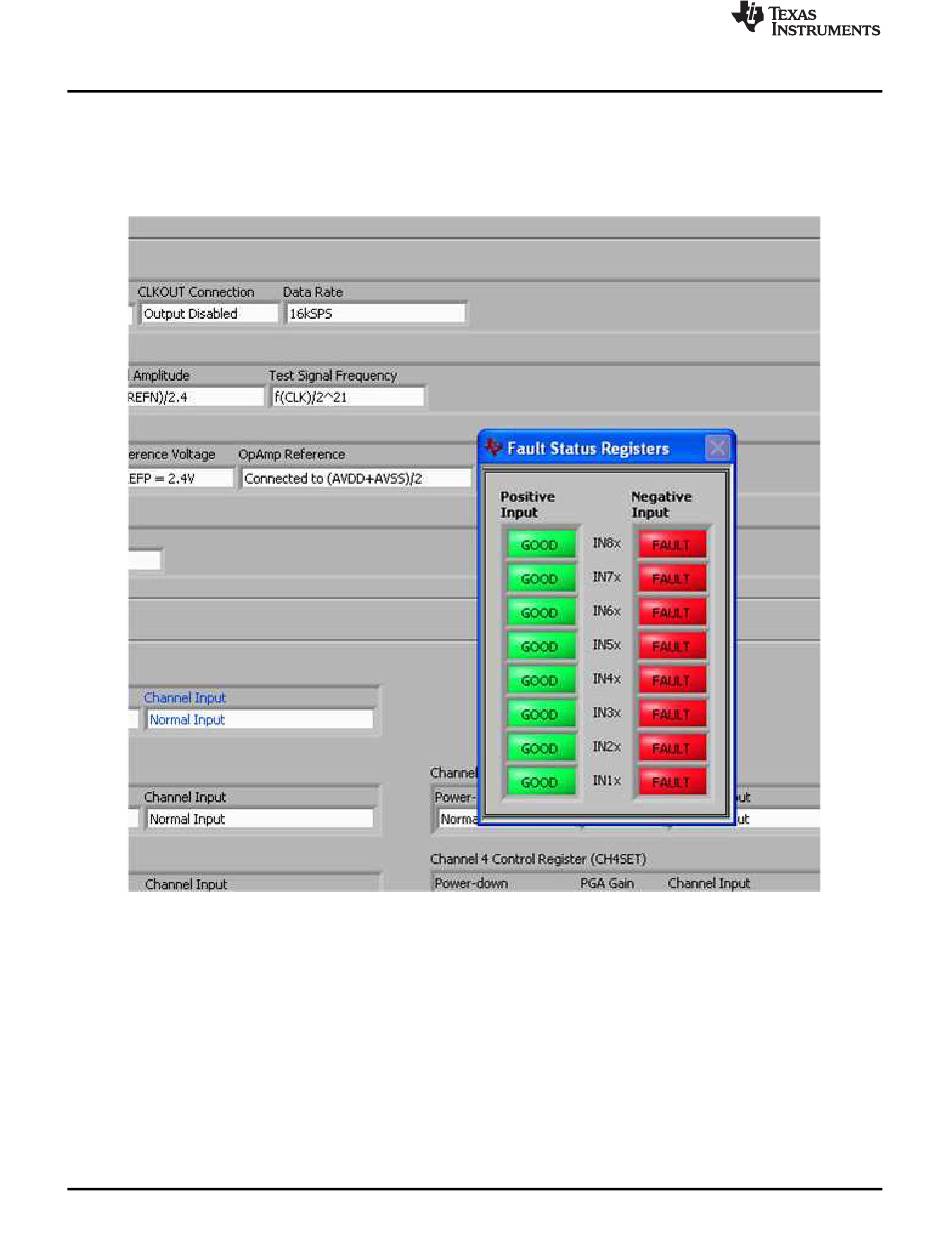

Figure 20. Fault Status Indicator
