ADS131E08 Analysis Tools

5 ADS131E08 Analysis Tools
Under the Analysis tab in the ADS131E08 GUI software, there are three different analysis tools available
that enable a detailed examination of the signals selected by the front-end mux:
• Scope
• Histogram
• FFT
5.1 Scope Tool
The Scope tool, available under the Analysis tab, is a very useful means of examining the data results in
the time domain. Users can decide if they would like their data displayed as input-referred or not, as well
as review the details of the converted data to ensure that the data meets expectations.
the scope tool features.
22
Performance Demonstration Kit for the ADS131E08

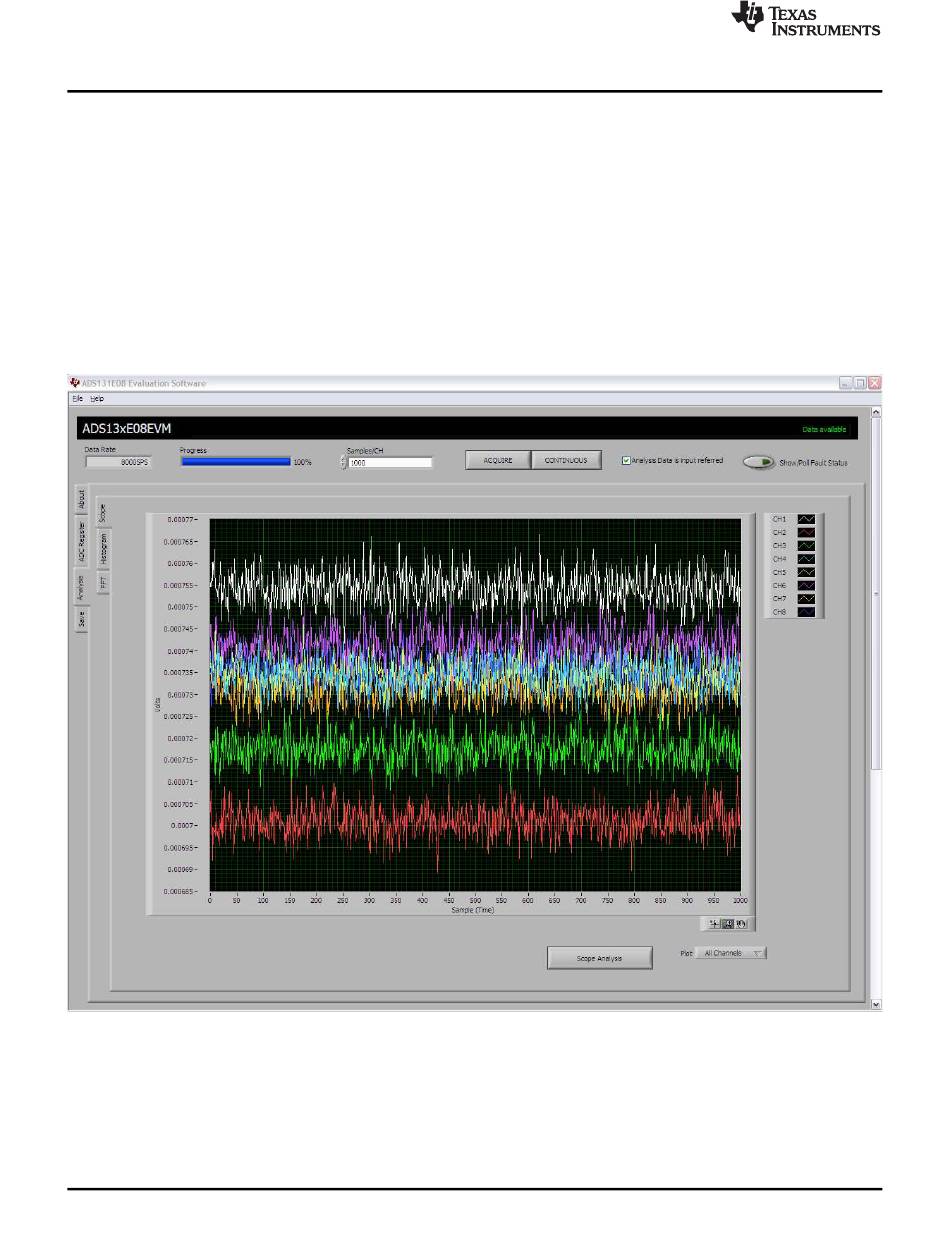

Figure 22. Scope Tool Features
Copyright © 2012–2020, Texas Instruments Incorporated
Figure 22
SBAU200C – June 2012 – Revised April 2020
Submit Documentation Feedback
www.ti.com
shows
