Using the Software

4 Using the Software
The software GUI contains a Save to File feature (located in the Save tab) that allows all data from any
combination of channels, along with notes to describe the data, to be saved to a specified directory. This
data can then be read back using a text editor. Saving the data in this format can be completed by clicking
the Save to File button, as shown in
An additional option in the evaluation software allows register configurations to be saved to a file that can
be reloaded to the GUI. To create a configuration file with all of the stored register settings, use the Save
Configuration Settings option, found in the File menu at the top left-hand corner of the GUI. This
configuration file can be reloaded to the GUI using the Load Configuration Settings option found in the
same File menu.

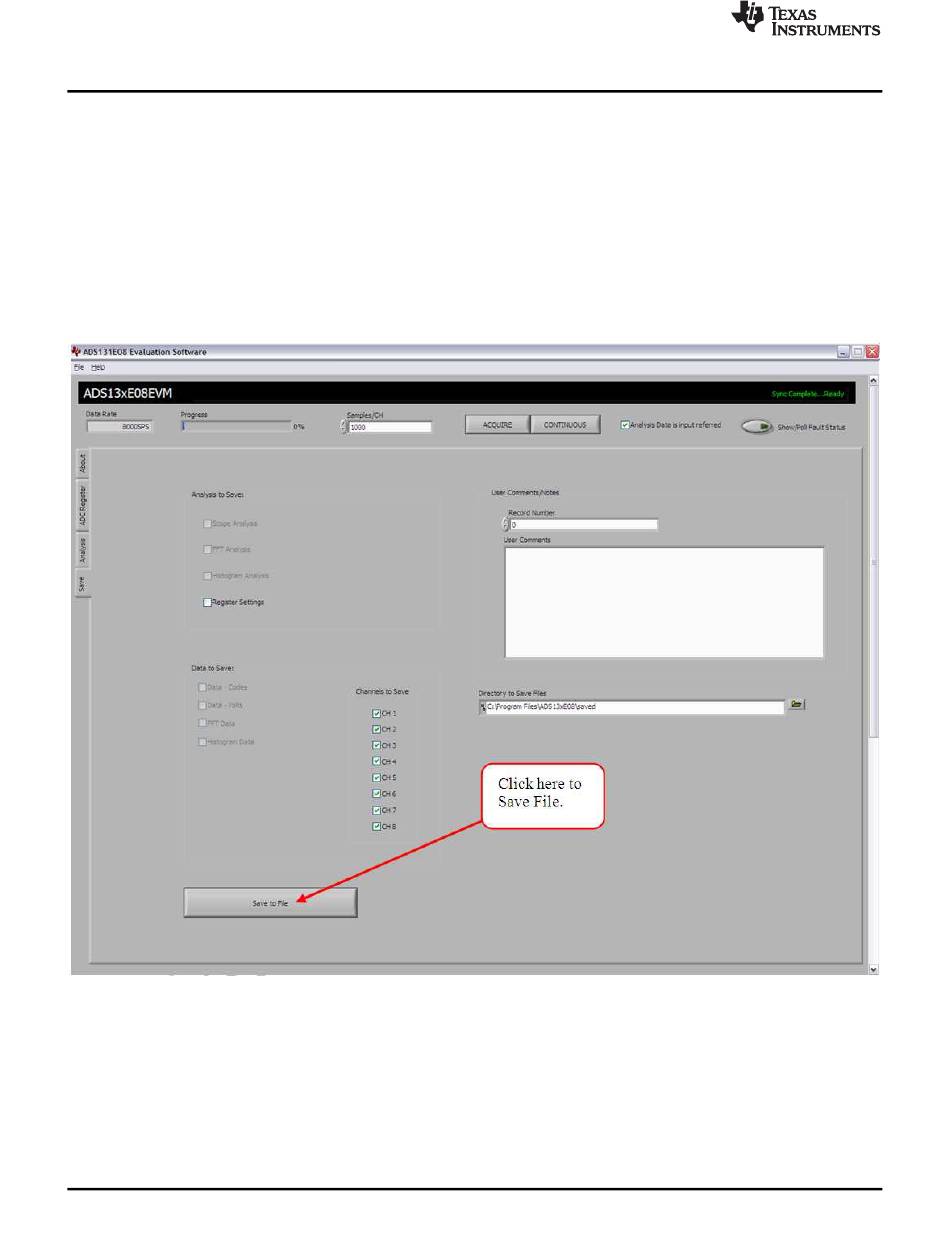

Figure 12 shows the options available in the Save tab.
14
Performance Demonstration Kit for the ADS131E08
Figure 12.
Figure 12. File Save Option Under Save Tab
