4.4 Internal Test Signals Input and the Scope Display Tab
Configuration Register 2 controls the signal amplitude and frequency of an internally-generated square
wave test signal. The primary purpose of this test signal is to verify the functionality of the front-end mux,
the programmable gain amplifier (PGA), and the ADC. The test signals may be viewed on the
Analysis→Scope Display tab, as

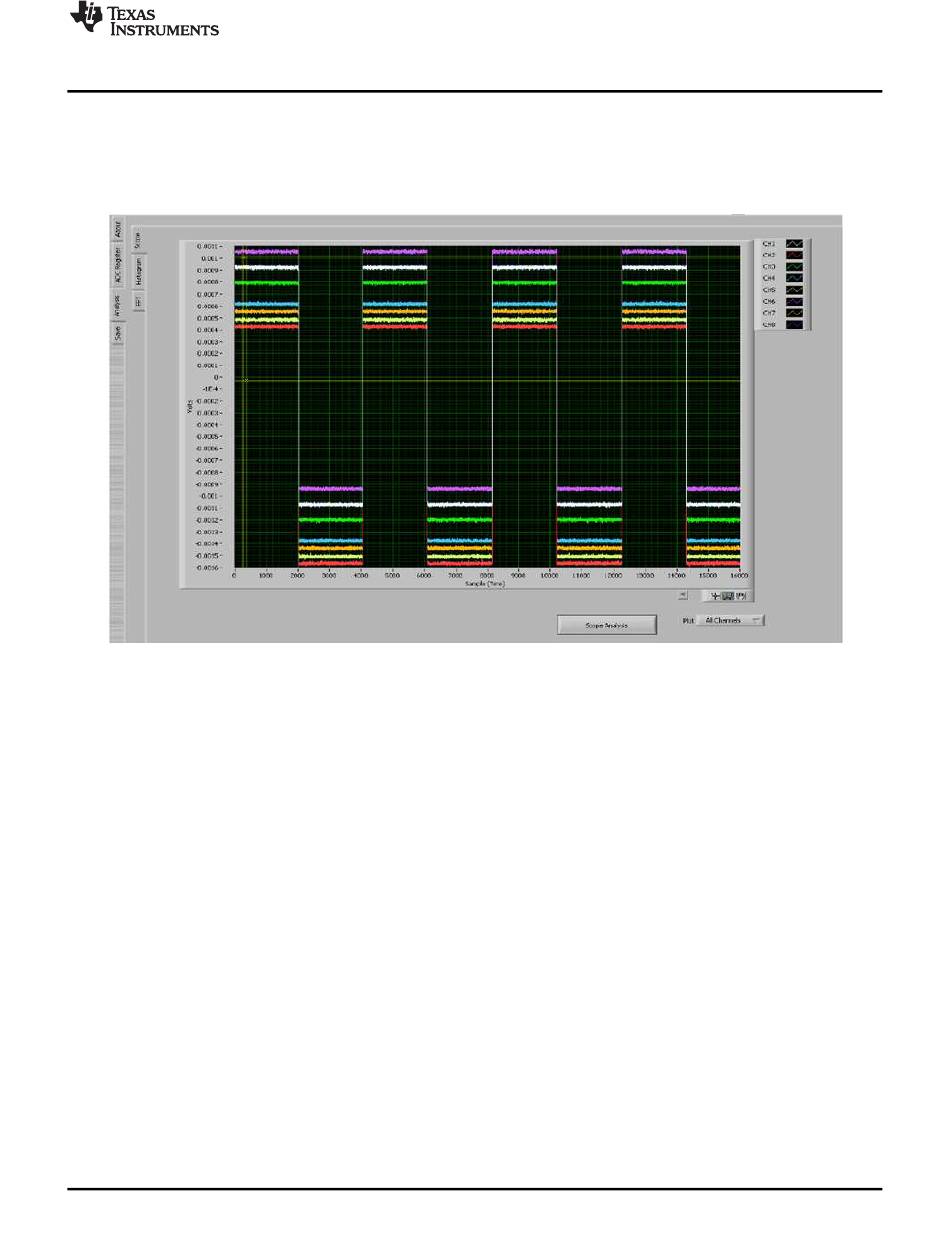

Figure 16. Example of Internal Test Signals Viewed on the Scope Display Tab
SBAU200C – June 2012 – Revised April 2020
Submit Documentation Feedback
Figure 16 shows.
