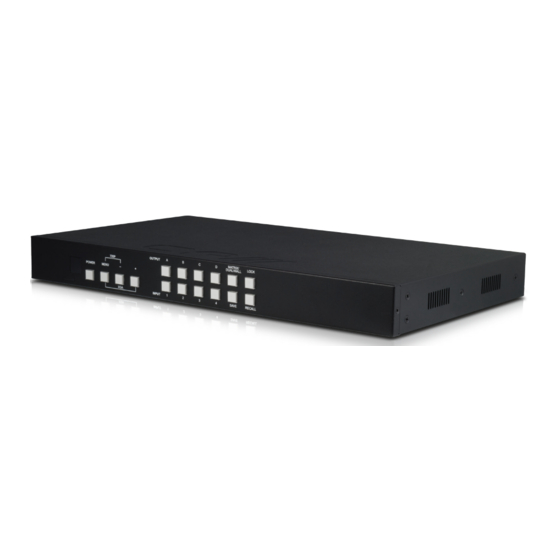

CYP OR-44VWC Operation Manual

4x4 video wall control matrix
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
OR-44VWC
4x4 Video Wall Control Matrix
OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OR-44VWC and is the answer not in the manual?

Questions and answers

Related Manuals for CYP OR-44VWC

Summary of Contents for CYP OR-44VWC

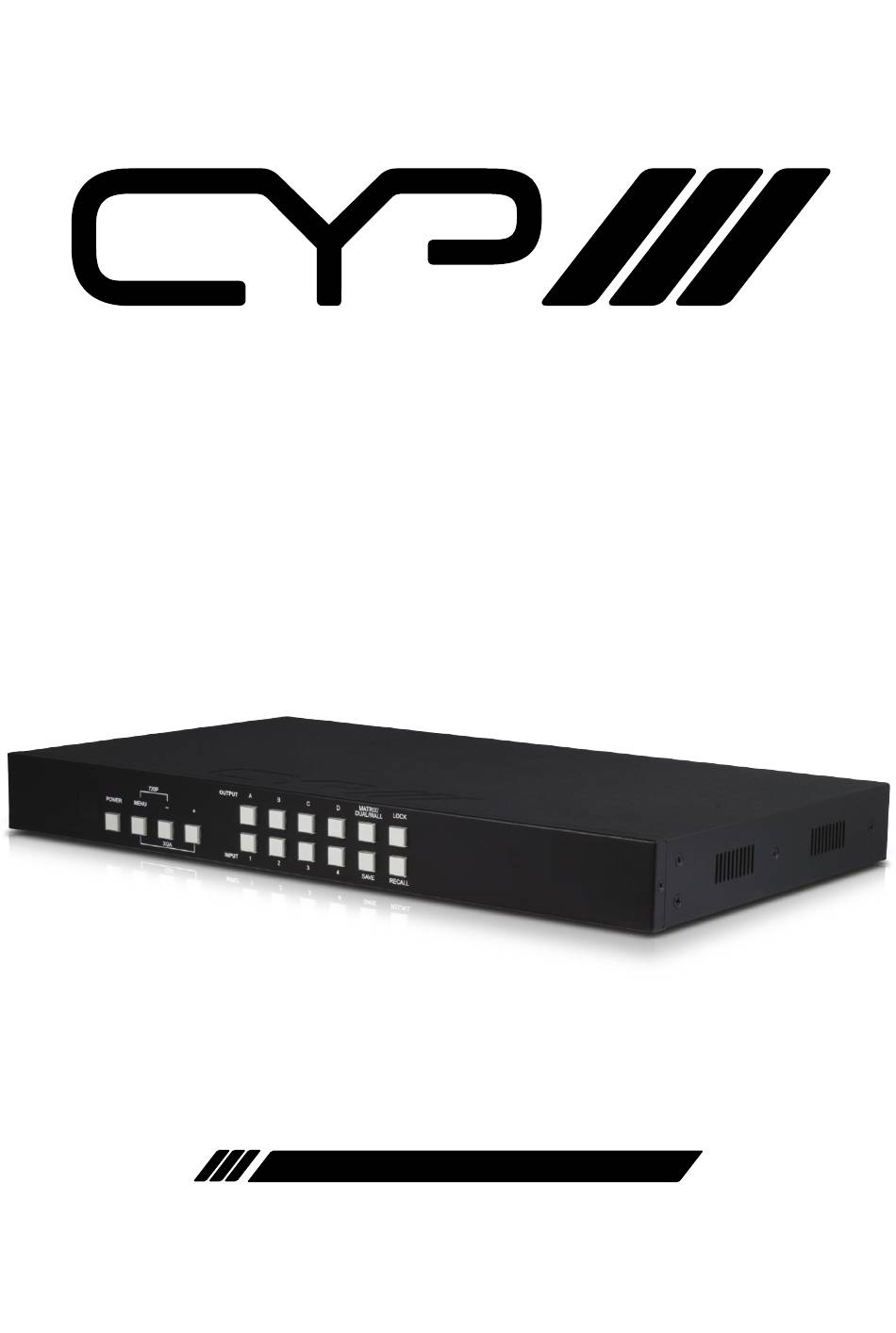

  • Page 1 OR-44VWC 4x4 Video Wall Control Matrix OPERATION MANUAL...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Front Panel ........... 8 6.2 Rear Panel ...........10 6.3 Remote Control ........11 6.4 Remote Control Dip Switch ....12 6.5 RS-232 Protocols ........12 6.6 RS-232 &...

  • Page 6: Introduction

    1. INTRODUCTION The OR-44VWC is an advanced HDMI seamless matrix switcher that can be easily configured and controlled for three different output modes (Matrix, Dual, and Video Wall) for a variety of install applications. Matrix mode routes the source signals to output displays as a regular matrix does, allowing the user to send any source content to any screen independently.

  • Page 7: Features

    5. FEATURES Seamlessly switches any input signal to any output display, supporting full HDMI Matrix functionalities Supports 8/10/12 bit Deep Colour Selects 2 input signals to be simultaneously displayed on 2 grouped HDMI displays (Dual A and Dual B) featuring POP (Picture On Picture) Displays any input signal on a 2x2 Video Wall as a full image, with Bezel Correction Control via IR (Remote), RS-232 or IP (Telnet), on-panel buttons or OSD...

  • Page 8: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel MATRIX/ LOCK OUTPUT DUAL/WALL 720P POWER MENU INPUT SAVE RECALL 9 10 IR Window: Accepts the IR signal from the supplied remote control. Power: Press to turn the unit ON or to put it into standby mode. Factory default: Press and hold the Power while connecting the power supply to reset the system to the default settings.
  • Page 9 then press the button for input 2, output "A" will display the video from input 2 on the right side of the screen. The video image will be identical for both output A and B. iii.Dual Group A are outputs A and B combined, Dual group B are outputs C and D combined.

  • Page 10: Rear Panel

    6.2 Rear Panel HDMI IN HDMI OUT CONTROL RS232 DC 12V SERVICE ONLY HDMI IN 1~4: Connect to HDMI source devices such as DVD/Blu-ray players or PCs/ Laptops. HDMI OUT 1~4: Connect with HDMI equipped displays such as HDTVs/Monitors. Control: Connect to an active network for telnet control (Please refer to Section 6.6 for RS-232/Telnet).

  • Page 11: Remote Control

    6.3 Remote Control Info Power Power: Press to turn the unit ON or to put it into standby mode. Out A In 1 Matrix Out B In 2 Dual Info: Press this button to show the device’s firmware version. Out C In 3 TV Wall Out A~D and In 1~4: Press output A~D and...

  • Page 12: Remote Control Dip Switch

    6.4 Remote Control Dip Switch Open the Remote control back cover to adjust the dip-switch settings (ON/ OFF) to match the IR address setting in the OSD menu. Default setting is 0. 6.5 RS-232 Protocols OR-44VWC Remote Controller (PC) Assignment Definition ►...

  • Page 13: Rs-232 & Telnet Commands

    6.6 RS-232 & Telnet Commands Commands will be not executed unless followed with a carriage return (0x0D). Commands are case-sensitive. Command Active OR-44VWC Return AUA001 Dual A Audio channel in Left side AUA001 AUA002 Dual A Audio channel in Right side...
  • Page 14 Command Active OR-44VWC Return BEV??? Vertical (V) Bezel correction???=000 ~ BEV??? Maximum BEV998 Check the current Vertical(V) Bezel BEV??? correction Maximum value BEV999 Check the current Vertical(V) Bezel BEV??? correction setting value BRI??? Setting Brightness No response ???=000~100 for matrix mode ???=(000~100)+200*(OUT No.-1) for dual/tv wall mode...
  • Page 15 Command Active OR-44VWC Return Execute OUT??? INP999 Check current INPUT INP??? LCK000 Un-lock LCK000 LCK001 Lock LCK001 LCK999 Check current Lock/un-lock status LCK??? MNE001 OSD Menu EXIT No response MND001 OSD Menu DOWN No response MNL001 OSD Menu LEFT (-)
  • Page 16 Command Active OR-44VWC Return RST002 Picture Reset RST002 SAT??? Setting Saturation No response SAT999 Command setting same as Brightness SAT??? (BRI) SAV??? SAVE FAV. ???=001~004=FAV.1~4 SAV??? VER999 Check firmware version VER??? Example: VER110=V1.1...

  • Page 17: Rs-232 & Telnet Control

    6.7 RS-232 & Telnet control Using PC software or Hyper terminal to configure the setting. This software application can be downloaded from the product website. Simple control panel: Full-function control panel:...

  • Page 18: Telnet Setting

    6.8 Telnet Setting The device can be controlled through Telnet over TCP/IP. Use Port 23 for Telnet communication. The Telnet connection settings can be checked via the OSD menu or via RS-232 commands. 6.9 OSD MENU Main Menu Sub Menu Adjustments Default PICTURE...
  • Page 19 Main Menu Sub Menu Adjustments Default OUTPUT 480p, 576p, 720p50, 720p60 RESOLUTION 720p60, 1080i50(*2), 1080i60, 1080p24, 1080p50, 1080p60, 1024x768, 1280x800, 1280x1024, 1366x768, 1440x900, 1600x900, 1600x1200, 1680x1050, 1920x1200 EXIT AUDIO EDID LPCM 2CH, LPCM LPCM 6CH, (*3) LPCM 8CH, BITSTREAM, EXIT OSD SETTINGS POSITION LEFT T, RIGHT T,...
  • Page 20 Main Menu Sub Menu Adjustments Default HDCP INPUT(*5) ACCEPT, NOT ACCEPT ACCEPT OUTPUT(*6) FOLLOW FOLLOW INPUT, ALWAYS INPUT EXIT BEZEL CORRECTION CORRECTION ON, OFF (*7) H CORRECTION 0 ~ by output resolution V CORRECTION 0 ~ by output resolution EXIT RECALL / SAVE RECALL CANCEL, FAV.1...
  • Page 21 Main Menu Sub Menu Adjustments Default FACTORY DEFAULT YES, NO EXIT EXIT INFORMATION IN/OUT RESOLUTION, (*12) SOURCE HDCP/ AUDIO, OUT MODE, FIRMWARE VER EXIT EXIT Note: *1 Picture: In Matrix mode, the settings for all four pictures are adjusted simultaneously. In Dual/TV Wall mode, the settings for each picture can adjusted individually and the last memory feature is supported individually .
  • Page 22 *6 HDCP OUTPUT: FOLLOW INPUT: If the source has HDCP encryption the output will support HDCP. If the source does not have HDCP encryption the output will not sup- port HDCP. If, when in Dual mode, either input (Left or Right) supports HDCP, the output will be HDCP encrypted.

  • Page 23: Connection Diagram

    7. CONNECTION DIAGRAM HDMI Camera Blu-ray Player Set-top Box Games Console Router HDMI Inputs Smartphone/ Tablet Device HDMI IN HDMI OUT CONTROL RS232 DC 12V SERVICE ONLY Power Supply RS-232 HDMI Output RS-232 Enabled PC/Laptop or Control Device HDTV HDTV HDTV HDTV Screen Configurations...

  • Page 24: Specifications

    8. SPECIFICATIONS 8.1 Technical Specifications Video Bandwidth 225 MHz/6.75 Gbps Input port 4x HDMI (Female type) 1xUSB (Service only) Output port 4 x HDMI (Female type) Power Supply 12V/3A DC (US/EU standards, CE/FCC/UL certified) ESD Protection Human body model: ±8 kV (air-gap discharge) ±4 kV (contact discharge) Dimensions (mm) 432(W) x 172(D) x 44(H)

  • Page 25: Input Support Timing

    8.2 Input Support Timing Support Timing 480i@59 480p@60 576i@50 576p@50 720p@25,30,50,60, 1080i@50,60 1080p@24,25,30,50,60 640x480@60,72,75,85 720x400@70 800x600@56,60,72,75,85 1024x768@60,70,75,85 1152x864@70,75 1280x720@60cvt 1280x768@60RB,60,75 1280x800@60RB,60,75 1280x1024@60,60cvt,75 1360x768@60 1366x768@60RB,60 1400x1050@60RB,60 1440x900@60RB,60,75 1600x900@60RB 1600x1200@60 1680x1050@60RB,60 1920x1200@60RB...

  • Page 26: Output Support Timing

    8.3 Output Support Timing Support Timing 480p60 1024x768@60 576p50 1280x800@60 720p50 1280x1024@60 720p60 1366x768@60 1080i50 (Matrix Mode Only) 1440x900@60 1080i60 (Matrix Mode Only) 1600x900@60RB 1080p24 1600x1200@60 1080p50 1680x1050@60 1080p60 1920x1200@60RB 9. ACRONYMS ACRONYM COMPLETE TERM CAT5e Category 5 Cable CAT6 Category 6 cable Consumer Electronics Control Digital Visual Interface...
  • Page 28 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.00...
