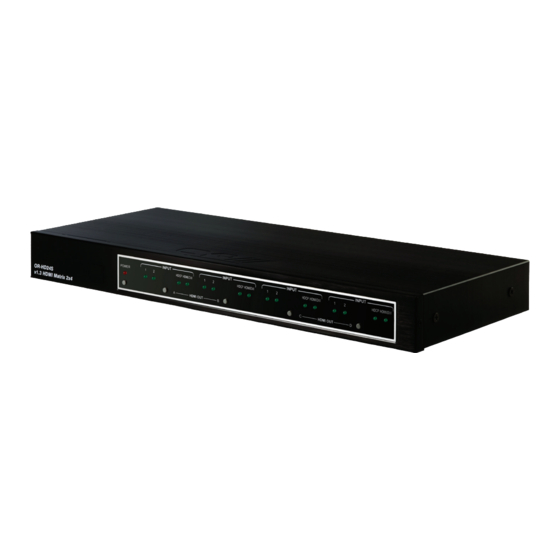

CYP OR-HD24S Operation Manual

CYP OR-HD24S Operation Manual

V1.3 hdmi 2 x 4 matrix switcher

Advertisement

Quick Links

OR-HD24S
v1.3 HDMI 2 x 4 Matrix Switcher
OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OR-HD24S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CYP OR-HD24S

  • Page 1 OR-HD24S v1.3 HDMI 2 x 4 Matrix Switcher OPERATION MANUAL...
  • Page 2 Precautions Failure to follow the precautions described below may cause damage to this v1.3 HDMI Matrix and void the warranty. • DO NOT open the case. This will void the warranty, if you find a problem with this product, please return it to your retailer or seller who will assist you or provide you with a solution.
  • Page 3: Table Of Contents

    Table of Contents Introduction Application Package Contents System Requirements Features Operation Controls and Functions Rear Panel Front Panel Remote Control RS-232 Protocol Command Sets Connection Diagram Specifications Finden Sie ab Seite 9.
  • Page 4: Introduction

    • Switchable EDID function, choose between built in EDID or read the external EDID of connected display. 3. Package Contents • OR-HD24S v1.3 HDMI Matrix. • CR33 Remote Control (with Battery) • IR Receiver • Power Cord • 5V DC power supply adaptor.
  • Page 5: System Requirements

    4. System Requirements HDMI source device(s) and HDMI display device(s). 5. Features • v1.3 HDMI, HDCP 1.1 and DVI 1.0 compliant. • Supports digital video formats in Deep Colour 12bit and new lossless digital audio (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio). •...
  • Page 6: Operation Controls And Functions

    6. Operation Controls and Functions 6.1 Rear Panel RS-232 DC 5V HDMI OUTPUT HDMI INPUT EDID 1. EDID Control Switch: EDID Control Switch setting is either: STD(internal) or TV(external)* 2. RS-232 communication port: Connect to the COM (serial) port of your PC or control device for control over settings via RS-232.
  • Page 7: Front Panel

    6.2 Front Panel POWER HDCP HDMI/DVI HDCP HDMI/DVI HDCP HDMI/DVI HDCP HDMI/DVI HDMI OUT HDMI OUT 6 7 8 1. Remote control sensor 2. Power switch & LED indicator: Press the button to turn the unit on/off, the LED lights green when power is on and red when the power is off. 3.
  • Page 8: Remote Control

    7. Remote Control 1. Power: Press to turn the unit on/off. POWER 2. Input Select for HDMI OUT ‘A’: Press 1, or 2, to select the desired input source for OUTPUT HDMI OUT A. 3. Input Select for HDMI OUT ‘B’: Press 1, or OUTPUT 2 to select the desired input source for HDMI OUT B.
  • Page 9: Rs-232 Protocol

    8. RS-232 Protocol OR-HD24S Remote Control Console Definition Definition → ← Baud Rate: 9600bps Data bit: 8bits Parity: None Stop bit: 1bit Flow Control: None Page 6...
  • Page 10: Command Sets

    8.1 Command Sets COMMAND ACTION POWER 00 Power Off (standby) POWER 01 Power On PORT 11 Output A select Input 1 PORT 12 Output A select Input 2 PORT 13 (No Function) Output A select Input 3 PORT 14 (No Function) Output A select Input 4 PORT 21 Output B select Input 1...
  • Page 11: Connection Diagram

    9. Connection Diagram Page 8...
  • Page 12: Specifications

    10. Specifications Frequency bandwidth 2.25Gbps (single link) Input ports 2 x HDMI female ports, Output ports 4 x HDMI female ports EDID Standard, TV/Moving Port 1 HDMI Audio output PCM2, PCM5.1, PCM7.1, Dolby5.1, DTS5.1, DD+, D-TrueHD, DTS-HD HDMI Cable in 1080p 8bit (10M), 1080p 12bit (10M) HDMI Cable out 1080p 8bit (10M), 1080p 12bit (6M)
  • Page 13 Notes: Page 10...
  • Page 14 www.cypeurope.com...
