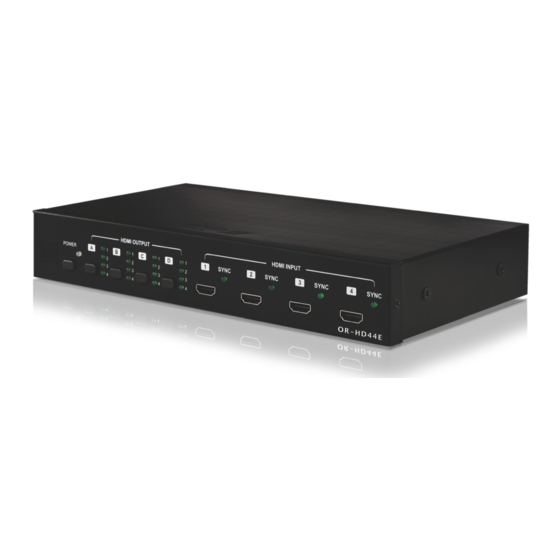

- Page 1 OR-HD44E 4 by 4 HDMI V1.3 Matrix Operation Manual OR-HD44E...
- Page 2 Revision History Version No. Date Summary of Change v1.01 12/03/13 Updated RS-232 Strings v1.02 19/04/13 Changed RS-232 Baud Rate Precautions Failure to follow the precautions described below may cause damage to HDMI 1.3 Matrix Box and void the warranty. DO NOT open the case. Doing so will void the warranty. If you find ...
-
Page 3: Table Of Contents
Table of Contents 1. Introduction..……………………..…………………........ 2. Applications......…..….…………………………………..… 3. Package Contents......……………………………….……. 4. System Requirements......……………………………..…… 5. Features........…..…………………………………...……….. 6. Specifi cations..................7. Installation......…………………………………...………….. 7.1. Front Panel......…………………………………...………….. 7.2. Rear Panel.......…………………………………...………….. 8. Remote Control.......…..……………………………...………….. 9. RS-232 Protocal.......…………..……………………...………….. 9.1 Commands .....…………………….……………...………….. 10. Connection and Installation.............. -
Page 4: Introduction
1. Introduction While HDMI products are getting more and more popular in the market people usually have more than one HDMI devices and sources in one place. HDMI V1.3 Matrix provides the excellent solution for connecting all the devices and sources together for your convenience use, it also provides you a variety of choices on where to play your images with remote controller. -
Page 5: Features
5. Features HDMI 1.3, HDCP 1.1 and DVI 1.0 compliant. Supports digital video formats in Deep Color Mode at up to 36 bits (12bits/ color) and new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) digital audio and LPCM7.1. Supports input source LED indicators on each output select. -
Page 6: Specifi Cations
6. Specifi cations Frequency bandwidth 2.25Gbps (single link) Input ports 4 x HDMI female ports, Output ports 4 x HDMI female ports EDID Standard, TV/Moving Port 1 PCM2, PCM5.1, PCM7.1, Dolby5.1, DTS5.1, DD+ HDMI Audio output TrueHD, DTS-HD HDMI Cable in 1080p 8bit (5M), 1080p 12bit (5M) HDMI Cable out 1080p 8bit (15M), 1080p 12bit (5M) -
Page 7: Installation
7. Installation 7.1 Front Panel HDMI OUTPUT HDMI INPUT POWER SYNC SYNC SYNC SYNC ① ② ③ ④ ⑤ ⑥ ① ② ③ ④ ⑤ ⑥ ① . Remote control sensor. ② . Input Select/Indicators (A): Press the HDMI out “ A ” button repeatedly to switch to your desired source and the LED will illuminate to indicate which input source is being selected and routed to HDMI A output. -
Page 8: Rear Panel
7.2 Rear Panel RS-232 DC 5V HDMI OUTPUT IR IN 8 Bit 12 Bit ① ② ③ ④ ⑤ ⑥ ① . RS-232 communication port: Connect the COM port of your PC for the distant control over RS-232 channel. Detail Specifications in section 8. ②... -
Page 9: Remote Control
HDMI OUT C. 5. Input Select for HDMI OUT D: Press 1, 2, 3 or 4 to select the desired input source for HDMI OUT D. 9. RS-232 Protocal Pin Defi nition OR-HD44E CMLUX-44E Remote Control Console Defi nition Defi nition →... -
Page 10: Commands
9.1 Commands COMMAND ACTION POWER 00 Power Off (standby) POWER 01 Power On PORT 11 Output A select Input1 PORT 12 Output A select Input2 PORT 13 Output A select Input3 PORT 14 Output A select Input4 PORT 21 Output B select Input1 PORT 22 Output B select Input2 PORT 23... -
Page 11: Connection And Installation
10. Connection and Installation Blu-ray HD TV HD TV HD TV HD TV...
