CYP OR-HD88HC Operation Manual

V1.4 hdmi 8 x 8 matrix switcher with simultaneous hdmi & cat outputs
Hide thumbs Also See for OR-HD88HC:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operating Manual

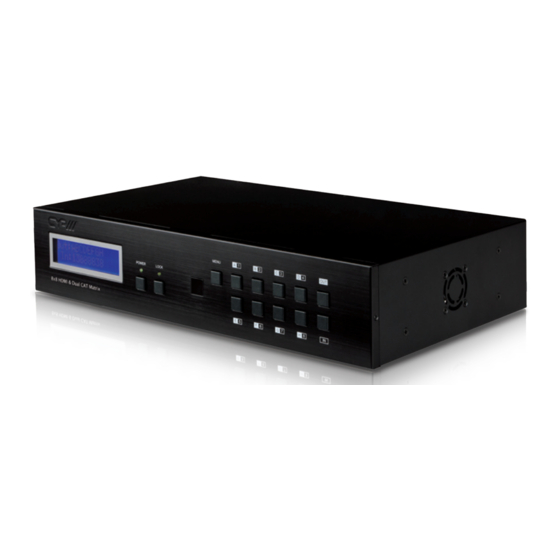

OR-HD88HC
v1.4 HDMI 8 x 8 Matrix Switcher with simultaneous
HDMI & CAT Outputs (inc. IR)
OPERATIONS MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OR-HD88HC and is the answer not in the manual?

Questions and answers

Related Manuals for CYP OR-HD88HC

Summary of Contents for CYP OR-HD88HC

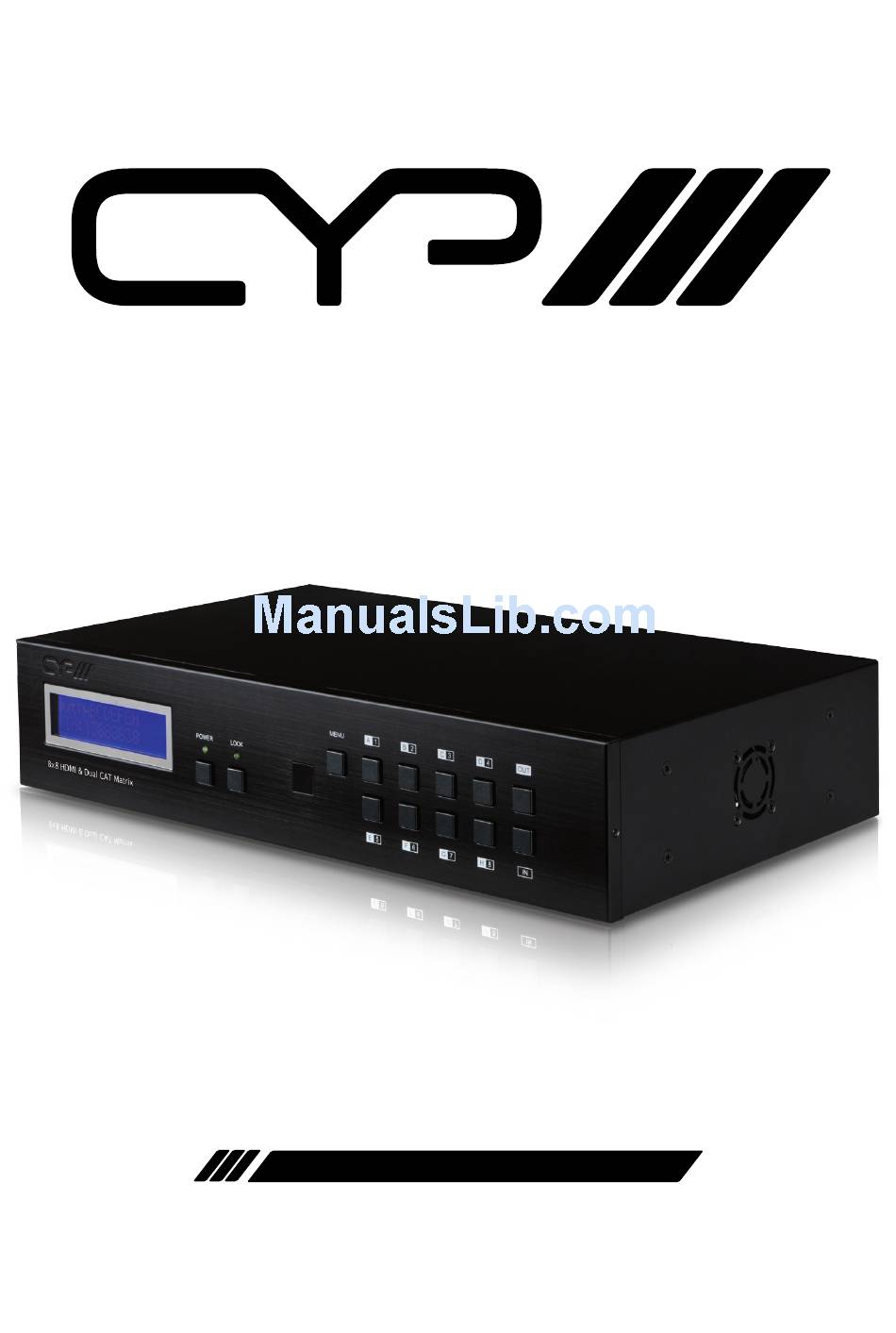

  • Page 1 OR-HD88HC v1.4 HDMI 8 x 8 Matrix Switcher with simultaneous HDMI & CAT Outputs (inc. IR) OPERATIONS MANUAL...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.

  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Front Panel ........... 8 6.2 Rear Panel ............. 9 6.3 Side Panel ...........10 6.4 Remote Control ........10 6.5 IR Cable Pin Assignments .....11 6.6 RS-232 Protocols ........12 6.7 RS-232 Commands ........13...

  • Page 6: Introduction

    1. INTRODUCTION The OR-HD88HC Matrix Switcher connects eight HDMI sources to 16 displays. This matrix features 8 HDMI outputs and each HDMI output is mirrored to provide a Twin CAT output which runs simultaneously. Connect a PU-1106RX Receiver to each of the Twin CAT outputs to extend the HDMI signal up to 45m for multi-room connectivity.This matrix...

  • Page 7: Features

    5. FEATURES HDMI, HDCP 1.1, DVI 1.0 compliant Resolutions supported: PC - VGA to WUXGA ; HDTV - 480i to 1080p plus 1080p24fps High Definition audio supported: Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio + LPCM The HDMI input is compensated, clock / phase adjusted, and jitter eliminated so the output is a brand new standard HDMI signal running up to 15m at 1080p RS-232, CEC Command functionality, IR Remote Control, and IR...

  • Page 8: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel MENU POWER LOCK 8X8 HDMI MATRIX CMSI-8H8HC LCM Display: Displays the setting information of each input and output selection. Power Button LED: Press this button to power the device on/off. The LED will illuminate green when the power is on, red when it is in 'Standby' mode.

  • Page 9: Rear Panel

    6.2 Rear Panel OUTPUT A OUTPUT B OUTPUT C OUTPUT D OUTPUT E OUTPUT F OUTPUT G OUTPUT H HDMI VIDEO HDMI VIDEO HDMI VIDEO HDMI VIDEO HDMI VIDEO HDMI VIDEO HDMI VIDEO HDMI VIDEO IR IN DC 24V HDMI IN HDMI IN HDMI IN HDMI IN...

  • Page 10: Side Panel

    6.3 Side Panel Fan Ventilator: These are air ventilation areas, DO NOT block these areas or cover it with any object. Please allow adequate space around the unit for air circulation 6.4 Remote Control POWER: Press this button to switch on the device or set it to standby mode.

  • Page 11: Ir Cable Pin Assignments

    6.5 IR Cable Pin Assignments IR Blaster Power 5 V IR Blaster Signal IR Receiver IR Signal Power 5 V Grounding...

  • Page 12: Rs-232 Protocols

    6.6 RS-232 Protocols Pin Assignment CMSI-8H8HC Remote Control Console Assignment Assignment Baud Rate: 19200bps Data bit: 8 bits Parity: None Stop Bit: 1 Flow Control: None...

  • Page 13: Rs-232 Commands

    6.7 RS-232 Commands Command Description A1~A8 Switch output A to 1~8 B1~B8 Switch output B to 1~8 C1~C8 Switch output C to 1~8 D1~D8 Switch output D to 1~8 E1~E8 Switch output E to 1~8 F1~F8 Switch output F to 1~8 G1~G8 Switch output G to 1~8 H1~H8...

  • Page 14: Connection Diagram

    7. CONNECTION DIAGRAM ZONE ZONE ZONE ZONE 60° VIDEO VIDEO VIDEO VIDEO CAT6 INPUT CAT6 INPUT CAT6 INPUT CAT6 INPUT OUTPUT A OUTPUT B OUTPUT C OUTPUT D OUTP 60° HDMI VIDEO HDMI VIDEO HDMI VIDEO HDMI VIDEO HDMI IR IN HDMI IN HDMI IN HDMI IN...
  • Page 15 ZONE ZONE ZONE ZONE VIDEO VIDEO VIDEO VIDEO CAT6 INPUT CAT6 INPUT CAT6 INPUT CAT6 INPUT PUT E OUTPUT F OUTPUT G OUTPUT H VIDEO HDMI VIDEO HDMI VIDEO HDMI VIDEO DC 24V HDMI IN HDMI IN HDMI IN ZONE ZONE ZONE ZONE...

  • Page 16: Specifications

    8. SPECIFICATIONS Video Bandwidth 255 MHz/6.75 Gbps Input Ports 8×HDMI, 1×IR Extender, 1×RS-232, 1×Mini USB-B type(for firmware update only) Output Ports 8×Dual CAT6, 8×IR Blaster, 8×HDMI HDMI Input 15M/8-bits, 10M/12-bits Cable Distance HDMI Output 15M/8-bits, 15M/12-bits Cable Distance CAT6 Output 45M/8-bits Cable Distance ESD Protection...

  • Page 17: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM Digital Theater System Digital Visual Interface EDID Extended Display Identification Data HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface HDTV High-Definition Television Liquid Crystal Monitor Universal Serial Bus UXGA Ultra Extended Graphics Array Video Graphics Array...
  • Page 20 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com...
