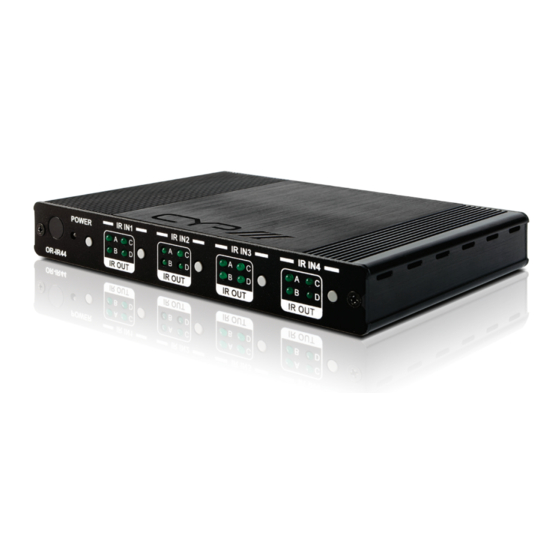

Cyp or-ir44 infrared 4 x 4 matrix
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
OR-IR44
Infrared 4 x 4 Matrix
OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OR-IR44 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CYP OR-IR44

Summary of Contents for CYP OR-IR44

  • Page 1 OR-IR44 Infrared 4 x 4 Matrix OPERATION MANUAL...

  • Page 2: Table Of Contents

    Table of Contents Introduction Features Package Contents Operation Controls and Functions Front Panel Diagram Rear Panel Diagram Remote Control IR Function Chart IR Cable Pin Definitions Connection Diagram Specifications...

  • Page 3: Introduction

    1. Introduction The OR-IR44 infrared matrix is designed for controlling up to four sources from four display locations, using the original source remote controls or universal remote controls. A true matrix design allows any of the four inputs to be routed to any (or all) of the IR outputs giving full independent source to screen control.

  • Page 4: Operation Controls And Functions

    IR OUT IR OUT IR OUT OR-IR44 1. IR sensor: To control the system itself. 2. POWER Button & LED: Press to turn the unit on or again to put it into standby. When the system is on the LED will be green, press again to enter STANDBY mode, the LED will then be red.

  • Page 5: Rear Panel Diagram

    4.2 Rear Panel IR OUT IR IN DC 5V 1. IR OUT ALL: This slot is where you connect the IR blaster cable included in the package. Place it in a way so that all sources and devices are able to receive the infrared signal.

  • Page 6: Remote Control

    4.3 Remote Control 1. Power: Press the button to turn on/ standby the unit. 2. IR IN 1 Select for IR OUT A~D: Press A, B, C or D to select the desired IR out for signal transmission. 3. IR IN 2 Select for IR OUT A~D: Press A, B, C or D to select the desired IR out for signal transmission.

  • Page 7: Ir Function Chart

    4.4 IR Function Chart IR OUT A IR OUT B IR OUT C IR OUT D IR OUT E IR IN 1 ▲ ◎ ◎ ◎ ◎ IR IN 2 ▲ ◎ ◎ ◎ ◎ IR IN 3 ▲ ◎ ◎...

  • Page 8: Connection Diagram

    5. Connection Diagram Page 6...

  • Page 9: Specifications

    6. Specifications IR Frequency 30kHz to 50kHz Input ports 4 x independent IR Blasters; 1 x total IR blaster control 4 x independent IR Receiver; 1 x total IR receiver Output ports control Deep Colour 1080p 12bit HDMI Resolution 480I~1080p 50/60, 1080p 24, VGA~UXGA Power Supply 5VDC/1A (US/EU standards, CE/FCC/UL certified) ±...
  • Page 10 Notes:...
  • Page 11 Notes:...
  • Page 12 www.cypeurope.com...
