CYP OR-32USBC-4K22 Operation Manual

Uhd+ 3x2 matrix switcher with usb ethernet hub
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
OR-32USBC-4K22
UHD
3×2 Matrix Switcher with USB Ethernet Hub
+
OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OR-32USBC-4K22 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CYP OR-32USBC-4K22

Summary of Contents for CYP OR-32USBC-4K22

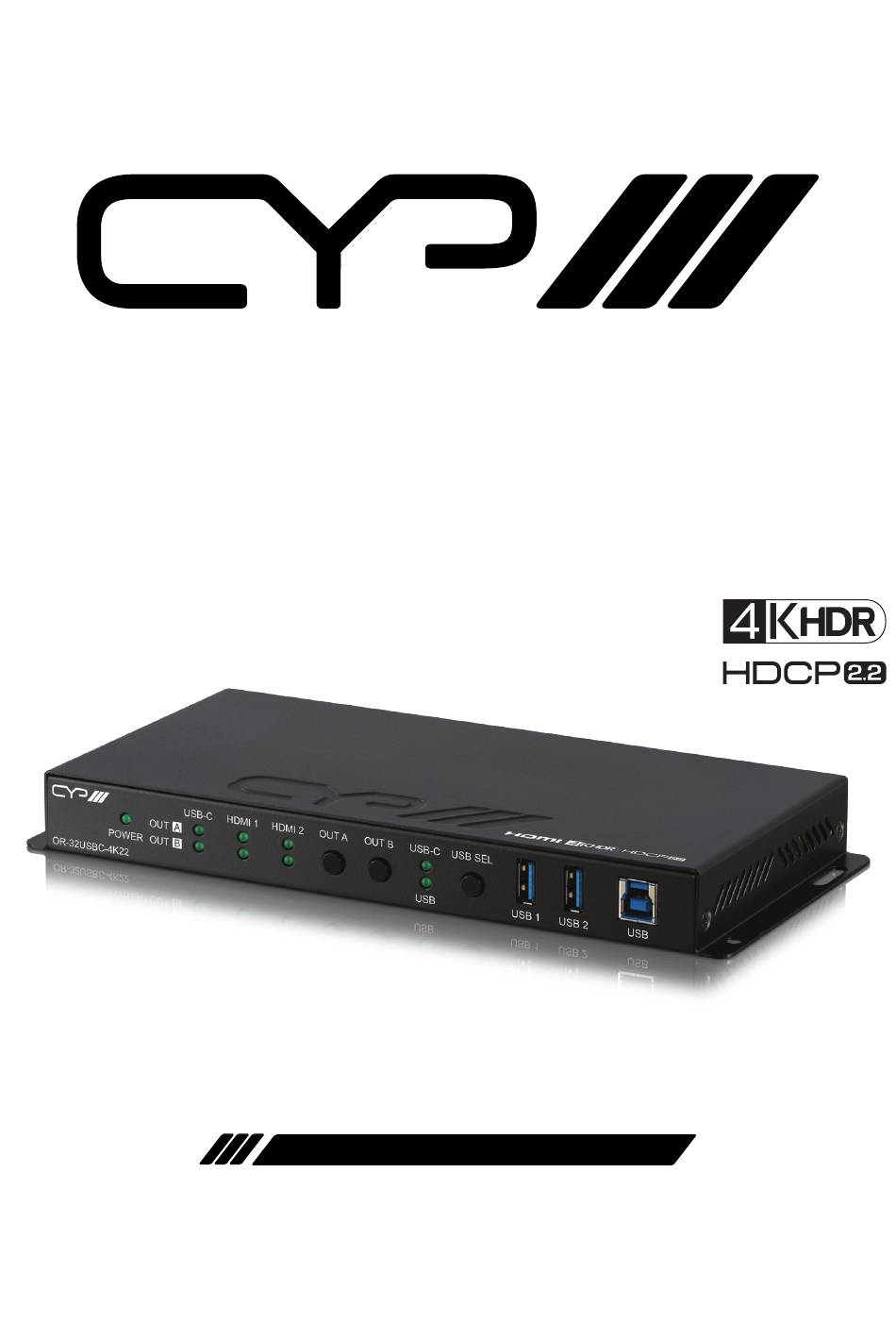

  • Page 1 OR-32USBC-4K22 3×2 Matrix Switcher with USB Ethernet Hub OPERATION MANUAL...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ..............1 2. Applications ..............1 3. Package Contents .............1 4. System Requirements ..........2 5. Features ..............2 6. Operation Controls And Functions......3 6.1 Front Panel ................3 6.2 Rear Panel ................4 6.3 RS-232 Pinouts and Defaults ..........5 6.4 WebGUI Control ..............6 6.4.1 AV Switch Tab ............8 6.4.2 USB Settings Tab ...........

  • Page 6: Introduction

    1. INTRODUCTION This 3×2 matrix switch is designed for use in environments needing a wide range of flexibility when it comes to inputs, outputs, and control. The two most common video input interfaces (HDMI, USB-C) are included along with a pair of HDMI outputs and a single analogue audio breakout port, providing the ultimate in source compatibility and flexibility.

  • Page 7: System Requirements

    4. SYSTEM REQUIREMENTS  HDMI or USB-C source equipment such as media players, video game consoles, laptops, or set-top boxes.  HDMI receiving equipment such as HDTVs, monitors, or audio amplifiers.  The use of Premium High Speed HDMI cables is highly recommended. 5.

  • Page 8: Operation Controls And Functions

    USB SEL POWER USB 1 USB 2 OR-32USBC-4K22 POWER LED: This LED will illuminate to indicate the unit is on and receiving power. OUT A & B LEDs: The illuminated LED indicates which source is currently selected for each output.

  • Page 9: Rear Panel

    6.2 Rear Panel USB-C HDMI 1 HDMI 2 HDMI A HDMI B LINE OUT RS-232 DC 24V USB-C IN Port: Connect to USB Type-C host or video source equipment such as a PC or laptop. When the USB-C port has “Super Speed”...

  • Page 10: Rs-232 Pinouts And Defaults

    6.3 RS-232 Pinouts and Defaults Serial Port Default Settings Baud Rate 19200 Data Bits Parity Bits None Stop Bits Flow Control None RS-232 Port 1 (CTL) RS-232 Port 2 (CLI) Note: The 24 volt pins (pin 1) are included to provide power to a dedicated external control product and should NOT be used when connecting a standard RS-232 device...

  • Page 11: Webgui Control

    6.4 WebGUI Control Device Discovery Please obtain the “Device Discovery” software from your authorised dealer and save it in a directory where you can easily find it. Connect the unit and your PC/Laptop to the same active network and execute the “Device Discovery” software. Click on “Find Devices on Internet”...
  • Page 12 WebGUI Overview After connecting to the WebGUI’s address in a web browser, the login screen will appear. Please enter the appropriate user name and password then click “Submit” to log in. Note: The default user name and password is “admin”. On the left side of the browser you will see the following menu tabs where all primary functions of the unit are controllable via the built in WebGUI.

  • Page 13: Av Switch Tab

    6.4.1 AV Switch Tab This tab provides A/V routing control, HDCP management, auto switch control, analogue audio controls, and I/O renaming options. To assign a A/V route, select one or both output buttons on the left and then click on the button of the preferred input source on the right.
  • Page 14 „ Set Output Name: To rename the output, type the new name in the space provided in the edit window. The name can be up to 32 characters long. Click the “Save” button to confirm the change. „ 4K2K Downscale: Select the 4K to 1080p downscaling behavior for output A.
  • Page 15 6) Analogue Audio Output: Select the audio source for the analogue audio output. Note: Only LPCM 2.0 sources are supported. 7) Analogue Audio Mute: Mute or unmute the analogue audio output.

  • Page 16: Usb Settings Tab

    6.4.2 USB Settings Tab This tab provides control over the settings for the USB ports on the unit. 1) USB Host setting: Enable or disable automatic selection of the USB host port. 2) USB-C Super Speed Selection: Select the operational mode of the USB Type-C port.

  • Page 17: Automation Tab

    6.4.3 Automation Tab This tab provides control over the unit’s automatic control command broadcast behavior when any of the specified Automation Events occur. Automation commands can control connected devices via CEC, RS-232, and Telnet. Note: CEC events are only sent to the device connected to HDMI output A. 1) Event: Use the dropdown to select the Automation Event to configure.
  • Page 18 „ CEC Command: Set the CEC command to send when the specified Automation Event is activated. Click the “Test” button to send the command immediately. Available CEC commands are: - Power Off: Turn off the connected HDMI display device. - Power On: Turn on the connected HDMI display device. - Active Source: Force the connected HDMI display device to switch to the HDMI input that this unit is connected to.
  • Page 19 4) Telnet: Enable or disable sending a Telnet command to the designated IP address when the currently selected Automation Event is activated. Click the “Edit” icon ( ) to configure the target IP address and communication port. If the target Telnet device requires a login to receive commands, those details may be added as well.

  • Page 20: Edid Tab

    6.4.4 EDID Tab This tab provides control over the EDID settings of all inputs. This unit provides the option of six standard EDIDs, two sink sourced EDIDs and three user uploaded EDIDs that can be assigned to one input or all inputs as a group.
  • Page 21 2) Output EDID „ Download: To save the EDID from a connected display to your local PC, select the output from the dropdown list then press the “Download” button. Depending on your browser settings you will either be asked where to save the downloaded file, or the file will be transferred to the default download location on your PC.

  • Page 22: Network Tab

    6.4.5 Network Tab This tab provides network configuration options including changing the IP mode, viewing/setting the IP configuration, changing the admin login password, and changing the Web Login timeout. 1) IP Configuration: IP Mode may be switched between Static IP or DHCP.

  • Page 23: System Tab

    6.4.6 System Tab This tab provides serial number information, system configuration backup/restore/reset, system reboot, and firmware update functions. 1) System Configuration „ Download: The current system configuration, including routing and settings, may be saved as an XML file to a PC. Click the “Download” button to save the current system configuration to your local PC.

  • Page 24: Telnet Control

    6.5 Telnet Control Before attempting to use Telnet control, please ensure that both the unit and the PC are connected to the same active networks. Start your preferred Telnet/Console client, or use the built in client provided by most modern computer operating systems. After starting the client, connect by using the current IP address of the unit and port 23 (if the communication port number used by the unit has not been changed previously).
  • Page 25 COMMAND Description and Parameters get fw ver  Show the unit’s current firmware version. get command ver  Show the unit’s current command version get mac addr  Show the unit’s MAC address. get model name  Show the unit’s model name. get model type ...
  • Page 26 COMMAND Description and Parameters set factory ipconfig default  Reset the unit’s network settings to the factory defaults. set factory out route default  Reset the unit’s routing to the factory defaults. set feedback broadcast N1  Enable or disable the broadcast of console command feedback. Available values for N1: [Enabled] [Disabled]...
  • Page 27 COMMAND Description and Parameters set uart N1 reset  Reset the settings of the specified RS-232 port to the factory defaults. Available values for N1: [CTL port] [CLI port] set uart N1 baudrate N2  Set the baud rate of the specified RS-232 port. Available values for N1: [CTL port] [CLI port]...
  • Page 28 COMMAND Description and Parameters get uart N1 stop bit  Show the current number of stop bits of the specified RS-232 port. Available values for N1: [CTL port] [CLI port] set uart N1 data bit N2  Set the data bits for the specified RS-232 port. Available values for N1: [CTL port] [CLI port]...
  • Page 29 COMMAND Description and Parameters get uart N1 parity  Show the current parity setting of the specified RS-232 port. Available values for N1: [CTL port] [CLI port] set ip mode N1  Set the unit’s IP address assignment mode. Available values for N1: STATIC [Static IP mode] DHCP...
  • Page 30 COMMAND Description and Parameters set static netmask N1  Set the unit’s static netmask. N1 = X.X.X.X [X = 0~255, Netmask] get static netmask  Show the unit’s current static netmask. set static gateway N1  Set the unit’s static gateway address. N1 = X.X.X.X [X = 0~255, Gateway address] get static gateway ...
  • Page 31 COMMAND Description and Parameters get telnet username  Show the current Telnet login username. set telnet password N1  Set the Telnet login password. N1 = {ASCII string} [Telnet password] get webgui login timeout  Show the current WebGUI inactivity timeout value. set in N1 name N2 ...
  • Page 32 COMMAND Description and Parameters get out N1 name  Show the name of the specified output. Available values for N1: [HDMI output A] [HDMI output B] set out N1 route N2  Route the specified input to the specified output. Available values for N1: [HDMI output A] [HDMI output B]...
  • Page 33 COMMAND Description and Parameters get in N1 vactive  Show the vertical active pixel value of the specified input’s current video source. Available values for N1: [USB-C input] [HDMI input 1] [HDMI input 2] get in N1 refresh rate  Show the refresh rate of the specified input’s current video source.
  • Page 34 COMMAND Description and Parameters set in N1 hdcp mode N2  Set the HDCP behavior of the specified input. Available values for N1: [USB-C input] [HDMI input 1] [HDMI input 2] Available values for N2: [HDCP disabled] [Follow source] [Follow display] get in N1 hdcp mode ...
  • Page 35 COMMAND Description and Parameters get out N1 hdcp status  Show the current HDCP status of the specified output. Available values for N1: [HDMI output A] [HDMI output B] Possible response values: [No HDCP] [HDCP 1.x active] [HDCP 2.2 active] get out N1 hdcp ability ...
  • Page 36 COMMAND Description and Parameters set out auto mode N1  Set the auto switching behavior of the unit. Available values for N1: [Auto switching disabled [Auto switching enabled] get out auto mode  Show the current auto switching mode of the unit. get in N1 sync status ...
  • Page 37 COMMAND Description and Parameters set out A 4k2k downscale mode N1  Set the 4K to 1080p downscale behavior used by output A. Available values for N1: [4K pass-through] [Auto mode] [4K to 1080p mode] get out A 4k2k downscale mode  Show the current 4K to 1080p downscale behavior for output A.
  • Page 38 COMMAND Description and Parameters get in N1 edid  Show the EDID currently being used on the specified input. Available values for N1: [USB-C input] [HDMI input 1] [HDMI input 2] get in edid list  List all available EDID selections. set edid N1 name N2 ...
  • Page 39 COMMAND Description and Parameters get sink N1 edid data  Show the EDID from the display connected to the specified output as hex data. Available values for N1: [HDMI output A] [HDMI output B] get in N1 edid data  Show the EDID currently used by the specified input as hex data.
  • Page 40 COMMAND Description and Parameters set all in edid N1  Set the EDID to use when the “All” EDID mode is active. Available values for N1: [FHD/PCM/2CH] [FHD/PCM/MCH] [UHD/PCM/2CH] [UHD/PCM/MCH] [UHD+/PCM/2CH] [UHD+/PCM/MCH] [User EDID 1] [User EDID 2] [User EDID 3] [Output A’s EDID] [Output B’s EDID] get all in edid ...
  • Page 41 COMMAND Description and Parameters get audio out A mute  Show the current mute state of the analogue audio output. set audio out A route N1  Route the specified audio source to the analogue audio output. Available values for N1: [HDMI output A] [HDMI output B] get audio out A route ...
  • Page 42 COMMAND Description and Parameters set automation event N1 uart A N2  Enable or disable the specified Automation Event’s RS-232 response. Available values for N1: [Power on] [Out A source active] [Out A source lost] Available values for N2: [Enable] [Disable] get automation event N1 uart A ...
  • Page 43 COMMAND Description and Parameters get automation event N1 uart A command  Show the RS-232 command string to be sent when the specified Automation Event is activated. Available values for N1: [Power on] [Out A source active] [Out A source lost] set automation event N1 uart A delay N2 ...
  • Page 44 COMMAND Description and Parameters set automation event N1 uart A wait N2  Set the length of time to wait after an Automation Event’s RS-232 response has been activated before ANY other Automation Event can be detected. Available values for N1: [Power on] [Out A source active] [Out A source lost]...
  • Page 45 COMMAND Description and Parameters get automation event N1 uart A endchar  Show the current termination character(s) used by the specified Automation Event’s RS-232 command string. Available values for N1: [Power on] [Out A source active] [Out A source lost] set automation event N1 uart A command format N2 ...
  • Page 46 COMMAND Description and Parameters set automation event N1 uart A test command  Trigger sending the specified Automation Event’s currently defined RS-232 command string. Available values for N1: [Power on] [Out A source active] [Out A source lost] set automation event N1 cec A N2  Enable or disable the specified Automation Event’s CEC response.
  • Page 47 COMMAND Description and Parameters set automation event N1 cec A delay N2  Set the delay time that the specified Automation Event must continue to be true before sending the defined CEC command. Available values for N1: [Power on] [Out A source active] [Out A source lost] N2 = 0~240 [Delay in seconds]...
  • Page 48 COMMAND Description and Parameters get automation event N1 cec A wait  Show the wait time for the specified Automation Event’s CEC response. Available values for N1: [Power on] [Out A source active] [Out A source lost] set automation event N1 cec A test command  Trigger sending the specified Automation Event’s currently defined CEC command string.
  • Page 49 COMMAND Description and Parameters get automation event N1 telnet A  Show the current state of the specified Automation Event’s Telnet response. Available values for N1: [Power on] [Out A source active] [Out A source lost] set automation event N1 telnet A command N2  Set the Telnet command string to send when the specified Automation Event is activated.
  • Page 50 COMMAND Description and Parameters set automation event N1 telnet A delay N2  Set the delay time that the specified Automation Event must continue to be true before sending the defined Telnet command. Available values for N1: [Power on] [Out A source active] [Out A source lost] N2 = 0~240 [Delay in seconds]...
  • Page 51 COMMAND Description and Parameters get automation event N1 telnet A wait  Show the wait time for the specified Automation Event’s Telnet response. Available values for N1: [Power on] [Out A source active] [Out A source lost] set automation event N1 telnet A command format N2  Set the string format to use for the specified Automation Event’s Telnet command string when it is sent.
  • Page 52 COMMAND Description and Parameters set automation event N1 telnet A test command  Trigger sending the specified Automation Event’s currently defined Telnet command string. Available values for N1: [Power on] [Out A source active] [Out A source lost] set automation telnet A login N1  Enable or disable allowing automated Telnet logins.
  • Page 53 COMMAND Description and Parameters set automation telnet A port N1  Set the network port to use when sending Telnet Automation Event commands. N1 = 1~65535 [Network port number] get automation telnet A port  Show the current network port used when sending Telnet Automation Event commands.

  • Page 54: Connection Diagram

    7. CONNECTION DIAGRAM DVD/Bluray Laptop Tablet PC Keyboad & Webcam Player Mouse USB-C HDMI HDMI Input Input POWER USB-C HDMI 1 HDMI 2 HDMI A HDMI B USB-C USB 1 USB 2 Power Supply USB-C HDMI 1 HDMI 2 HDMI A HDMI B LINE OUT RS-232...

  • Page 55: Specifications

    8. SPECIFICATIONS 8.1 Technical Specifications HDMI Bandwidth 18Gbps USB-C Bandwidth 21.6Gbps Input Ports 2×HDMI (Type-A) 1×USB 3.0 (Type-C) Output Ports 2×HDMI (Type-A) 1×Stereo Audio (3.5mm) 1×RS-232 (4-pin Terminal Block) Pass-through Ports 1×USB 3.0 (Type-A) 1×USB 3.0 (Type-B) Pass-through/Service Port 1×USB 3.0 (Type-A) Control Ports 1×IP Control (RJ-45) 1×RS-232 (4-pin Terminal Block)

  • Page 56: Video Specifications

    8.2 Video Specifications Input Output Supported Resolutions (Hz) HDMI USB-C HDMI 720×400p@70/85    640×480p@60/72/75/85    720×480i@60    720×480p@60    720×576i@50    720×576p@50    800×600p@56/60/72/75/85    848×480p@60 ...
  • Page 57 Input Output Supported Resolutions (Hz) HDMI USB-C HDMI 1920×1080p@24/25/30    1920×1080p@50/60    1920×1200p@60RB    2560×1440p@60RB    2560×1600p@60RB    2048×1080p@24/25/30    2048×1080p@50/60    3840×2160p@24/25/30    3840×2160p@50/60 (4:2:0) ...

  • Page 58: Audio Specifications

    8.3 Audio Specifications 8.3.1 Digital Audio HDMI & USB-C Input / HDMI Output LPCM Max Channels 8 Channels Sampling Rate (kHz) 32, 44.1, 48, 88.2, 96, 176.4, 192 Bitstream Supported Formats Standard & High-Definition 8.3.2 Analogue Audio Analogue Output Max Audio Level 2Vrms THD+N <...

  • Page 59: Cable Specifications

    8.4 Cable Specifications 1080p 4K30 4K60 (4:4:4) (4:4:4) Cable Length 8-bit 12-bit 8-bit 8-bit High Speed HDMI Cable HDMI Input HDMI Output USB-C Cable USB-C Input Bandwidth Category Examples: 1080p (FHD Video) - Up to 1080p@60Hz, 12-bit colour - Data rates lower than 5.3Gbps or below 225MHz TMDS clock 4K30 (4K UHD Video) - 4K@24/25/30Hz &...

  • Page 60: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM ASCII American Standard Code for Information Interchange Audio/Video Cat.5e Enhanced Category 5 cable Cat.6 Category 6 cable Cat.6A Augmented Category 6 cable Cat.7 Category 7 cable Consumer Electronics Control Command-Line Interface Digital-to-Analogue Converter Decibel DHCP Dynamic Host Configuration Protocol Digital Visual Interface EDID...
  • Page 61 ACRONYM COMPLETE TERM Media Access Control Megahertz Signal-to-Noise Ratio Transmission Control Protocol THD+N Total Harmonic Distortion plus Noise TMDS Transition-Minimized Differential Signaling 4K UHD 4K Ultra-High-Definition (10.2Gbps max) 4K UHD 4K Ultra-High-Definition (18Gbps max) Universal Serial Bus Video Graphics Array WUXGA (RB) Widescreen Ultra Extended Graphics Array (Reduced Blanking)
