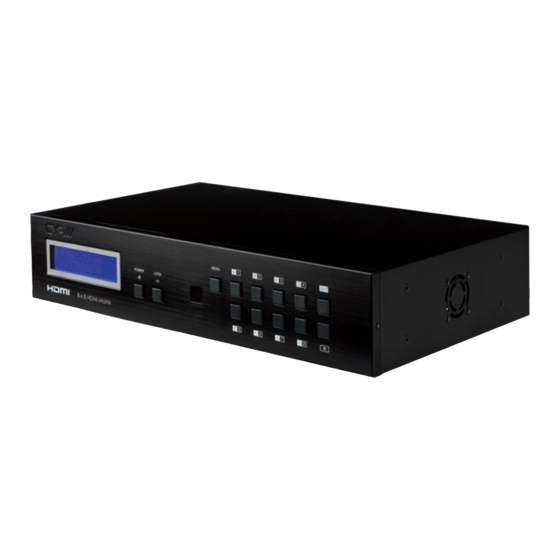

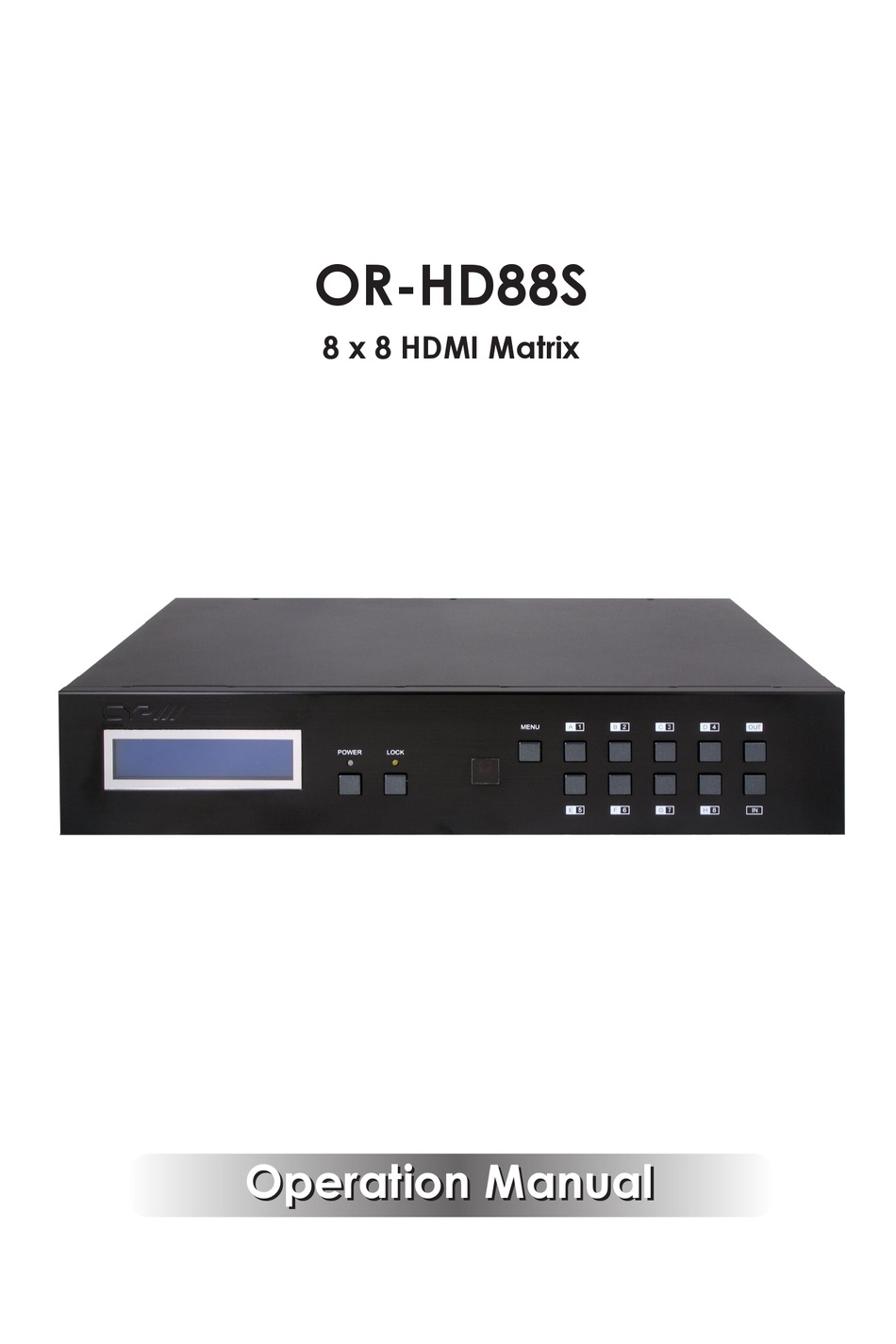

- Page 1 OR-HD88S CMSI-8H8HS 8 x 8 HDMI Matrix Operation Manual Operation Manual...
-
Page 3: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fi re, electrical shock and injury to persons. -
Page 4: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ..........1 3. Package Contents ........1 4. System Requirements ......1 5. Features ............ 1 6. Operation Controls and Functions ..2 6.1 Front Panel ..........2 6.2 Rear Panel ...........3 6.2 Rear Panel ...........4 7. -
Page 5: Introduction
1. INTRODUCTION The 8 x 8 HDMI Matrix is a fabulous device for organizing and distributing your HDMI signals. With 8 HDMI input ports and 8 HDMI output ports this device allows a great amount of sources and display to be used motivationally. Moreover, with plenty of control systems such as IR, RS-232 and remote control allow user for all kinds of control habit and occasion to be used. -
Page 6: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel This monitor displays your setting information with each input and output selection. Power button LED Press this button to turn on the device and the green LED will illuminate when the power is on. When the LED illuminate in red it is in standby mode LOCK Press this button to lock all the buttons on the panel. -
Page 7: Rear Panel
and then press Out →E→F→G→H→In→2→Menu. If the menu button is not press the selection will not be changed. 6.2 Rear Panel 2 3 4 LAN: This slot is to connect with CAT5/6 cable from an IP router for on- line fi rmware updating with a website designed by the device’s designer. -
Page 8: Remote Control
6.3 Side Panel Ventilator: These are fan ventilator area, DO NOT block these area or cover it with any object. 7. REMOTE CONTROL CR-110 Power: Press this button to switch on the device or set it to standby mode. Input ports selection 1~8. OUT: Output ports selection A~H. -
Page 9: Rs-232 Protocols
7.1 RS-232 Protocols Pin Assignment CMSI-8H8HS Remote Control Console OR-HD88S Assignment Assignment Baud Rate: 19200bps Data bit: 8 bits Parity: None Flow Control: None Stop Bit: 1... -
Page 10: Rs-232 Commands
7.2 RS-232 Commands Command (Case Sensitive) Description A1~A8 Switch output A to 1~8 B1~B8 Switch output B to 1~8 C1~C8 Switch output C to 1~8 D1~D8 SWITCH OUTPUT D TO 1~8 E1~E8 SWITCH OUTPUT E TO 1~8 F1~F8 SWITCH OUTPUT F TO 1~8 G1~G8 SWITCH OUTPUT G TO 1~8 H1~H8... -
Page 11: Connection And Installation
8. CONNECTION AND INSTALLATION Monitor Blu-ray Blu-ray Blu-ray Blu-ray... -
Page 12: Specifi Cations
9. SPECIFICATIONS TMDS Clock Frequency 2.25 Gbps Input Ports 8 x HDMI, 1 x IR, 1 x RS-232, 1 x USB B type(for fi rmware update only), 1 x RJ- 45 (LAN) Output Ports 8 x HDMI ESD Protection Human body model: ±... -
Page 13: Acronyms
10. ACRONYMS ACRONYM COMPLETE TERM Digital Theater System Digital Visual Interface EDID Extended Display Identifi cation Data HDCP High-bandwidth Digital Content Protection HDMI High-Defi nition Multimedia Interface HDTV High-Defi nition Television Liquid Crystal Monitor Universal Serial Bus Video Graphics Array WUXGA Wide Ultra Extended Graphics Array... - Page 16 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
