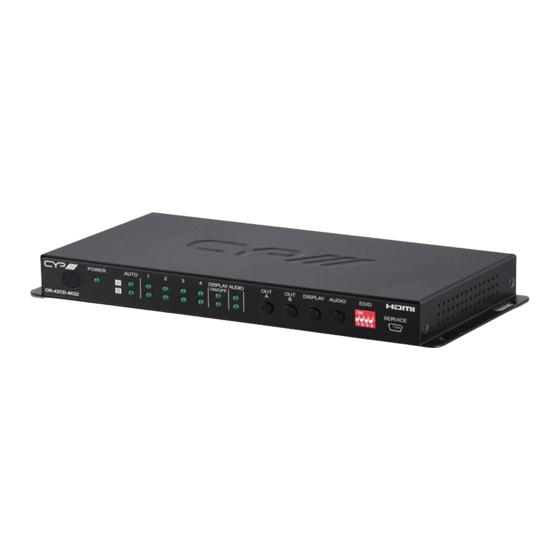

CYP OR-42CD-4K22 Operation Manual

Uhd+ 4x2 hdmi matrix with analogue out, 4k, 2k hdcp 2.2 hbdt
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
OR-42CD-4K22
UHD+ 4x2 HDMI Matrix with Analogue out
OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OR-42CD-4K22 and is the answer not in the manual?

Questions and answers

Related Manuals for CYP OR-42CD-4K22

Summary of Contents for CYP OR-42CD-4K22

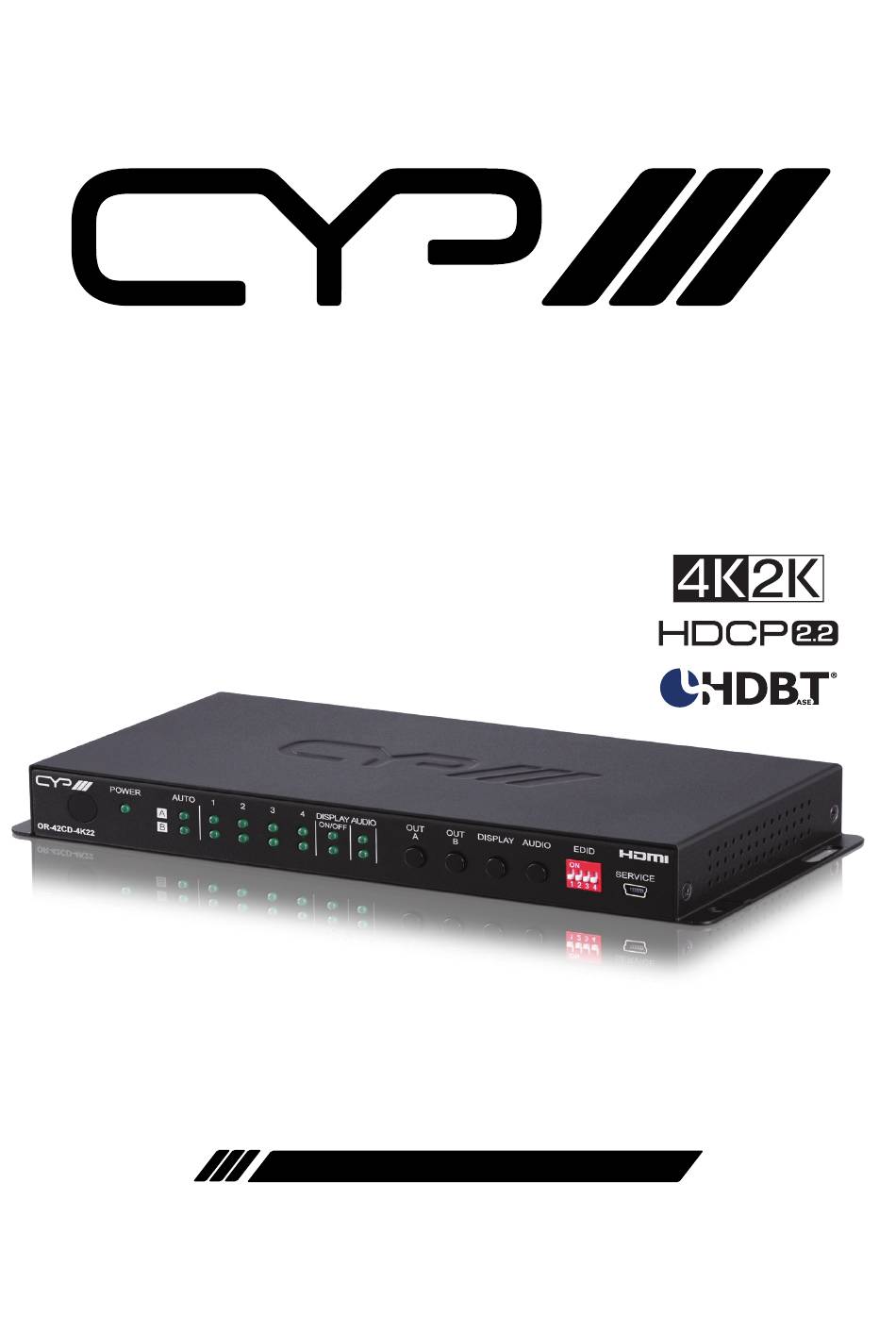

  • Page 1 OR-42CD-4K22 UHD+ 4x2 HDMI Matrix with Analogue out OPERATION MANUAL...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......7 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Front Panel ........... 8 6.2 Rear Panel ............. 9 6.3 Remote Control (Optional) ....10 6.4 RS-232 Pinout and Defaults ....10 6.5 Serial Commands ........11 7.

  • Page 6: Introduction

    1. INTRODUCTION This 4K UHD 4×2 HDMI Matrix with Audio Output provides the ability to connect up to four 4K UHD HDMI sources to up to two 4K UHD HDMI displays and freely switch between them. This unit comes with full support for 4K@60Hz (4:4:4, 8- bit) signals as well as support for 16-bit Deep Colour, HDR (High Dynamic Range), 3D content, HD audio and other features defined by the HDMI 2.0 specification.

  • Page 7: System Requirements

    4. SYSTEM REQUIREMENTS  HDMI source equipment such as media players, video game consoles, or set-top boxes.  HDMI receiving equipment such as HDTVs, monitors, or audio amplifiers.  The use of Premium High Speed HDMI cables is highly recommended. 5.

  • Page 8: Operation Controls And Functions

    DISPLAY AUDIO EDID ON/OFF SERVICE 1 2 3 4 OR-42CD-4K22 IR Window: Accepts IR signals from the optional IR remote for control of this unit only. POWER LED: This LED will illuminate to indicate the unit is on and receiving power.

  • Page 9: Rear Panel

    EDID Dipswitch Block: Each dipswitch toggles the EDID source for the associated HDMI input between external EDID (DOWN), and internal EDID (UP). Note: The external EDID defaults to Output A’s EDID. The internal EDID supports 1080p60 with LPCM 2.0 audio for maximum compatibility. SERVICE Port: This port is reserved for firmware update use only.

  • Page 10: Remote Control (Optional)

    6.3 Remote Control (Optional) POWER Button: Press this button to power the unit on or off. POWER Note: The unit will also transmit the appropriate CEC/RS-232 on/off commands to any connected displays. OUT A 1~4 Buttons: Press any of these buttons to immediately switch Output A to the corresponding input.

  • Page 11: Serial Commands

    6.5 Serial Commands COMMAND Description and Parameters HELP  Show the full command list. HELP N1  Show help details about the specified command. N1 = {Command name} GET MODEL NAME Show the unit’s model name. GET FW VER  Show the unit’s current firmware version.
  • Page 12 COMMAND Description and Parameters SET KEYLOCK N1  Enable or disable the front panel key lock. Available values for N1: [Lock front panel] [Unlock front panel] GET KEYLOCK  Show the current front panel lock state. SET FACTORY DEFAULT  Reset the unit to the factory defaults.
  • Page 13 COMMAND Description and Parameters GET OUT N1 RSENSE  Show the current rsense status of the specified output. Available values for N1: [Output A] [Output B] GET IN N1 EDID DATA  Show the EDID currently used by the specified input as ASCII hex data. Available values for N1: [Input 1] [Input 2]...
  • Page 14 COMMAND Description and Parameters GET OUT N1 EDID INFORMATION  Show English readable details derived from the EDID provided by the display connected to the specified output. Available values for N1: [Output A] [Output B] SET OUT N1 ROUTE N2  Route the specified input to the specified output.
  • Page 15 COMMAND Description and Parameters SET OUT N1 AUTO ROUTE N2  Enable or disable auto switching on the specified output. Available values for N1: [Output A] [Output B] Available values for N2: [Auto switching enabled] [Auto switching disabled] GET OUT N1 AUTO ROUTE  Show current auto switching mode of the specified output.
  • Page 16 COMMAND Description and Parameters SET DISPLAY N1 UART BAUD RATE N2  Set the baud rate of the specified RS-232 port. Available values for N1: [Output A] [Output B] Available values for N2: 2400 [2400 baud] 4800 [4800 baud] 7200 [7200 baud] 9600 [9600 baud]...
  • Page 17 COMMAND Description and Parameters GET DISPLAY N1 UART DATA BIT  Show the current number of data bits of the specified RS-232 port. Available values for N1: [Output A] [Output B] SET DISPLAY N1 UART PARITY N2  Set the parity of the specified RS-232 port. Available values for N1: [Output A] [Output B]...
  • Page 18 COMMAND Description and Parameters GET DISPLAY N1 UART STOP BIT  Show the current number of stop bits of the specified RS-232 port. Available values for N1: [Output A] [Output B] SET DISPLAY N1 POWER ON COMMAND N2  Set the RS-232 “Power On” command to use with the specified output’s display.
  • Page 19 COMMAND Description and Parameters GET DISPLAY N1 POWER OFF COMMAND  Show the current RS-232 “Power Off” command for the specified output’s display. Available values for N1: [Output A] [Output B] SET AUDIO OUT ROUTE N1  Route the specified output’s audio to the analogue audio output. Available values for N1: [Output A] [Output B]...

  • Page 20: Connection Diagram

    7. CONNECTION DIAGRAM HDMI Media Player/ Input Game Console Media Player/ Game Console Media Player/ Game Console Media Player/ RS-232 Game Console Power HDMI IN HDMI IN HDMI IN HDMI IN HDMI OUT HDMI OUT AUDIO DC 5V Supply TX RX TX RX RS-232 RS-232...

  • Page 21: Specifications

    8. SPECIFICATIONS 8.1 Technical Specifications HDMI Bandwidth 18Gbps Input Ports 4×HDMI (Type-A) Output Ports 2×HDMI (Type-A) 1×Stereo Audio (3.5mm) Control Ports 2×RS-232 (3-pin Terminal Block) Service Port 1×USB 2.0 (Mini B) IR Frequency 38kHz Baud Rate Up to 115200 (19200 default) Power Supply 5V/2.6A DC (US/EU standards, CE/FCC/UL certified)

  • Page 22: Video Specifications

    8.2 Video Specifications Input Output Supported Resolutions (Hz) HDMI HDMI 720×400p@70/85   640×480p@60/72/75/85   720×480i@60   720×480p@60   720×576i@50   720×576p@50   800×600p@56/60/72/75/85   848×480p@60   1024×768p@60/70/75/85   1152×864p@75   1280×720p@50/60 ...
  • Page 23 Input Output Supported Resolutions (Hz) HDMI HDMI 1920×1080p@24/25/30   1920×1080p@50/60   1920×1200p@60RB   2560×1440p@60RB   2560×1600p@60RB   2048×1080p@24/25/30   2048×1080p@50/60   3840×2160p@24/25/30   3840×2160p@50/60 (4:2:0)   3840×2160p@24, HDR10   3840×2160p@50/60 (4:2:0),HDR10 ...

  • Page 24: Audio Specifications

    8.3 Audio Specifications 8.3.1 Digital Audio HDMI Input / Output LPCM Max Channels 8 Channels Sampling Rate (kHz) 32, 44.1, 48, 88.2, 96, 176.4, 192 Bitstream Supported Formats Standard & High-Definition 8.3.2 Analogue Audio Analogue Output Max Audio Level 2Vrms THD+N <...

  • Page 25: Cable Specifications

    8.4 Cable Specifications 1080p 4K30 4K60 (4:4:4) (4:4:4) Cable Length 8-bit 12-bit 8-bit 8-bit High Speed HDMI Cable HDMI Input HDMI Output Bandwidth Category Examples: 1080p (FHD Video) - Up to 1080p@60Hz, 12-bit colour - Data rates lower than 5.3Gbps or below 225MHz TMDS clock 4K30 (UHD Video) - 4K@24/25/30Hz &...

  • Page 26: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM ASCII American Standard Code for Information Interchange Audio/Video Audio/Video Receiver or Recorder Consumer Electronics Control Command-Line Interface Digital-to-Analogue Converter Decibel Digital Visual Interface EDID Extended Display Identification Data Gbps Gigabits per second High-Definition HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface High Dynamic Range...
  • Page 27 ACRONYM COMPLETE TERM Signal-to-Noise Ratio Total Harmonic Distortion plus Noise TMDS Transition-Minimized Differential Signaling Ultra-High-Definition (10.2Gbps) Ultra-High-Definition Plus (18Gbps) UHDTV Ultra-High-Definition Television Universal Serial Bus Video Graphics Array WUXGA Widescreen Ultra Extended Graphics Array (Reduced (RB) Blanking) Extended Graphics Array Ω...
  • Page 28 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.00...
