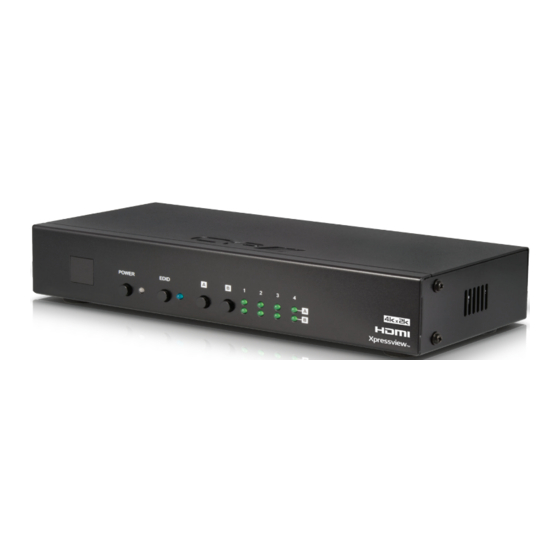

OR-42UHD
4x2 HDMI Matrix (4K)
OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OR-42UHD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CYP OR-42UHD

  • Page 1 OR-42UHD 4x2 HDMI Matrix (4K) OPERATION MANUAL...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........6 6. Operation Controls and Functions ..7 6.1 Front Panel ........... 7 6.2 Rear Panel ............. 8 6.3 Remote Control .......... 9 6.4 D-Sub 9 Pin Definitions ......9 6.5 RS-232 Protocols ........10 6.6 Web GUI Control ........11 7.
  • Page 6: Introduction

    1. INTRODUCTION The 4 by 2 HDMI matrix with 4kx2k supported which allows HDMI signal from any of its four sources to be routed to and displayed on any of its two connected HDMI displays simultaneously. It supports 3D, 3Gbps bandwidth, 16-bit Deep Colour, Hi-Def lossless audio and other features defined by HDMI specifications.
  • Page 7: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel POWER EDID IR receiver window accepts the remote control signal of this device. POWER & LED Press this button to power the device on/off. The LED will illuminate when the power is on. EDID &...
  • Page 8: Rear Panel

    6.2 Rear Panel INPUT OUTPUT RS232 ETHERNET POWER DC 5V SERVICE INPUT 1~4 Connect input source equipments such as DVD/Blu-ray players with HDMI cables. OUTPUT A/B Connect to HDMI 3D TV/display or monitor for both audio and video or moving/static graphic play. RS-232 Connect to a PC or laptop with D-Sub 9-pin male cable for the transmission of RS-232 commands.
  • Page 9: Remote Control

    OUTPUT OUTPUT B 1~4 Press buttons 1~4 to selection the nominated input for output CR-33 6.4 D-Sub 9 Pin Definitions OR-42UHD Remote Control Assignment Assignment Baud Rate: 19200bps Data Bit: 8 bits Parity: None Flow Control: None...
  • Page 10: Rs-232 Protocols

    6.5 RS-232 Protocols Command Description A1~A4 Switch Output A to 1~4 B1~B4 Switch Output B to 1~4 AB...1~AB...4 Switch Output A B ... to 1~4 at the same time SETIP <IP> <SubNet> <GW> Setting IP. SubNet. GateWay <SataicIP> RSTIP IP configuration was reset to factory default<DHCP>...
  • Page 11: Web Gui Control

    6.6 Web GUI Control On a PC/Laptop that is connected to the same active network as the Matrix, open a web browser and type device's IP address(get from RS-232's help command or use the default IP: 192.168.0.1) on the web address entry bar.
  • Page 12 Clicking on the 'Setting' tab allows you to reset the IP confi guration. The system will ask for a reboot of the device every time any of the settings are changed. The IP address needed to access the Web GUI control will also need to be changed accordingly on the web address entry bar.
  • Page 13: Connection Diagram

    7. CONNECTION DIAGRAM Blu-ray or Blu-ray or 60° PS3 Player PS3 Player Blu-ray or Blu-ray or PS3 Player PS3 Player HDMI HDMI RS-232 Equipped PC or Notebook HDMI HDMI INPUT OUTPUT RS232 ETHERNET POWER DC 5V SERVICE HDMI with HDMI Ethernet 3D TV/ Display...
  • Page 14: Specifications

    8. SPECIFICATIONS Video Bandwidth 300Mbps /10.2Gbps Input ports 4 x Female HDMI type A, 1 x IR In, 1 x RS-232, 1 x RJ-45, 1 x Mini USB (for service only) Output ports 2 x Female HDMI type A Output Resolution 480i ~1080p, 4Kx2K Power Supply 5V/1A DC (US/EU standards, CE/FCC/UL...
  • Page 15: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface...
  • Page 16 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com...
