CYP OR-42SA-4K22 Operation Manual

4 x 2 hdmi matrix switcher
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

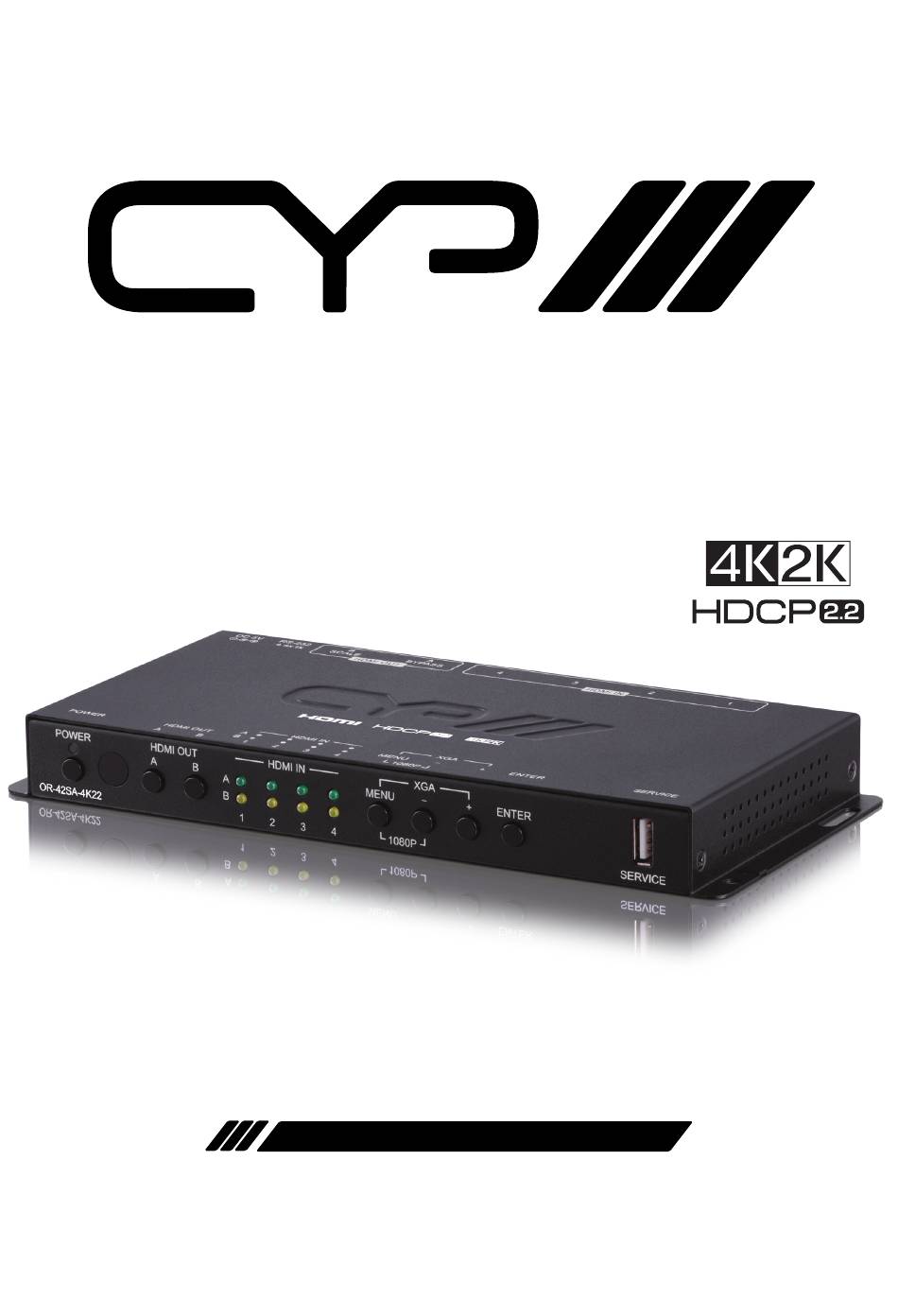

OR-42SA-4K22
4 x 2 HDMI Matrix Switcher
(4K, HDCP2.2, HDMI2.0)
OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OR-42SA-4K22 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CYP OR-42SA-4K22

Summary of Contents for CYP OR-42SA-4K22

  • Page 1 OR-42SA-4K22 4 x 2 HDMI Matrix Switcher (4K, HDCP2.2, HDMI2.0) OPERATION MANUAL...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......7 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Front Panel ........... 8 6.2 Rear Panel ............. 9 6.3 Remote Control ........10 6.4 OSD Menu ..........11 6.5 RS-232 Control ..........24 6.6 RS-232 Commands ........25 7.

  • Page 6: Introduction

    1. INTRODUCTION This Scaler is a new and powerful 4K scaling solution. The maximum resolution supported is 4096×2160@50/60Hz (4:4:4, 8-bit) for all HDMI inputs and outputs. The scaled HDMI output is powered by a high quality single-pass scaling engine with the ability to adjust the image with a number of fine tuning options including: contrast, brightness, hue, saturation, sharpness, noise reduction, and RGB levels.

  • Page 7: System Requirements

     1×3-pin Terminal Block to 9-pin D-sub Adapter Cable  1×Shockproof Feet (Set of 4)  1×Operation Manual 4. SYSTEM REQUIREMENTS  HDMI source equipment such as media players, video game consoles or set-top boxes.  HDMI receiving equipment such as HDTVs, monitors or audio amplifiers.

  • Page 8: Operation Controls And Functions

    − ENTER SERVICE 1080P OR-42SA-4K22 POWER BUTTON & LED: Press this button to power on the unit (green LED) or place it into stand-by mode (red LED). IR RECEIVER WINDOW: Accepts IR signals from the included IR remote for control of this unit only.

  • Page 9: Rear Panel

    6.2 Rear Panel HDMI IN HDMI OUT RS-232 TX RX DC 5V BYPASS SCALE HDMI IN 1~4 PORTS: Connect to HDMI source equipment such as media players, game consoles or set-top boxes. HDMI OUT A~B PORTS: Connect to HDMI TVs, monitors or amplifiers for digital video and audio output.

  • Page 10: Remote Control

    6.3 Remote Control POWER POWER BUTTON: Press this button to HDMI 1 HDMI 2 HDMI 3 power on the unit or place it into stand-by HDMI 4 AUDIO mode. MUTE HDMI HDMI 1 HDMI 2 HDMI 3 HDMI A SOURCE 1~4 BUTTONS: Press AUDIO HDMI 4 any of these buttons to immediately...

  • Page 11: Osd Menu

    6.4 OSD Menu All functions of this unit can be controlled by using the OSD (On Screen Display) which is activated by pressing the MENU button on the front of the unit. Use the + (PLUS), − (MINUS), and ENTER buttons to navigate the OSD menu.
  • Page 12 The individual functions of the OSD will be introduced in the following section. Items marked in BOLD are the factory default settings. VIDEO LEVEL LEVEL LEVEL HDMI1 Video HDMI2 HDMI3 HDMI4 Output 640×480 60 800×600 60 1024×768 60 1280×768 60 1280×800 60 1280×1024 60 1360×768 60...
  • Page 13 VIDEO LEVEL LEVEL LEVEL 1920×1080P 60 Output (Cont.) 720×576p 50 1280×720p 50 1920×1080p 50 1920×1080p 24 1920×1080p 25 1920×1080p 30 2560×1080p 50 2560×1080p 60 3840×2160p 24 3840×2160p 25 3840×2160p 30 3840×2160p 50 3840×2160p 60 4096×2160p 24 Output 4096×2160p 25 4096×2160p 30 4096×2160p 50 4096×2160p 60 Native...
  • Page 14 VIDEO LEVEL LEVEL LEVEL Aspect (Cont.) Under 1 Follow In Zoom Mode 60~180 (100) Zoom Mode Ratio HDMI1 HDCP Support Off Refer to Source REFER TO DISPLAY HDMI2 HDCP HDMI3 HDCP [Same as HDMI1 HDCP] HDMI4 HDCP BLACK No Signal Colour White Blue Green...
  • Page 15 VIDEO LEVEL LEVEL LEVEL Auto Setup (Cont.) From Last From HDMI1 From HDMI2 From HDMI3 From HDMI4 Auto Switch Bypass Output Video HDMI1 HDMI2 HDMI3 HDMI4 4K down to 1080p YUV444 Follow In 4K 6G YUV420 Bypass Colour FOLLOW IN Bypass Output Bypass Colour YUV444...
  • Page 16 3) Aspect (Output B only): Selects the aspect ratio to use when outputting a source on the scaled output. “Full” stretches the source to fill the output resolution, regardless of the original aspect ratio, while “Best Fit” will always attempt to retain the original source’s correct aspect ratio by adding black bars if necessary.
  • Page 17 ■ Video: Select the HDMI input to route to the bypass output (Output A) for display. ■ 4K down to 1080p: Enables or disables the 4K to 1080p scaling function. When enabled, any 4K source routed to Output A will be automatically scaled to 1080p using the selected colour space.
  • Page 18 PICTURE (OUTPUT B ONLY) LEVEL LEVEL 0~1023 (512) Colour Gain R 0~1023 (512) Colour Gain G 0~1023 (512) Colour Gain B 0~1023 (512) Colour Offset R 0~1023 (512) Colour Offset G 0~1023 (512) Colour Offset B 0~60 (30) Brightness 0~60 (30) Contrast 0~60 (30) 0~60 (30)
  • Page 19 6) Saturation: Provides control over the colour saturation level of the scaled output image. 7) Sharpness: Provides control over the amount of sharpness processing to apply to the scaled output image. 8) NR: Provides control over the aggressiveness of the digital noise reduction processing when applied to the scaled output image.
  • Page 20 LEVEL LEVEL 0~60 (30) H Position 0~60 (30) V Position Timer Timer 0~50 (50) Transparent Display Reset OSD 1) H Position: Set the horizontal position of the OSD menu. 2) V Position: Set the vertical position of the OSD menu. 3) Timer: Set the length of time to wait before automatically turning off the OSD menu if there is no user interaction.
  • Page 21 50 is completely opaque. 5) Display: Enable or disable the information display and set the length of time for the information display to be visible after a source or resolution change. 6) Reset OSD: Selecting this will reset all OSD settings back to their factory defaults.
  • Page 22 changed. Selecting “Auto Output A” or “Auto Output B” will automatically copy and use the EDID from that output every time a new sink is connected. RESET LEVEL LEVEL Reset All 1) Reset All: Selecting this will reset the unit’s settings back to their factory defaults.
  • Page 23 INFORMATION LEVEL LEVEL SCALER OUT Video Input Output [Current Status Details] Output HDCP Source HDCP Sink HDCP BYPASS OUT Video Input Output [Current Status Details] Output HDCP Source HDCP Sink HDCP Version [Firmware Version] 1) Information: This screen displays information about the unit’s current state, input and output status, as well as the current firmware version.

  • Page 24: Rs-232 Control

    6.5 RS-232 Control Unit Controlling PC Serial Port Default Settings Definition Definition Baud Rate 19200 Data Bits Parity Bit None Stop Bits Flow Control None...

  • Page 25: Rs-232 Commands

    6.6 RS-232 Commands COMMAND  Description and Parameters HELP Show the full command list. Show the full command list. SET FACTORY DEFAULT Reset the unit to the factory defaults. SET FACTORY OUT ROUTE DEFAULT Reset the unit’s routing to the factory defaults. SET SYSTEM REBOOT Reboot the unit.
  • Page 26 COMMAND  Description and Parameters SET OUT A 4K2K DOWNSCALE MODE N1 Enable/disable the 4K to 1080p downscale mode used by Output A (Bypass) and set the colour space to use when enabled. Available values for N1: [Off ] [On, RGB 4:4:4] [On, YUV 4:4:4] [On, Follow Input] GET OUT A 4K2K DOWNSCALE MODE...
  • Page 27 COMMAND  Description and Parameters SET OUT B TIMING N1 Set the scaled output resolution for Output B. Available values for N1: [Native] [640×480@60Hz] [800×600@60Hz] [1024×768@60Hz] [1280×768@60Hz] [1280×800@60Hz] [1280×1024@60Hz] [1360×768@60Hz] [1400×1050@60Hz] [1440×900@60Hz] [1600×1200@60Hz] [1680×1050@60Hz] [1920×1200@60Hz RB] [2560×1600@60Hz] [1920×1080@60Hz] [1280×720@60Hz] [2048×1080@50Hz] [2048×1080@60Hz] [2560×1440@60Hz RB] [720×480p@60Hz]...
  • Page 28 COMMAND  Description and Parameters [2560×1080p@50Hz] [2560×1080p@60Hz] [3840×2160p@24Hz] [3840×2160p@25Hz] [3840×2160p@30Hz] [3840×2160p@50Hz] [3840×2160p@60Hz] [4096×2160p@24Hz] [4096×2160p@25Hz] [4096×2160p@30Hz] [4096×2160p@50Hz] [4096×2160p@60Hz] GET OUT B TIMING Show the currently selected scaling resolution number for Output B. GET OUT N1 TIMING STRING Show the current output timing details for Output N1. N1 = A ~ B [Output port] GET OUT N1 SYNC STATUS...
  • Page 29 COMMAND  Description and Parameters SET OUT B BRIGHTNESS N1 Set Output B’s brightness level. N1 = 0 ~ 60 [Brightness] GET OUT B BRIGHTNESS Show Output B’s current brightness level. SET OUT B SATURATION N1 Set Output B’s colour saturation level. N1 = 0 ~ 60 [Saturation] GET OUT B SATURATION...
  • Page 30 COMMAND  Description and Parameters SET OUT B NR N1 Set the amount of noise reduction to apply to Output B’s source. Available values for N1: [Off ] [Low] [Middle] [High] [Auto] GET OUT B NR Show Output B’s current noise reduction setting. SET OUT B R GAIN N1 Set Output B’s red gain level.
  • Page 31 COMMAND  Description and Parameters SET OUT B ASPECT RATIO N1 Set Output B’s aspect ratio. Available values for N1: [Overscan] [Full] [Best fit] [Pan scan] [Letterbox] [Underscan 2] [Underscan 1] [Follow input] [Zoom mode] GET OUT B ASPECT RATIO Show the current aspect ratio setting for Output B.
  • Page 32 COMMAND  Description and Parameters SET AUDIO OUT N1 MUTE N2 Enable or disable audio mute on Output N1. N1 = A ~ B [Output port] Available values for N2: [Mute off ] [Mute on] GET AUDIO OUT N1 MUTE Show the current mute state of Output N1.
  • Page 33 COMMAND  Description and Parameters GET IN N1 HDCP MODE Show the HDCP handling method currently used by input N1. N1 = 1 ~ 4 [Input port] GET IN N1 HDCP STATUS Show the current HDCP status of Input N1. N1 = 1 ~ 4 [Input port] Available HDCP status types:...
  • Page 34 COMMAND  Description and Parameters SET IN N1 EDID N2 Set the EDID for Input N1 to EDID N2. N1 = 1 ~ 4 [Input port] Available values for N2: [FHD 2CH] [FHD MCH] [UHD 2CH] [UHD MCH] [UHD+ 2CH] [UHD+ MCH] [User EDID 1] [User EDID 2]...
  • Page 35 COMMAND  Description and Parameters SET USER N1 EDID DATA N2 Set User EDID N1’s data in ASCII HEX. N1 = 1 ~ 4 [User EDID] N2 = {Hex pairs} [EDID data] GET USER N1 EDID DATA List User EDID N1’s EDID data in ASCII HEX. N1 = 1 ~ 4 [User EDID] GET INTERNAL N1 EDID DATA...
  • Page 36 COMMAND  Description and Parameters SET ALL IN EDID N1 Set the EDID for all inputs to EDID N1. Available values for N1: [FHD 2CH] [FHD MCH] [UHD 2CH] [UHD MCH] [UHD+ 2CH] [UHD+ MCH] [User EDID 1] [User EDID 2] [User EDID 3] [User EDID 4] [Output A]...
  • Page 37 COMMAND  Description and Parameters SET OUT ALL OSD TIMEOUT N1 Set the OSD display timeout length, or disable the timeout. Available values for N1: [No timeout] [5 seconds] [10 seconds] [15 seconds] [20 seconds] [25 seconds] [30 seconds] [35 seconds] [40 seconds] [45 seconds] [50 seconds]...
  • Page 38 COMMAND  Description and Parameters SET OUT ALL OSD HPOSITION N1 Set the horizontal position of the OSD. N1 = 0 ~ 60 [Horizontal position] GET OUT ALL OSD HPOSITION Show the current horizontal position of the OSD. SET OUT ALL OSD VPOSITION N1 Set the vertical position of the OSD.

  • Page 39: Connection Diagram

    7. CONNECTION DIAGRAM RS-232 Equipped PC/Laptop Set-top Box Media Player Game Console HDMI RS-232 Inputs Power Supply HDMI IN HDMI OUT RS-232 TX RX DC 5V BYPASS SCALE HDMI Outputs UHDTV UHDTV...

  • Page 40: Specifications

    8. SPECIFICATIONS 8.1 Technical Specifications HDMI Bandwidth 600MHz/18Gbps Input Ports 4×HDMI Output Ports 2×HDMI Control Port 1×RS-232 (Terminal Block) Other Port 1×Service (USB Type-A) IR Frequency 30−50 kHz (30−60 kHz under ideal conditions) Baud Rate 19200 bps Power Supply 5V/3A DC (US/EU standards, CE/FCC/UL certified) ESD Protection Human Body Model:...

  • Page 41: Video Specifications

    8.2 Video Specifications Input Output Bypass Scaled Supported Resolutions (Hz) HDMI HDMI HDMI × 720×400@85   × 720×480i@60   720×480p@60    640×480@60/72/75/85 60Hz   × 720×576i@50   720×576p@50    800×600@56/60/72/75/85 60Hz  ...

  • Page 42: Cable Specifications

    Input Output Bypass Scaled Supported Resolutions (Hz) HDMI HDMI HDMI 2560×1600@60 (RB)    2560×1440@60 (RB)    3840×2160@24/25/30    3840×2160@50/60 (4:4:4)    × 3840×2160@50/60 (4:2:0)   4096×2160@24/25/30    4096×2160@50/60 (4:4:4) ...

  • Page 43: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM ASCII American Standard Code for Information Interchange Consumer Electronics Control Digital Visual Interface EDID Extended Display Identification Data High-Definition HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface High Dynamic Range HDTV High-Definition Television Infrared Light-Emitting Diode LPCM Linear Pulse-Code Modulation...
  • Page 44 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.00...
