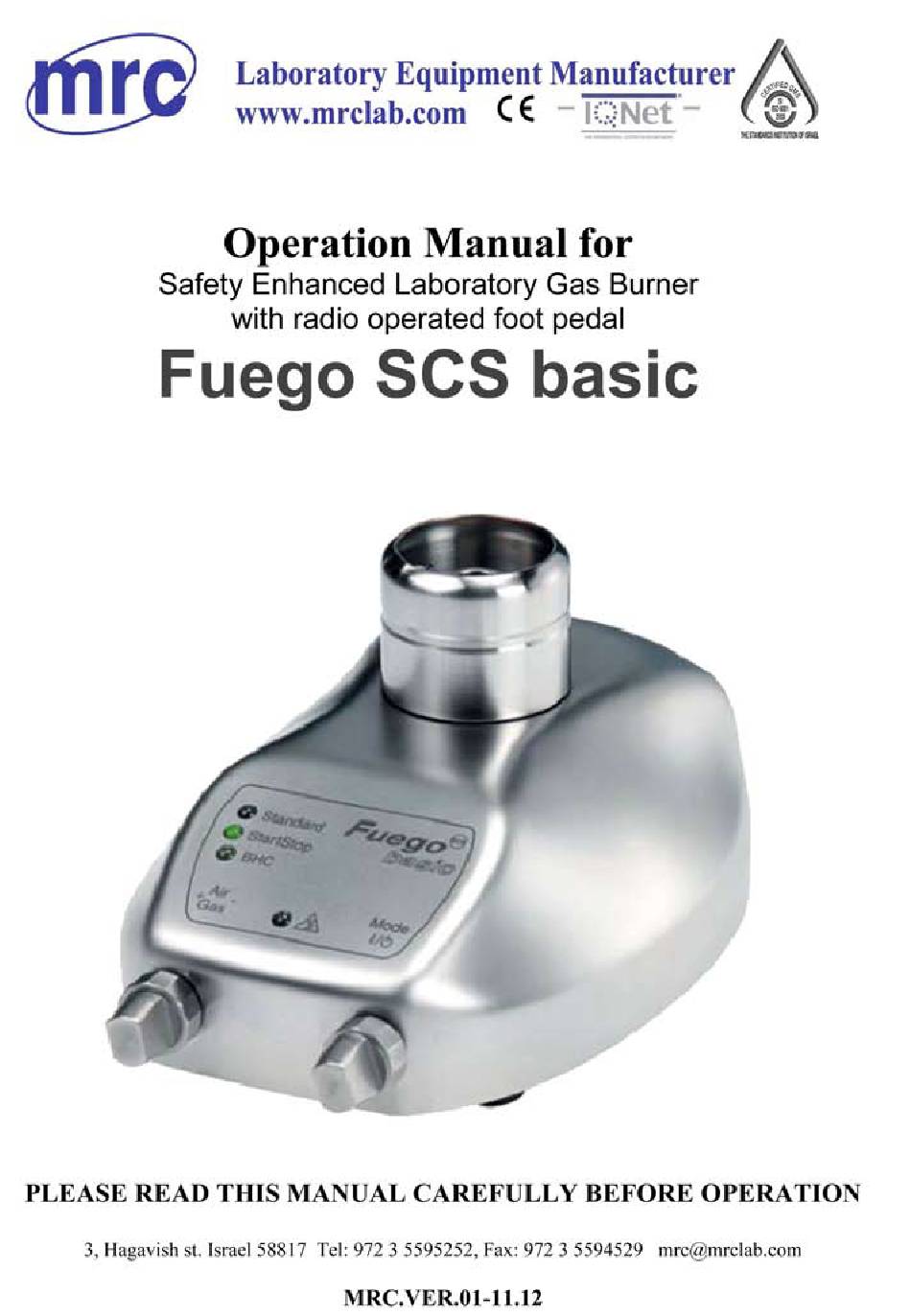

MRC Fuego SCS basic Operation Manual

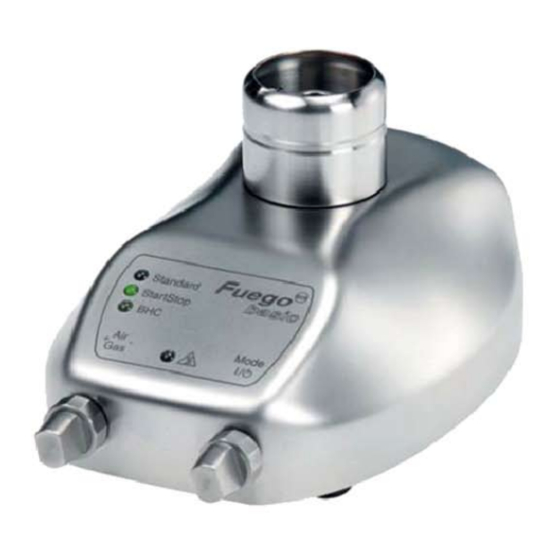

Safety enhanced laboratory gas burner with radio operated foot pedal
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Fuego SCS basic and is the answer not in the manual?

Questions and answers

Related Manuals for MRC Fuego SCS basic

Summary of Contents for MRC Fuego SCS basic

  • Page 2 1 - Function knob 2, 2a - Dual knob: 2 - Gas adjustment 2a - Air adjustment 3 - LED Standard 4 - LED StartStop 5 - LED Button 6 - LED Burner head HOT / BHC 7 - Burner head 7a - Flame orifice 8 - Connector for foot pedal (Cable) 9 - Power connector for 9 V DC...
  • Page 3 Read these instructions carefully to familiarize yourself with the product. Please retain these operating instruction for future reference. Use: Safety laboratory gas burners for heating and flame sterilizing. Ideal for use in cleanroom workbenches and the laboratory. WARNING: DO NOT LEAVE THE ACTIVATED LABORATORY GAS BURNER UNATTENDED! SAFETY PRECAUTIONS: •...

  • Page 4: Electrical Connection

    The range: Fuego SCS basic Art.-No. 8.003.000 - RF Stainless steel radio frequency foot pedal (Art.-No. 8.000.406-RF) (battery operated) 2 Mignon-Batteries (AA) 3 standard-programs for button (function knob) and foot pedal SCS (Safety Control System) BHC (Burner Head Control) Removable and decomposable burner head Tilt mechanism, right / left (23) Holding device for 3 inoculation loop holders Nozzles for natural gas, propane/butane gas...
  • Page 5 2. Operation: Flame regulation The flame can be varied in size and intensity by turning the gas knob (2) and adjusting the air knob (2a) to suit all requirements. Attention: When operating the unit for the first time or after changing the nozzle, turn the gas adjustment knob (2) two revolutions to the left and turn the air adjustment knob (2a) 3-4 revolutions to the left, too.
  • Page 6 Brief, intense flashes at rapid set intervals: The RF stick is out of range or has been switched off. If no burner is detected after 40 flashes, the foot pedal switches itself off. Intermittent lighting up of the LED, duration approx. 1 sec.: batteries low (see paragraph 8) Slight glow: Programming in progress (see paragraph 2.4)

  • Page 7: Error Displays

    3.Safety symbols and safety functions: - Residual heat display: LED “Burner head HOT / BHC“ indicates a hot burner head. Attention: If the LED “burner head HOT / BHC“ lights up DO NOT TOUCH the burner head. Can cause burns! Even after switching-off the unit the residual heat LED remains on till the burner head is cooled down.

  • Page 8: Cleaning And Sterilizing

    5. Cleaning and sterilizing: Allow sufficient time for burner orifice (7, 7a) to cool down before disassembling or cleaning the burner head. Check the unit is disconnected and that the gas supply is turned off at the mains. The burner can be cleaned with customary commercial disinfectants. Additionally, it is possible to remove the burner head and to clean it separately.

  • Page 9: Changing The Batteries

    8. Changing the batteries: Change the batteries in the wireless foot pedal as soon as the function LED (20) signals “batteries low”. (intermittent lighting up of the LED, duration approx. 1 sec.) Attention: Switch off the laboratory gas burner while changing the batteries, to avoid inadvertent activation of the laboratory burner through unintended pressing of the foot pedal while inserting the batteries.
  • Page 10 Notes...

  • Page 11: Troubleshooting Guide

    Troubleshooting guide The green LED “Standard“ or “StartStop“ does not light up Check for correct connection and specification of the power adapter. Ensure that the original power adapter is used. Specifications: 9 V / DC, 1A Polarity: The foot pedal does not work Check for correct connection of the foot pedal.
  • Page 12 The burner shuts-off due to overtemperature frequently In case of overtemperature increase the air ventilation or change the operation site. Green LED “Button“, “Standard“ or „StartStop“ blinks 2x Ignition failure (see paragraph 4) Green LED “Button“, “Standard“ or „StartStop“ blinks 3x Flame failure (see paragraph 4) Green LED “Button“, “Standard“...
  • Page 13 Technical data: Technology Microprocessor Programs Foot pedal: Standard (flame during pressed foot pedal) Start-Stop with timer, 60 min Button: Start-Stop with timer, 60 min Safety features Safety Control System (SCS): ignition and flame control, temperature monitor (with gas safety cut off) burner head clogging and assembly monitor (BHC) automatic unit switch off, 4h residual heat display...
  • Page 14 (radio equipment, equipment class 1, Non-specific SRD) Fuego SCS basic RF Typ / type 8.001.000-RF is in conformity with the relevant provisions of the following standards and complies with the essential requirements of §3 and the other relevant provisions of the FTEG (Article 3 of the R&TTEDirective), when used for its intended purpose.
