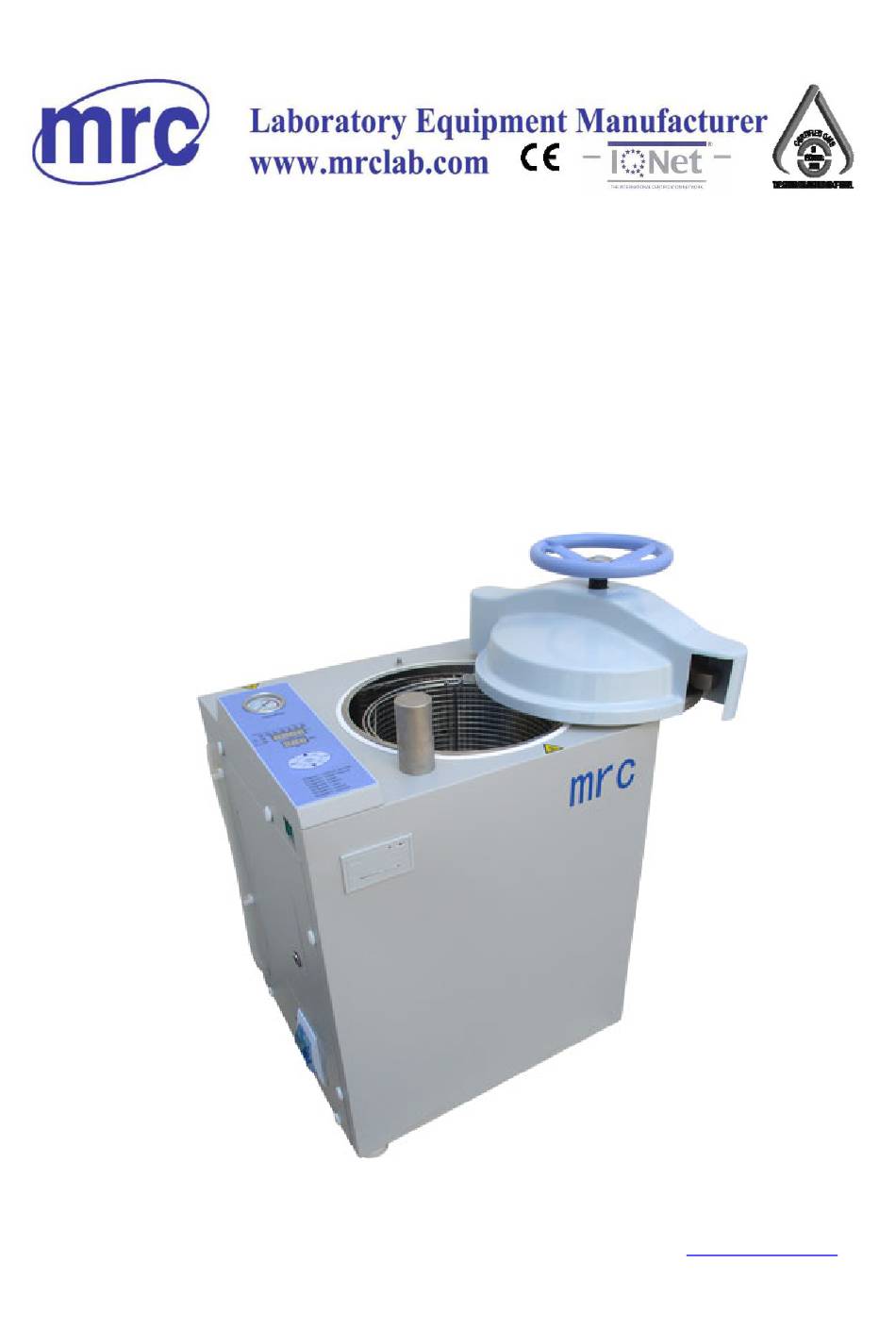

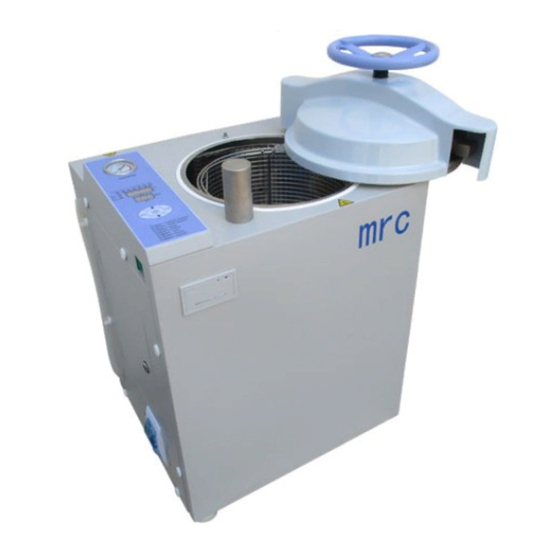

- Page 1 Hand Wheel Vertical Autoclave User’s Manual STE-V60/80/100 PLEASE READ THIS MANUAL CAREFULLY BEFORE OPERATION 3, Hagavish st. Israel 58817 Tel: 972 3 5595252, Fax: 972 3 5594529 mrc@mrclab.com MRC.4.17...
- Page 2 Content Production enterprise information ⑤ Gap should be left between the sterile package, which will help the penetration factor sterilization......................15 ⑥ large package of difficult sterilization should be placed in the upper , the smaller packet should be placed on the lower deck..............15 ⑦...
-
Page 3: Installation And Adjustment
I. Installation and Adjustment Check whether the parts is complete When the arrival of the autoclave, please special attention to the packing, carefully check whether the model, product name etc in product packaging box is consistent, and keep the packaging materials. Vertical autoclave packing list (see Appendix three). -
Page 4: Installation And Debug
W h e n m o b i l e t h e a u t o c l a v e , p l e a s e p u t t h e a u t o c l a v e a n d c o n t r o l t h e p o w e r disconnect, loosen the castor and carefully moving. - Page 5 Please make sure that the fixed socket and power plug of power line with same specification. Equipment use two phase three wire connection mode, please connect line according to equipment configuration connection way. Please do not arbitrarily change the connection mode. If you need, please contact us.
- Page 6 Working conditions Sterilizer is required to place in a indoor environment which is clean, dry, avoid light, ventilation, small temperature difference. The environment temperature 5 to 40 ℃ ℃ The relative humidity is not more than 85%. Avoid heavy dust, oil mist, containing conductive particles, corrosive gas,combustible gas environment.
- Page 7 If the experience and instruction for use the instructions in the manual does not match or not relates the situation, please timely contact with the manufacturers, to upgrade or update. Manual save to keep ventilation drying, avoid high humidity and temperature. 3.Summarize The product use scope Applicable to medical and health services, scientific research, agricultural and...
- Page 8 efficiency；using saturated steam as working medium to make sure effective sterilization in a short time. The autoclave is surrounded by dry plate so that it can dry the sterilization products effectively. The equipment is simple and easy to use, it can sterilizer completely, also has a built-in water tank and water and steam circulate inside, also save energy.
- Page 9 Air valve Exhaust cold air, increase degree of saturation, exhaust steam slowly for liquid sterilization water draining solenoid Drain and exhaust to the built-in circulation tank valve after sterilization sterilizing temperature controller Drying burning prevention function≤145±5 ℃ dry temperature Control the temperature of dry heating plate controller Buzzer Send the alerting and work end signal...
-
Page 10: Introduction To The Control Panel
dissolution Close the air Local pressure-2 ℃ （ Default 98 ℃ ）；Setting from（80- Note： discharge valve a. Parameters can be set except for the ℃ ） fixed ones. Drying phase starts when the time limit of 4 min for water discharge exhausts or the temp. - Page 11 If you want to terminate the process of sterilization , you can press the "Start / End" button to terminate the sterilization process. Custom programs can set sterilization temperature and sterilization time: Choose Program 6# or 7# first, then set as below. Sterilization temperature settings: Press the "temperature"...
- Page 12 After displaying "EATi", press the "▼" , "EWTi" will show. Press the "▲", "EATE" will show. Display "EWTi" said the drainage time, in seconds, press the "Start / End", shows the value and the button flashes, through "▲", "▼" to change the value, then press "Start / End"...
- Page 13 First measurement is at cryogenic temperatures (10-30) (can be replaced with an analog temperature sensor) to record the actual temperature T1,and temperature displayed is D1. Then measurement at the high temperature (100-130) (can be replaced with an analog temperature sensor) to record the actual temperature T2, D2 shows the temperature displayed Result (T2-T1) / (D2-D1) multiplies parameter K displayed on tEFA menu is obtained a new parameter...
- Page 14 ④ surface should be exposed to the various items, in order to facilitate access to all articles factor sterilizing surfaces with mesh containers should be opening down or on its side. ⑤ items sholud not be tied too tight ⑥ equipment package weight was no more than 7 kg, the weight of the fabric bag should exceed 5 kg.
- Page 15 ④ recommend using a dedicated configuration sterilization and loading rack and basket items. ⑤ Gap should be left between the sterile package, which will help the penetration factor sterilization. ⑥ large package of difficult sterilization should be placed in the upper , the smaller packet should be placed on the lower deck.
- Page 16 Once a week, check the steam air exhaust valve. Once a week, check valve. Periodic inspection Once a year, tightening fittings and detection-off state, should be completed by a professional electrician. Once, due to extreme wear and tear, lock device must be checked every five years. Instructions: This repair manual is to provide professionals.
- Page 17 5) until the pressure drop is 0MPa time before opening the door. 4. How to replace the safety valve Instructions: The only professional repair methods can be used. Unless you are a professional talent, otherwise avoid electric shock, equipment malfunction, be sure to consult the instructions and press the manual for repair, while the specification has been possible to provide professional maintenance methods.
- Page 18 opening the door by mistake. When water vapor have been released, the device will return to the initial position, then the door can be opened. 7.9. Filter Cleaning Located at the bottom of the device, the filter is used to filter out the impurities, ensuring pipeline smoothness and electromagnetic valve leak proof.
-
Page 19: Alarm Code
he door’s micro-switch loose, switch misplace Under the condition of 1.Control circuit of the heater 1.Check and change the shorts out or burns down damaged elements warming, Pressure and 2.pipe joint or safety valve 2.check, tighten the pipe joint, temperature do not rise, leaks seriously safety valve, etc or rise slowly... -
Page 20: Warranty
It doesn’t reach the set temperature The heater pipe is broken, Err 001 after 30 minute’s of pulsation exhaust have leakage phenomenon. air conditioning. It doesn’t reach the set temperature in The heater pipe is broken. Err 002 the exhaust air conditioning or the Improper set parameters failure pulsation in duct During the sterilization, temperature... - Page 21 Figure 1：Electrical Schematic Diagram Figure 2：PID Pipeline Schematic...
- Page 22 Figure 3：Vertical sterilizer packing list Serial Description Quantity Notes Number Equipment Operating instruction Pressure vessel Quality certificates The warranty card Conformity certificate Mesh basket Water fender Tank lid Seal ring Drain pipe...
