Electrical Connection - MRC Fuego SCS basic Operation Manual

The range: Fuego SCS
Stainless steel radio frequency foot pedal (Art.-No. 8.000.406-RF) (battery operated)
2 Mignon-Batteries (AA)
3 standard-programs for button (function knob) and foot pedal
SCS (Safety Control System)
BHC (Burner Head Control)
Removable and decomposable burner head
Tilt mechanism, right / left (23)
Holding device for 3 inoculation loop holders
Nozzles for natural gas, propane/butane gas
Turbo flame
Wrench 17 mm (21) for gas connection
Screwdriver (22) for burner head and
cover of the burner shaft
Tubing connector with swivel nut (24)
Power connection
Instruction manual and 2-year warranty

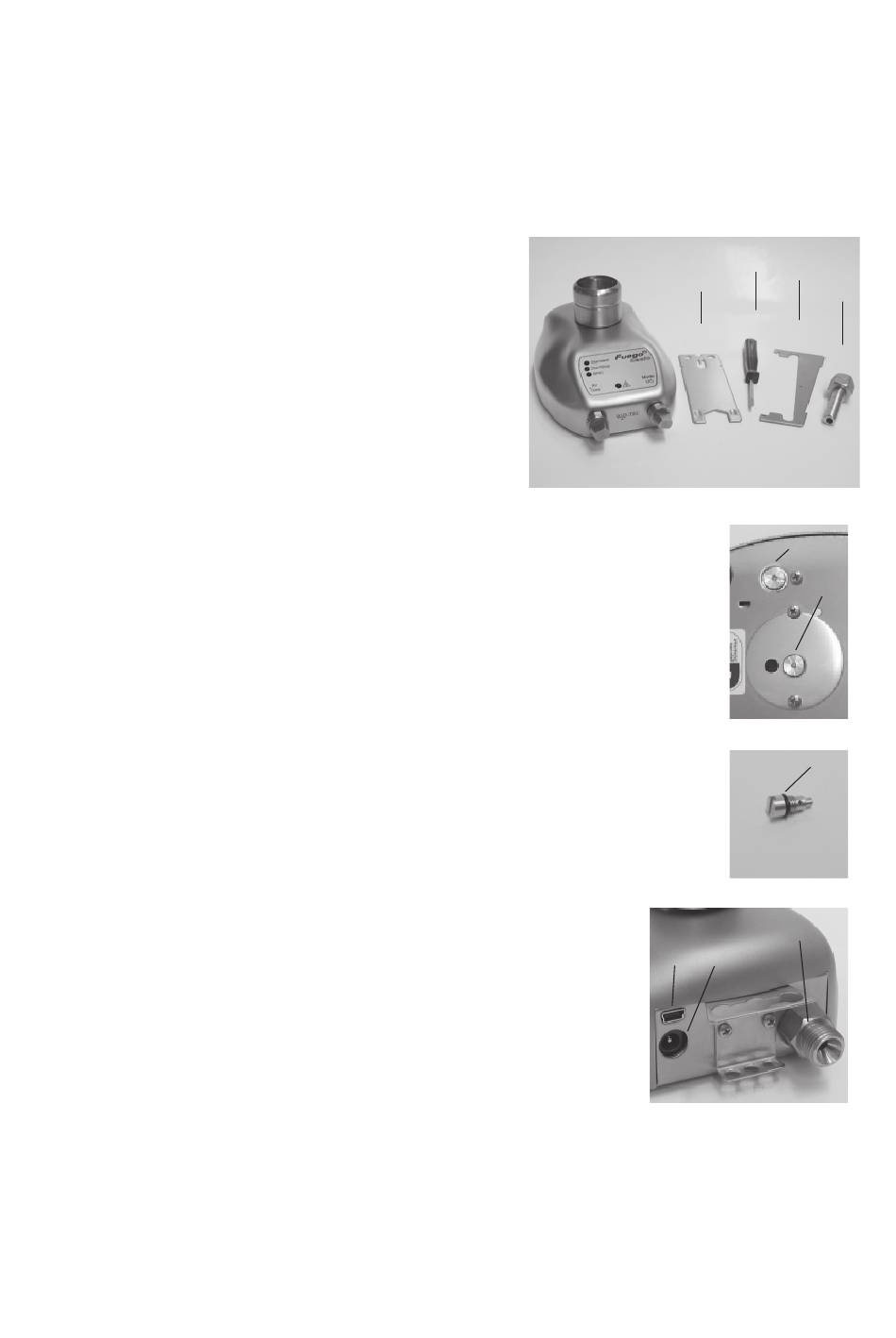

1. Setup Procedure:
The unit is shipped with the nozzle for natural gas (N) installed.
The nozzle must be changed if other gas is to be used.
Replacement procedure: Remove the Nozzle P from the nozzle holder (16)
with a coin or the edge of the wrench (21) by turning it counterclockwise.
Remove the active Nozzle N for natural gas (15) in the same way
and exchange the nozzles.
ATTENTION: Before mounting a nozzle check the O-Ring (20).
Replace the sealing if damaged or worn (Art.-No. 8.000.010).
Now you are ready to connect the gas supply to the gas inlet (10).
The correct pressure for natural gas is within the range of 18 - 25 mbar,
for propane/butane gas 28 - 57 mbar.
Only use DVGW or other gas approved safety tubings with thread
or tubing connectors (24). Check the condition of the tube/hose
frequently. Depending upon type of tube/hose, hose
clamps are required.
All gas connections must be adequately tightened with
the wrench (21) (SW 17mm, included). Ensure gas proofness
with a suitable test fluid / equipment. Do not seal
up the included tubing connector (24) and swivel nut
with Teflon tape etc.
A DVGW-proven or other gas approved pressure
regulator (50mbar) must be used for liquid gas.
Pay attention to your relevant rules for using liquid gas.

1.1 Electrical connection:

Insert the power cord into the socket (9) on the back panel of the unit,
or into the socket of the hard-wired foot pedal (optional).
The default supply must be connected to a voltage source of
100 - 240 V / 50/60 Hz.
RF
basic Art.-No. 8.003.000 - RF
22
23
21
24
16
15
20
10
8
9
