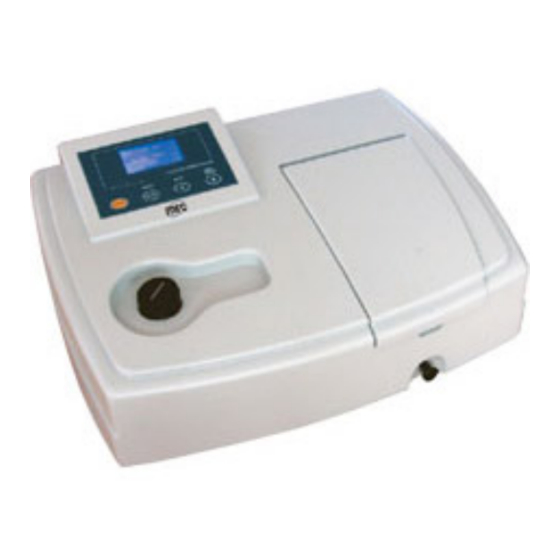

Operation Manual for
SPECTROMETER
SPECTRO-V11D
PLEASE READ THIS MANUAL CAREFULLY BEFORE OPERATION
Hagavish st. Israel 58817 Tel: 972 3 5595252, Fax: 972 3 5594529 mrc@mrclab.com ,3
MRC.VER.01-5.23

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPECTRO-V11D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for MRC SPECTRO-V11D

  • Page 1 Operation Manual for SPECTROMETER SPECTRO-V11D PLEASE READ THIS MANUAL CAREFULLY BEFORE OPERATION Hagavish st. Israel 58817 Tel: 972 3 5595252, Fax: 972 3 5594529 mrc@mrclab.com ,3 MRC.VER.01-5.23...
  • Page 2: Table Of Contents

    Contents Safety ……….……………………………………………………………………. General …………………………………………….…….………………………. Electrical ………………………………………………..……………………….. Warning ………………………………………….…….………………………… Working Principle…..………………………….………………………………… Unpacking Instructions ……………………………….………………………… Specifications…..…………………………………………..…..……….……………3 Installation …………………………………………………………..………………. 4 Instrument Introduction………………………………………….…………………..4 Appearance……………………………………………………………………….4 Operating Panel…………………………………………………………………..5 Button Description………………………………………………………..……...6 Instrument Operation…………………….……………………….….…..………….6 Local Software Structure…………… ………………….….…..…………….6 Basic operation……………………………………….………..……………….6 Measurement………..…………………………………………….…………………7 Measure the Absorbance…………………………………….…..…....7 Measure the Transmittance……………………………………………………8 Two-points Method……………………………………………………………..9 Coefficient Method……………………………………………………………...10 Troubleshooting……………………………………………….…….………..………22...
  • Page 3: Safety

    Safety: The safety statements in this manual comply with the requirements of the HEALTH AND SAFETY AT WORK ACT, 1974. Read the following before installing and using the instrument and its accessories. The V11D should be operated by appropriate laboratory technicians. General: The apparatus described in this manual is designed to be used by properly trained personnel in a suitable equipped laboratory.
  • Page 4: Working Principle

    Shows visible damage Fails to perform the intended measurements Has been subjected to prolonged storage under unfavorable conditions Has been subjected to severe transport stresses Working Principle: The spectrophotometer consists of five parts: 1) Halogen or deuterium lamp to supply the light; 2) A Mono-chromator to isolate the wavelength of interest and eliminate the unwanted second order radiation;...
  • Page 5: Unpacking Instructions

    Packing List Description Quantity Spectrophotometer ............. Mains Lead ................Cuvettes................1 Set of 4, glass Manual .................. Specifications: SPECTRO-V11D Model Wavelength Range 325-1000nm Spectral Bandwidth Optical System Single Beam, Grating 1200lines/mm Wavelength Accuracy ±2nm Wavelength Repeatability Wavelength Resolution 0.5nm...
  • Page 6: Installation

    Remove any obstructions or materials that could hinder the flow of air under and around the instrument. Use the appropriate power cord and plug into a grounded outlet. Turn on the instrument of SPECTRO-V11D, it begins to self test. After that and 20min. ̀ pre-warm, you can take any readings. NOTE: This symbol means Caution, Risk of Danger.
  • Page 7: Operating Panel

    4 — Operating Panel 5 — Wavelength Knob 6 — USB Port 7 — Print Port 8 — Fan Cover 9 — Power Socket 10— Power Switch 2. Operating Panel Please see the panel of SPECTRO-V11D (Fig. 3-2) Fig. 3-2 - 5 -...
  • Page 8: Button Description

    1 — LCD (128 X 64) 2 — Key Button 3. Button Description Switch the Photometric Mode Confirm/Print Decrease Number/Set Zero Increase Number/Set 100%T Instrument Operation 1. Local Software Structure Please see Fig. 4-1: 图 4-1 2. BASIC OPERATION Select Test Mode Press to select the test mode.
  • Page 9: Measurement

    Close the lid of the compartment and press to calibrate Zero. 5) Calibrate 100%T Pull the Reference in the light path, press to calibrate 100%T。 6) Print the result Press the Button of to print the test result. Measurement 1. Measure the Absorbance to choose A mode (Fig.4-1)...
  • Page 10: Measure The Transmittance

    Fig. 4-3 5) Press to print the test result; 6) Repeat Step 4) and step 5) to test other unknown concentration samples. 2. Measure the Transmittance to choose the mode of “T”(Fig. 4-4) ; 1) Press Fig. 4-4 2) Turn the Wavelength Knob to set the wavelength at the point you want; to calibrate 100%T(Fig.
  • Page 11: Two-Points Method

    Fig. 4-6 5) Press to print the test result; 6) Repeat step 4 and step 5 to test other samples. 3. Two-point Method If you have known a Standard Sample’s concentration, and you want to know another sample’s concentration, you can use this method. 1) Choose “A”...
  • Page 12: Coefficient Method

    Fig. 4-8 6) Press to print the test result. 7) Repeat step5) and step 6) to test other samples. 4. Coefficient Method 1) Turn the Wavelength Knob to set the wavelength at the point you need. 2) Press to choose“F” Mode. 3) Press to set the coefficient value of K and B, followed with pressed to confirm.
  • Page 13 5) Pull the samples in the light path. Then its concentration will be displayed on the screen. automatically (Fig.4-11) Fig. 4-11 6) Press to print the test result. 7) Repeat step 5) and step 6) to measure other samples. - 11 -...
  • Page 14: Troubleshooting

    Troubleshooting PROBLEM Possible Cause Solution functioning Power cord not connected to outlet Plug instrument in after power Dead Power outlet Change to a different outlet on . Internal fuse melted or defective Change fuse or call an authorized electronic component service engineer Instrument Light beam blocked:...
