- Page 1 Operation Manual for Multi-Tubbe Vortexer SI-600 PLEASE READ THIS MANUAL CAREFULLY BEFORE OPERATION 3, Hagavish st. Israel 58817 Tel: 972 3 5595252, Fax: 972 3 5594529 mrc@mrclab.com MRC.VER.01-8.12...
- Page 2 Foreword Thank you for purchasing our Products: Multi-Tube Vortexer. This Manual for users contains function and operation of the Instrument. In order to use the instrument properly, please read this manual carefully before using the Instrument. Opening Check Please check the Instrument and Appendix with the packing list when you first open the instrument packing case.
- Page 3 Safety Warnings and Guidelines 1. Important operation information of the security: Before the users’ operation, they should have a perfect conception of how to use the Instrument. Therefore, read this Manual carefully before using it. Operation before reading the Manual is forbidden. Read the guidelines and directions below and carry out the countermeasure according to them.
- Page 4 Before power on, guarantee the voltage used should be accordant to the voltage needed, and the rated load of electrical outlet should not lower than the demand. If the electric line is damaged, you should replace it with the same type. You should assure there’s nothing on the electric line and you should not put the electric line in the ambulatory place.
-
Page 5: Table Of Contents
4. Exchangeable Tube Foam Rack--------------------------------------------- 5 Chapter 4 Operation Guide ------------------------------------------------------------------- 6 1. Speed and time setting -------------------------------------------------------- 6 2. Key combination ----------------------------------------------------------------- 7 3. Pulsing mode-----------------------------------------------------------------------8 Chapter 5 Failure analysis and handling ------------------------------------------------ 9 ANNEX 1. Wiring Diagram for SI-600……………………………………………...10... -
Page 6: Chapter 1 Introduction

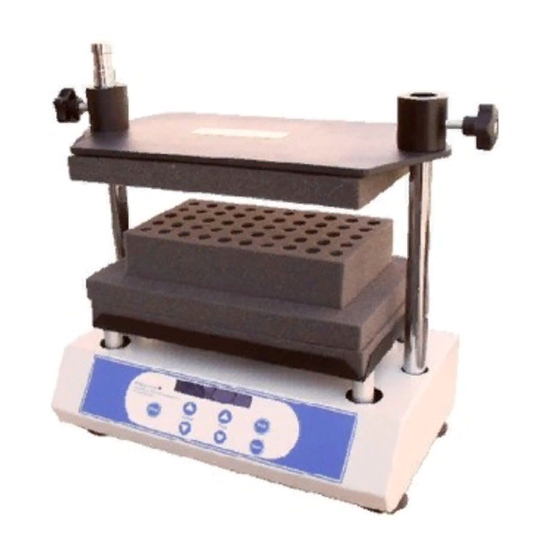

SI-600 Multi-tube Vortexer Chapter 1 Introduction Chapter 1 Introduction The Multitube Vortexer is designed for mechanical and chemical cell lysis, mixing suspensions, and general sample agitation. This vortex mixer gives a distinctly different motion than shaking a sample. With vortexing, greater shearing forces are placed on materials in the bottom of a tube, thus promoting either disruption or solubility. -
Page 7: Chapter 2 Specifications
SI-600 Multi-tube Vortexer Chapter 2 Specification Chapter 2 Specifications 1. The normal operating condition: Ambient temperature： ： ： ： 4° ° ° ° C ～ ～ ～ ～ 45° ° ° ° C The relative humidity: ≤70% Power supply： ： ： ： AC100-240V 1.5A 2. -
Page 8: Chapter 3 Preparations
SI-600 Multi-tube Vortexer Chapter 3 Preparations Chapter 3 Preparations This chapter introduces Multi-Tube Vortexer’s mechanical structure and the central panel’s functions and some preparations before power-on. You should be familiar with this chapter before the Multi-Tube Vortexer is first operated. -
Page 9: Keyboard And Display Panel
SI-600 Multi-tube Vortexer Chapter 3 Preparations Keyboard and Display panel Short mix key: the machine mixes in the highest speed by Short pressing this key continuously, and will stop running when leaving go of it. Start key, short pressing this key to start the procedure... -
Page 10: Power Connection
SI-600 Multi-tube Vortexer Chapter 3 Preparations 3. Power connection Place the Multi-Tube Vortexer on a level bench or table. Plug the extend power supply unit into the socket at the rear side of the machine. The external power supply unit (power adapter AC100-240V) ensures the external safety of the unit. -
Page 11: Chapter 4 Operation Guide
SI-600 Multi-tube Vortexer Chapter 4 Operation Guide Chapter 4 Operation Guide 1. Shaking speed and timing setting 8888 8888 8888 8888 88:88 88:88 88:88 88:88 a) When the instrument powers on, display screen will show “ ” one by one with the sound of “du…”. -
Page 12: Key Combination
SI-600 Multi-tube Vortexer Chapter 4 Operation Guide e) If you want to set speed 2400rpm and timing 2hours, press Speed’s “ ” key, and the set value 2400 2400 09:30 09:30 2400 2400 09:30 09:30 will be increase to 2400rpm. Keep off the key, the device will save the value automatically. -
Page 13: Pulsing Mode
SI-600 Multi-tube Vortexer Chapter 4 Operation Guide 4. Pulsing mode Press “Stop” and “Short” key simultaneously 2400 2400 2400 2400 02:00 02:00 02:00 02:00 into pulsing mode, then the sign disappear and red light is on. b) Press Speed’s or Time’s “ ” key and “ ” key to set the pulsing speed and time. -
Page 14: Chapter 5 Failure Analysis And Handling
SI-600 Multi-tube Vortexer Chapter 5 Failure analysis and handling Chapter 5 Failure analysis and handling Failure analysis and processing procedures No. Phenomenon Cause Remedy No power Check the connection of power Switch Failure Exchange the switch No display Others Contact the seller... -
Page 15: Annex 1. Wiring Diagram For Si-600
SI-600 Multi-tube Vortexer Annex 1 Annex 1： ： ： ： Wiring Diagram for SI-600 Multi-Tube Vortexer AC100V ~ AC240V J2 DC24V Main Board M otor PORT1 ─ ─...
