Steelcase c:scape Low Storage Series Assembly Instructions Manual page 4

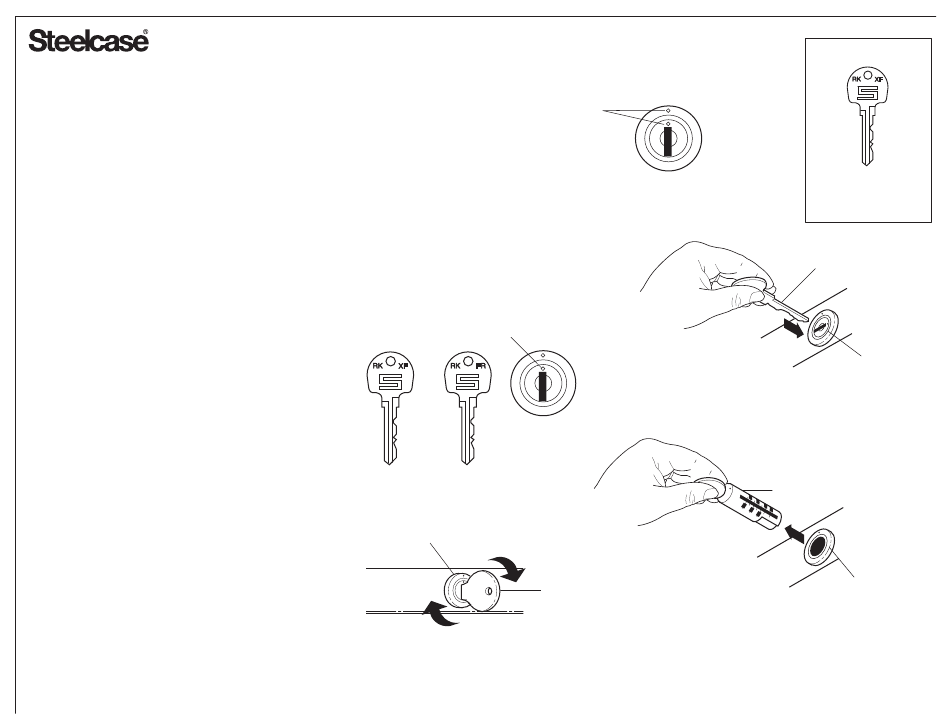

Front Removal of Lock Cylinder
1.
Turn lock plug to unlocked position with
conventional key.
2.
Insert removal tool into lock cylinder.
3.
Rotate lock cylinder assembly slightly in a
counter clockwise direction while at the same
time pulling on removal tool, thus removing the
lock cylinder from the lock assembly.
4.
At this time the mechanism inside the lock
assembly may rotate back to the locked position
preventing the installation of new lock plug. If
this occurs, insert a flat-bladed screwdriver into
the back of lock assembly and turn clockwise
unlocking the lock assembly. Insert tool into new
lock plug assembly. Hold tool in a horizontal
position and insert new lock plug assembly into
lock assembly. It may be necessary to hold the
new plug assembly with finger while removing
tool.
A FRONT REMOVAL
LOCK CYLINDER CAN
BE IDENTIFIED WITH
A SMALL DIMPLE
LOCATED DIRECTLY
ABOVE THE KEY SLOT
DIMPLE LOCATED ON FRONT
OF LOCK CYLINDER ASSEMBLY
TOOL RK-XF TOOL RK-FR
LOCK SHOWN IN LOCKED POSITION
STANDARD KEY OR MASTER KEY
REMOVAL TOOL
REMOVAL TOOL
LOCK
CYLINDER
ASSEMBLY
LOCK CYLINDER ASSEMBLY
LOCK
ASSEMBLY
Page 4 of 15
939500368 Rev K
