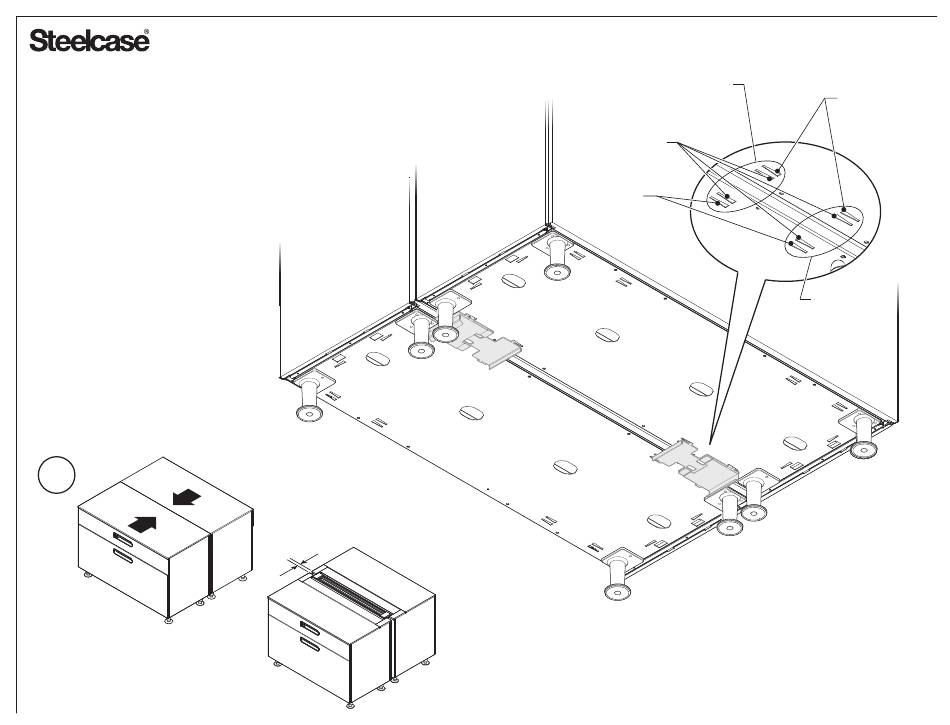

Ganging Low Storage
Cases Together:
Back-to-Back
1.
Align cases and slide together.
NOTE: The ganging bracket will
accomodate a tight fit or a 1" gap.
2.
For a tight fit use the outboard
set of slots and for a 1" gap use
the inboard set of slots.
See previous page for the next
steps to engage and disengage.
1
or
1" GAP
REAR SLOTS
INBOARD SLOTS
FOR 1" GAP
OUTBOARD SLOTS
FOR TIGHT FIT
NOTE: Ganging bracket provides
visual alignment only. They do not
provide structural stability.
OUTBOARD SLOTS
FOR TIGHT FIT
FRONT SLOTS
