Introduction
1.2 Description
•
1.2

Description

The RUGGEDCOM RST2228 features various ports, controls and indicator LEDs for
connecting, configuring and troubleshooting the device.
Orientation Options
The RUGGEDCOM RST2228 is available in one of two options:
•
2
Conformal coated printed circuit boards (optional)
Option 1
Status panel, alarm LED, ACO Button, CLP port and USB console port are located
on the front panel.
5
1
2
3 4 6
Status Panel
1
ACO Button
2
CLP Port
3
USB Console Port
4
Failsafe Alarm Relay Terminal Block
5
Power Terminal Block
6
SFP/SFP+ Transceiver Sockets
7
Media Modules
8
Chassis Ground Terminal
9

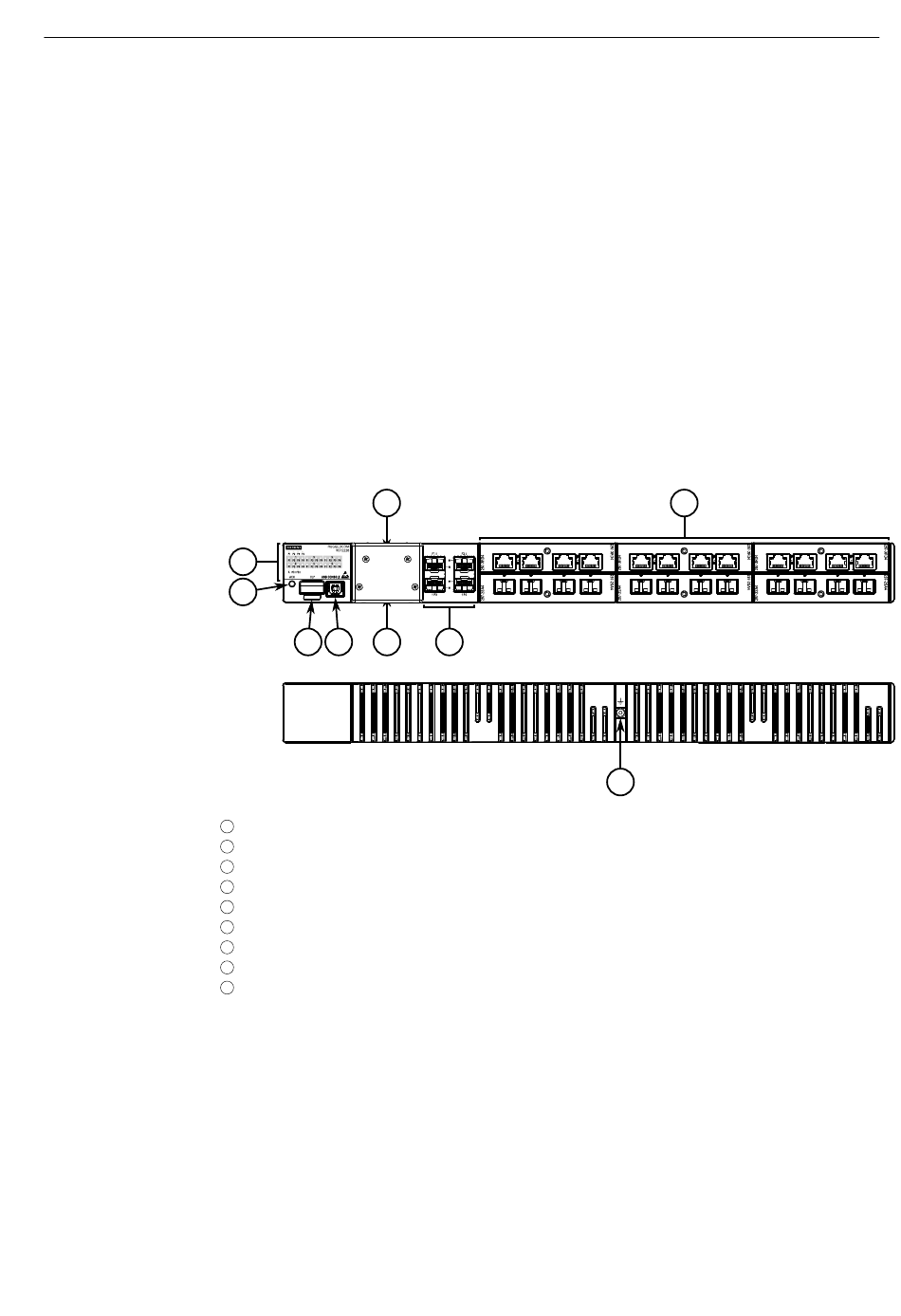

Figure 1.1 RUGGEDCOM RST2228 (Front Panel Orientation)
7
8
9
RUGGEDCOM RST2228
Installation Manual, 08/2020, C79000-G8976-1359-10
