Mounting The Device To A Rack - Siemens SIMATIC NET RUGGEDCOM RST2228 Installation Manual

Heat generated by the device is channeled outwards from the enclosure. As such, it
is recommended that 2.5 cm (1 in) of space be maintained on all open sides of the
device to allow for some convectional airflow.
Forced airflow is not required. However, any increase in airflow will result in a
reduction of ambient temperature and improve the long-term reliability of all
equipment mounted in the rack space.
Note
For detailed dimensions of the device with either rack or panel hardware installed,
refer to
2.3.1

Mounting the Device to a Rack

The RUGGEDCOM RST2228 can be secured to a standard 48 cm (19 in) rack using
separately purchased rack mount adapters. The adapters can be installed at the front
or rear of the chassis.
Each adapter kit includes four adapters.
To secure the device to a rack, do the following:
1.
2.
RUGGEDCOM RST2228
Installation Manual, 08/2020, C79000-G8976-1359-10
NOTICE
"Dimension Drawings (Page
Secure the mounting adapters to both sides of the chassis.
Mounting Adapter
1
Screw
2

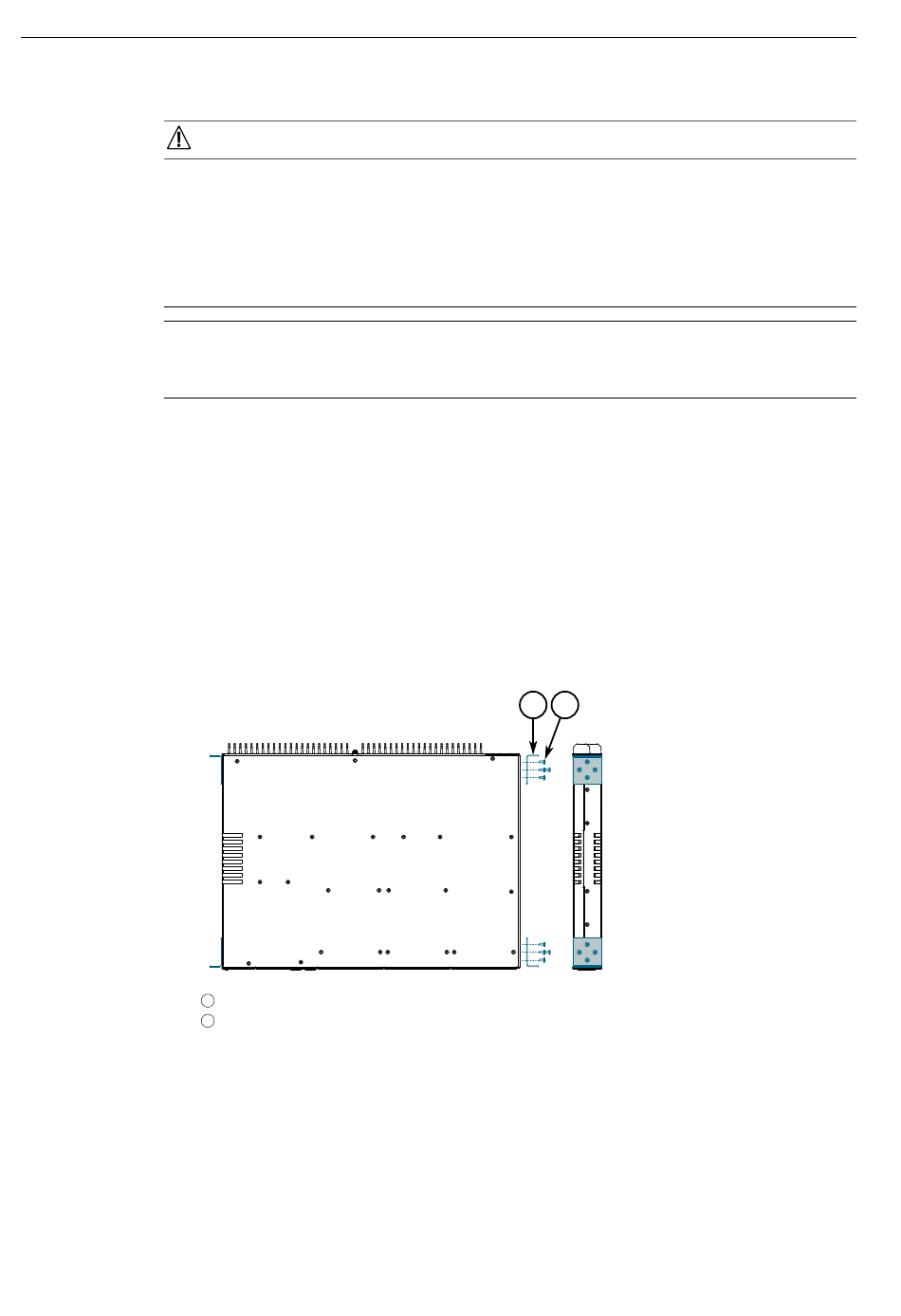

Figure 2.1 Installing the Mounting Adapters
Insert the device into the rack. To make the modules and ports accessible from
the front, insert the power supply side of the device first. Reverse the orientation
2.3.1 Mounting the Device to a Rack
36)".
1 2
