  • Page 1 Edition 11/2023 Equipment Manual SIMATIC NET Rugged Ethernet switches RUGGEDCOM RS900 https://www.siemens.com/ruggedcom...
  • Page 2 Preface Introduction Installing the Device SIMATIC NET Device Management Rugged Ethernet switches RUGGEDCOM RS900 Communication Ports Technical Specifications Equipment Manual Certification 11/2023 C79000-G8976-1024-16...
  • Page 3 Note the following: WARNING Siemens products may only be used for the applications described in the catalog and in the relevant technical documentation. If products and components from other manufacturers are used, these must be recommended or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any problems.

  • Page 4: Table Of Contents

    SIMATIC NET glossary ......................vi Registered trademarks ......................vi Warranty ..........................vii Training ..........................vii Customer support ......................... viii Contacting Siemens ......................viii Introduction ........................... 1 Feature Highlights ....................1 Description ......................2 Required Tools and Materials ................. 3 Decommissioning and disposal ................3 Cabling Recommendations ..................
  • Page 5 Table of contents General specifications ..................25 Power Supply Specifications ................25 Failsafe Alarm Relay Specifications ..............25 Supported Networking Standards ................ 26 Copper Ethernet Port Specifications ..............26 Fiber Optic Ethernet Port Specifications ............... 26 Operating Environment ..................27 Mechanical Specifications ..................

  • Page 6: Preface

    Siemens' products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer's exposure to cyber threats.

  • Page 7: Supplementary Documentation

    SIMATIC NET glossary The SIMATIC NET glossary describes special terms that may be used in this document. The glossary is available online via Siemens Industry Online Support (SIOS) at: https://support.industry.siemens.com/cs/ww/en/view/50305045 Registered trademarks The following and possibly other names not identified by the registered trademark sign ®...

  • Page 8: Warranty

    Warranty Siemens warrants this product for a period of five (5) years from the date of purchase, conditional upon the return to factory for maintenance during the warranty term. This product contains no user-serviceable parts. Attempted service by unauthorized personnel shall render all warranties null and void.

  • Page 9: Customer Support

    Call a local hotline center to submit a Support Request (SR). To locate a local hotline center, visit https://w3.siemens.com/aspa_app/?lang=en. Mobile app Install the Industry Online Support app by Siemens AG on any Android, Apple iOS or Windows mobile device and be able to: •...

  • Page 10: Introduction

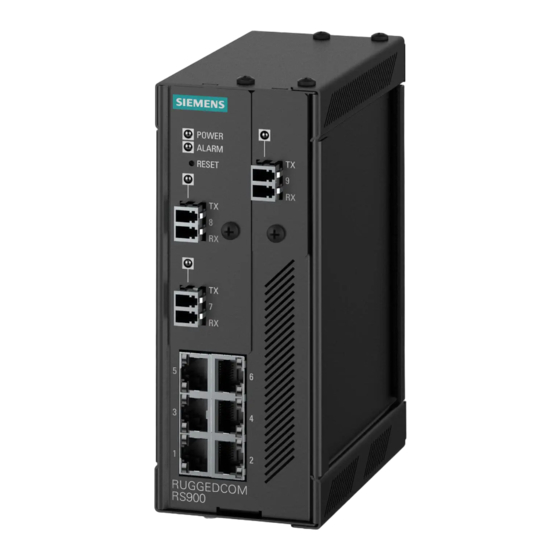

    Introduction The RUGGEDCOM RS900 is a 9-port utility-grade, fully managed Ethernet switch specifically designed to operate reliably in electrically harsh and climatically demanding environments. The RUGGEDCOM RS900 provides a high level of immunity to electromagnetic interference and heavy electrical surges typical of environments found on plant floors and curb-side traffic control cabinets.

  • Page 11: Description

    Introduction 1.2 Description • DIN or panel mounting options provide secure mechanical reliability • [Optional] Conformal coated printed circuit boards Power Supply • Fully integrated power supply • Universal high-voltage range: 88-300 VDC or 85-264 VAC • Dual LO DC inputs: 24 or 48 VDC •...

  • Page 12: Required Tools And Materials

    Introduction 1.3 Required Tools and Materials POWER LED Illuminates green during boot up and when power is supplied to the device. ALARM LED Illuminates red when an alarm condition exists. Console Port The serial console port is for interfacing directly with the device and accessing initial management functions.

  • Page 13: Cabling Recommendations

    Siemens also does not recommend using copper Ethernet ports to interface with devices in the field across distances that could produce high levels of ground potential rise (i.e. greater than 2500 V), during line-to-ground fault conditions.
  • Page 14 Introduction 1.5.1 Supported fiber optic cables Cable Type Wavelength (nm) Modal Bandwidth Distance (m) (MHz·km) 100Base-FX 1000Base-SX 10GBase-SR 1300 2000 — — Laser optimized. RUGGEDCOM RS900 Equipment Manual, 11/2023, C79000-G8976-1024-16...
  • Page 15 Introduction 1.5.1 Supported fiber optic cables RUGGEDCOM RS900 Equipment Manual, 11/2023, C79000-G8976-1024-16...

  • Page 16: Installing The Device

    Installing the Device This chapter describes how to install the device, including mounting the device, connecting power, and connecting the device to the network. DANGER Electrocution hazard – risk of serious personal injury and/or damage to equipment Before performing any maintenance tasks, make sure all power to the device has been disconnected and wait approximately two minutes for any remaining energy to dissipate.

  • Page 17: General Procedure

    This product contains no user-serviceable parts. Attempted service by unauthorized personnel shall render all warranties null and void. Changes or modifications not expressly approved by Siemens Canada Ltd. could invalidate specifications, test results, and agency approvals, and void the user's authority to operate the equipment.

  • Page 18: Mounting The Device

    Installing the Device 2.3 Mounting the Device Note If any item is missing or damaged, contact Siemens for assistance. Mounting the Device The RUGGEDCOM RS900 is designed for maximum mounting and display flexibility. It can be equipped with adapters that allow it to be attached to a DIN rail or panel.
  • Page 19 Installing the Device 2.3.1 Mounting the Device on a DIN Rail DIN Rail DIN Rail Adapter Figure 2.1 Mounting the Device to a DIN Rail Insert a flathead screwdriver into the slot of the sliding release and move it down. Push the device against the bottom of the DIN rail, then let go of the sliding release to latch the device.

  • Page 20: 2.3.2 Mounting The Device To A Panel

    Installing the Device 2.3.2 Mounting the Device to a Panel DIN Rail DIN Rail Adapter Figure 2.2 Removing the Device from a DIN Rail Swing the bottom of the device away from the DIN rail. Lift the device off the DIN rail. 2.3.2 Mounting the Device to a Panel For panel installations, the RUGGEDCOM RS900 can be equipped with panel adapters...

  • Page 21: Connecting The Failsafe Alarm Relay

    Installing the Device 2.4 Connecting the Failsafe Alarm Relay Screw (M3.5 or #6-32) Panel Mount Adapter Figure 2.3 Panel Mounting Secure the adapters to the panel with M3.5 or #6-32 screws. Connecting the Failsafe Alarm Relay The failsafe relay can be configured to latch based on alarm conditions. The NO (Normally Open) contact is closed when the unit is powered and there are no active alarms.

  • Page 22: Connecting Power

    Installing the Device 2.5 Connecting Power Normally Closed Common Normally Open Figure 2.4 Failsafe Alarm Relay Wiring Connecting Power The RUGGEDCOM RS900 supports power input from a single high AC/DC or low DC power supply. Note • For 110/230 VAC rated equipment, an appropriately rated AC circuit breaker must be installed.

  • Page 23: 2.5.1 Connecting High Ac/Dc Power

    Installing the Device 2.5.1 Connecting High AC/DC Power 2.5.1 Connecting High AC/DC Power To connect a high AC/DC power supply to the device, do the following: NOTICE Electrical hazard – risk of damage to equipment Do not connect AC power cables to terminals for DC power. Damage to the power supply may occur.

  • Page 24: 2.5.2 Connecting Low Dc Power

    Installing the Device 2.5.2 Connecting Low DC Power Braided Ground Cable Figure 2.5 Terminal Block Wiring ± ± ± ± Positive Terminal Negative Terminal Surge Ground Terminal Braided Ground Cable Figure 2.6 Terminal Block Wiring – Dual DC Power Supply Inputs Connect the negative wire from the power source to the negative/neutral (-/N) terminal on the terminal block.
  • Page 25 Installing the Device 2.5.2 Connecting Low DC Power Connect the positive wire from the power source to the positive terminal on the terminal block. ± ± Positive Terminal Negative Terminal Surge Ground Terminal Braided Ground Cable Figure 2.7 Terminal Block Wiring – Single DC Power Supply Inputs Connect the negative wire from the power source to the negative terminal on the terminal block.
  • Page 26 Installing the Device 2.5.2 Connecting Low DC Power ± ± ± ± Positive Terminal Negative Terminal Surge Ground Terminal Braided Ground Cable Figure 2.8 Terminal Block Wiring – Dual DC Power Supply Inputs Using a braided wire or other appropriate grounding wire, connect the surge ground terminal to the chassis ground connection.
  • Page 27 Installing the Device 2.5.2 Connecting Low DC Power RUGGEDCOM RS900 Equipment Manual, 11/2023, C79000-G8976-1024-16...

  • Page 28: Device Management

    Device Management This section describes how to connect to and manage the device. Connecting to the Device The following describes the various methods for accessing the RUGGEDCOM RS900 console and Web interfaces on the device. For more detailed instructions, refer to the "RUGGEDCOM ROS Configuration Manual"...

  • Page 29: Configuring The Device

    Device Management 3.2 Configuring the Device The serial console port implements RS232 DCE (Data Communication Equipment) on a DB9 connector. The following is the pin-out for the port:   Name Description Reserved (Do Not Connect) Transmit Data Receive Data Reserved (Do Not Connect) Signal Ground Reserved (Do Not Connect) Reserved (Do Not Connect)

  • Page 30: Communication Ports

    Communication Ports The RUGGEDCOM RS900 can be equipped with various types of communication ports to enhance its abilities and performance. Ports 1 to 6 Ports 7 and 8 Port 9 Figure 4.1 Port Assignment Port Type 1 to 6 Copper Ethernet Ports (10/100Base-TX) 7 and 8 Copper (10/100Base-TX) or Fiber Optic (100Base-FX) Ethernet Ports Fast Ethernet Port (10/100Base-TX or 100Base-FX)
  • Page 31 Communication Ports 4.1 Copper Ethernet Ports WARNING Electric shock hazard – risk of serious personal injury and/or equipment interference When shielded cables are used, make sure the shielded cables do not form a ground loop via the shield wire and the RJ45 receptacles at either end. Ground loops can cause excessive noise and interference, but more importantly, create a potential shock hazard that can result in serious injury.

  • Page 32: Fiber Optic Ethernet Ports

    Communication Ports 4.2 Fiber Optic Ethernet Ports Name Description Reserved (Do Not Connect) Transmit Data- Reserved (Do Not Connect) Reserved (Do Not Connect) Specifications For specifications on the available copper Ethernet ports, refer to "Copper Ethernet Port Specifications" (Page 26). Fiber Optic Ethernet Ports Fiber optic Ethernet ports are available with either MTRJ (Mechanical Transfer Registered Jack), LC (Lucent Connector), SC (Standard or Subscriber Connector) or ST (Straight Tip) connectors.
  • Page 33 Communication Ports 4.2 Fiber Optic Ethernet Ports State Description Yellow (Blinking) Link activity No link detected Specifications For specifications on the available fiber optic Ethernet ports, refer to "Fiber Optic Ethernet Port Specifications" (Page 26). RUGGEDCOM RS900 Equipment Manual, 11/2023, C79000-G8976-1024-16...

  • Page 34: Technical Specifications

    Technical Specifications This section provides important technical specifications related to the device. General specifications Insulation Class I Overvoltage category OVC II Power Supply Specifications Note When determining cable lengths, make sure the nominal input voltage for the power supply is provided at the power source. Power Input Voltage Internal...

  • Page 35: Supported Networking Standards

    3 dBm. To convert from peak to average, subtract 3 dBm. • Maximum segment length is greatly dependent on factors such as fiber quality, and the number of patches and splices. Consult a Siemens sales associate when determining maximum segment distances. RUGGEDCOM RS900...

  • Page 36: Operating Environment

    Technical Specifications 5.7 Operating Environment Tx (dBm) Power Connector Tx λ Cable Distance Mode Sensitivity Saturation Budget Type (nm) Type (μm) Minimum Maximum (km) (dBm) (dBm) (dB) 50/125 -22.5 -33.5 MTRJ 1300 62.5/125 -33.5 14.5 50/125 -22.5 -33.9 11.4 1300 62.5/125 -33.9 14.9 50/125...

  • Page 37: Dimension Drawings

    Technical Specifications 5.9 Dimension Drawings Dimension Drawings Note All dimensions are in millimeters, unless otherwise stated. 65.3 116.59 7.87 Figure 5.1 Overall Dimensions RUGGEDCOM RS900 Equipment Manual, 11/2023, C79000-G8976-1024-16...
  • Page 38 Technical Specifications 5.9 Dimension Drawings 130.2 13.64 101.6 11.2 78.74 120.65 Figure 5.2 Panel and DIN Rail Mount Dimensions RUGGEDCOM RS900 Equipment Manual, 11/2023, C79000-G8976-1024-16...
  • Page 39 Technical Specifications 5.9 Dimension Drawings RUGGEDCOM RS900 Equipment Manual, 11/2023, C79000-G8976-1024-16...

  • Page 40: Certification

    Assessed (UKCA) marking. The marking is printed on the body of the device. 6.1.2 European Union (EU) This device is declared by Siemens Canada Ltd. to comply with essential requirements and other relevant provisions of the following EU directives: •...

  • Page 41: 6.1.3 Fcc

    Title 21 Code of Federal Regulations (CFR) – Chapter I – Sub-chapter J – Radiological Health 6.1.5 ISED This device is declared by Siemens Canada Ltd. to meet the requirements of the following ISED (Innovation Science and Economic Development Canada) standard: • CAN ICES-3 (A)/NMB-3 (A)

  • Page 42: Tüv Süd

    Act 1997 The device is marked with an RCM symbol to indicate compliance when sold in the Australian region. A copy of the Declaration of Conformity is available via Siemens Industry Online Support at https://support.industry.siemens.com/cs/ww/en/view/89855782. RUGGEDCOM RS900 Equipment Manual, 11/2023, C79000-G8976-1024-16...

  • Page 43: Rohs

    Certification 6.1.9 RoHS 6.1.9 RoHS This device is declared by Siemens Canada Ltd. to meet the requirements of the following RoHS (Restriction of Hazardous Substances) directives for the restricted use of certain hazardous substances in electrical and electronic equipment: • EU RoHS Directives (EU) 2011/65 and (EU) 2015/863 European Directive for Restriction of Hazardous Substances •...
  • Page 44 Certification 6.2 EMC and Environmental Type Tests Test Description Test Levels Severity Levels DC Power ± 4 kV Ports AC Power ± 4 kV Ports Earth ± 4 kV Ground Ports Surge Signal Ports ± 4 kV Line-to-Ground 61000-4-5 ± 2 kV DC Power ±...
  • Page 45 Certification 6.2 EMC and Environmental Type Tests Test Description Test Levels Severity Levels Dielectric Strength Signal Ports 2 kV (Failsafe Relay Output)   60255-27 DC Power 1.5 kV   Ports AC Power 2 kV   Ports HV Impulse Signal Ports 5 kV (Failsafe Relay Output)  ...
  • Page 46 Certification 6.2 EMC and Environmental Type Tests Environmental Type Tests Test Description Test Levels Severity Levels IEC 60068-2-1 Cold Temperature Test Ad -40 °C (-40   °F), 16 Hours IEC 60068-2-2 Dry Heat Test Bd 85 °C (185   °F), 16 Hours IEC 60068-2-30 Humidity (Damp Test Db...
  • Page 47 Certification 6.2 EMC and Environmental Type Tests RUGGEDCOM RS900 Equipment Manual, 11/2023, C79000-G8976-1024-16...
  • Page 48 For more information Siemens RUGGEDCOM https://www.siemens.com/ruggedcom Industry Online Support (service and support) https://support.industry.siemens.com Industry Mall https://mall.industry.siemens.com Siemens Canada Ltd. Digital Industries Process Automation 300 Applewood Crescent Concord, Ontario, L4K 4E5 Canada © 2023 Siemens Canada Ltd. Subject to change...
