Installation

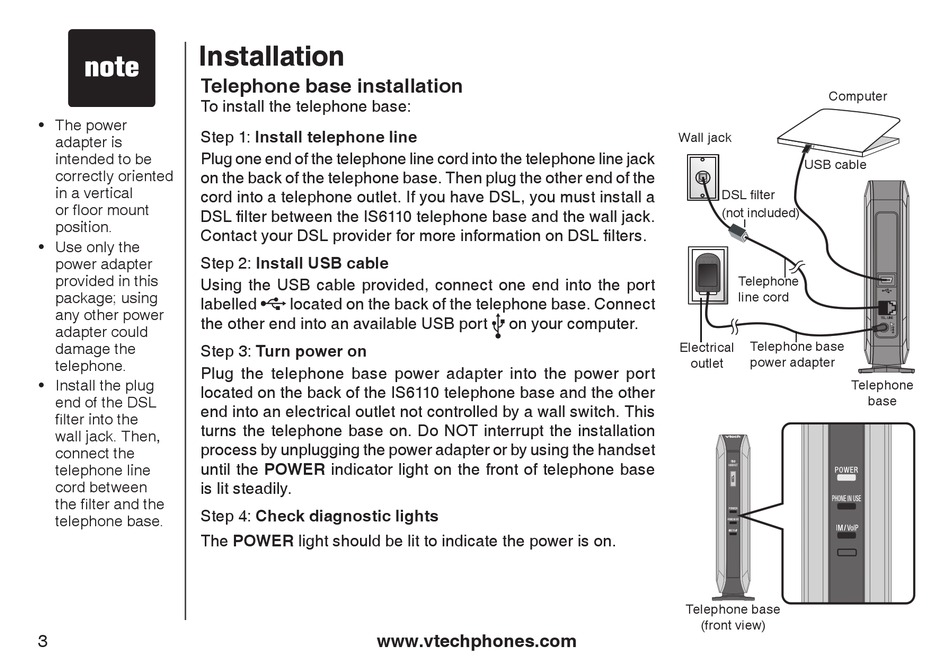

Telephone base installation

To install the telephone base:
�� The power
Step 1: Install telephone line
adapter is
Plug one end of the telephone line cord into the telephone line jack
intended to be
correctly oriented
on the back of the telephone base. Then plug the other end of the
in a vertical
cord into a telephone outlet. If you have DSL, you must install a
or floor mount
DSL filter between the IS6110 telephone base and the wall jack.
position.
Contact your DSL provider for more information on DSL filters.
�� Use only the
Step 2: Install USB cable
power adapter
provided in this
Using the USB cable provided, connect one end into the port
package; using
labelled
any other power
the other end into an available USB port
adapter could
damage the
Step 3: Turn power on
telephone.
Plug the telephone base power adapter into the power port
�� Install the plug
located on the back of the IS6110 telephone base and the other
end of the DSL
end into an electrical outlet not controlled by a wall switch. This
filter into the
turns the telephone base on. Do NOT interrupt the installation
wall jack. Then,
process by unplugging the power adapter or by using the handset
connect the
until the POWER indicator light on the front of telephone base
telephone line
cord between is lit steadily.
the filter and the
Step 4: Check diagnostic lights
telephone base.
The POWER light should be lit to indicate the power is on.
3
located on the back of the telephone base. Connect
www.vtechphones.com
Wall jack
on your computer.
Electrical
Telephone base
Computer
USB cable
DSL filter
(not included)
Telephone
line cord
Telephone base
power adapter
outlet
Telephone
base
(front view)
