Quick start guide

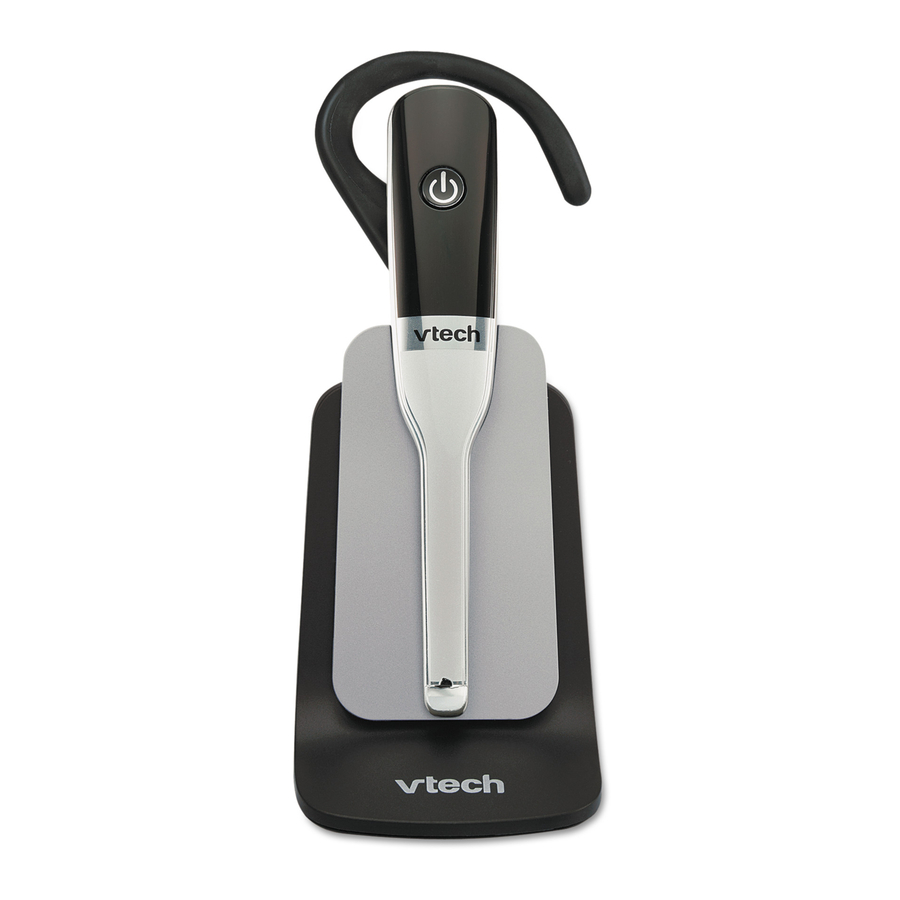

LS6375-3 (LS6325-2 and IS6100)
Introduction
This quick start guide provides you with the basic installation
and use instructions. A limited set of features are described in
abbreviated form.
Please refer to the user's manual for complete installation and
operation instructions.
Telephone base and handset charger installation
Install the telephone base and handset charger as shown below.
Telephone
wall jack
Telephone
line cord
If you have DSL
high speed
Internet service,
a DSL filter (not
included) is
required.
Use only the power adapters and batteries supplied with
this product.
Handset battery installation and charging
Install the handset battery as shown below. Once you have
installed the handset battery, you may be able to make and
receive short calls. For best performance, charge the handset
battery continuously for at least 6 hours.
Plug the battery connector
securely into the socket,
matching the color-coded
label.
3 Slide the battery
compartment towards the
center of the handset until it
clicks into place.
Telephone base
Electrical outlet not
controlled by a wall switch
Telephone base
power adapter
Handset charger
2 Place the battery with the
wires inside the battery
compartment.
4 Charge the handset in the
telephone base.
Handset
charger
adapter
CHarge light
remains on
when charging.
