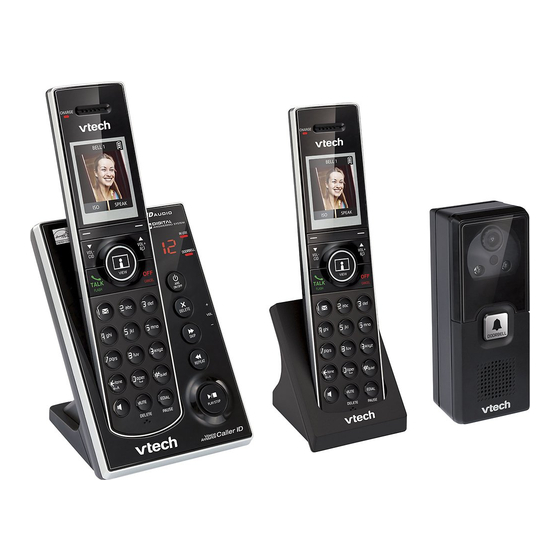

Dect 6.0 cordless telephone with wireless doorbell
Hide thumbs
Also See for IS7121:
- User manual (17 pages) ,
- Installation manual (16 pages) ,
- Installation manual (14 pages)
Advertisement
Quick Links
Download this manual
See also:
User Manual
Installation guide
IS7121/IS7121-2/IS7121-22
DECT 6.0 cordless telephone
with wireless doorbell
Before using this product, read this Installation guide for
instructions for installing the telephone base, handset and
doorbell. For basic settings and operation instructions, see
the provided Abridged user's manual.
Basic steps to install your phone and doorbell
Basic installation
Install telephone base & charger
Install handset battery
2
Install wall mount bracket
3
Install doorbell battery
4
Doorbell installation
Doorbell location testing
5
Doorbell wall mount installation
6
Advertisement
Related Manuals for VTech IS7121
Summary of Contents for VTech IS7121
-
Page 1: Installation Guide
Installation guide IS7121/IS7121-2/IS7121-22 DECT 6.0 cordless telephone with wireless doorbell Before using this product, read this Installation guide for instructions for installing the telephone base, handset and doorbell. For basic settings and operation instructions, see the provided Abridged user’s manual. - Page 2 Install telephone base & charger Click! Plug! DSL filter Click! Plug! Plug!
-
Page 3: Install Handset Battery
Install handset battery Plug! Light on! Charge for at least 30 minutes before initial settings. Charge for 13 hours before initial use. - Page 4 Install wall mount bracket (optional) Unplug! Unplug! Slide the base down! Click! Slide the bracket down! Plug!
- Page 5 Install doorbell battery • The doorbell can be supported by AC power only. See pages 0 and 2 on how to install the power adapter. BASIC INSTALLATION COMPLETED! Keep reading for doorbell location testing. Doorbell location testing Before mounting the doorbell on a wall, make sure you test if the location you install the doorbell is in range, and adjust the camera angle to best suit your needs.
- Page 6 When you check for the desirable location to install the doorbell: • Make sure the visitor is standing in a reasonable distance away from the doorbell. Shooting area 50 degrees inches inches 63 inches • Avoid mounting it to where it is exposed to direct sunlight. •...
- Page 7 To adjust the shooting area, you may either relocate the doorbell in different height level, or adjust the camera angle (see below). To adjust the camera angle: Angle Adjustment Angle Adjustment View View View View Right Left Right Left CAUTION •...
- Page 8 Doorbell wall mount installation Make sure you have done Step 5 above before you mount the doorbell on the wall. Use the two holes on the doorbell wall mount cover to mark the desirable installation location on the wall. If you drill the holes into a stud, go to Step 3. -OR- If you drill the holes into the wall, insert the wall anchors into the holes.
- Page 9 Align the holes on the wall mount cover with the holes on the wall. Tighten the screws into the holes to secure the wall mount cover onto the wall. Align Use a sharp object to open a hole on the soft plastic part on the doorbell wall mount cover, then route the power adapter cord through the hole.
- Page 10 Metallic plate Wire with red end Wire with black end If you already have a wired doorbell installed, see Installing the doorbell with an existing wired doorbell from pages 14 to 16 to install your new IS7121 doorbell unit.
- Page 11 Push the doorbell gently onto the wall mount until they are sealed tightly. This doorbell meets the IPX4 waterproof standard. Make sure the doorbell is tightly sealed with its wall mount cover in order to maintain its waterproof ability. Seal tightly Push Push Tighten the screw into the threaded socket at the bottom...
- Page 12 Plug the adapter into the indoor domestic power supply. Plug! DOORBELL INSTALLATION COMPLETED! Refer to the Abridged user’s manual for common settings and operations.
-
Page 13: Detach Doorbell From Wall Mount Cover
Detach doorbell from wall mount cover After an extended exposure to cold, heat or humidity, the doorbell gasket rubber may become sticky. If you need to remove the doorbell from its wall mount cover in case of battery replacement or doorbell relocation, follow the steps below. - Page 14 (optional) If you already have a wired doorbell installed, follow the instructions below to install your new IS7121 doorbell unit. Turn off the power supply to the existing wired doorbell. Follow Step through Step 5 in Doorbell wall mount installation from pages 8 to 0.
- Page 15 Trans terminal of your chime/buzzer unit of the wired doorbell. Option 1: Ring the front doorbell of the existing wired doorbell and the IS7121 doorbell simultaneously. Angle Adjustment View...
- Page 16 A member of THE VTECH GROUP OF COMPANIES. Distributed in the U.S.A. by VTech Communications, Inc., Beaverton, Oregon 008. Distributed in Canada by VTech Technologies Canada Ltd., Richmond, B.C. V6W L5. VTech is the registered trademark of VTech Holdings Limited.
