Raven SmarTrax system Supplement Installation Manual page 9

5. Install the -8 M/F 90° elbow to the EF port and the -8 JIC (F) to -6 JIC
(M) adapter to the P port on the SmarTrax valve block.
6. Connect the pressure switch to the PS port on the SmarTrax valve block.
7. Disconnect line from P port on orbital and connect to P port on SmarTrax
valve. Connect hose (P/N 214-1000-109) to the EF port on the Smartrax
valve and then to the pressure port on the orbital.
8. Connect hoses (P/N 214-1000-120) to the tees installed in the left and
right steering lines on the orbital and then to the A (left) and B (right)
ports on the Smartrax valve.
9. Connect hose (P/N 214-1000-122) to the T port on the Smartrax valve
and then to the tee in the tank line on the orbital.

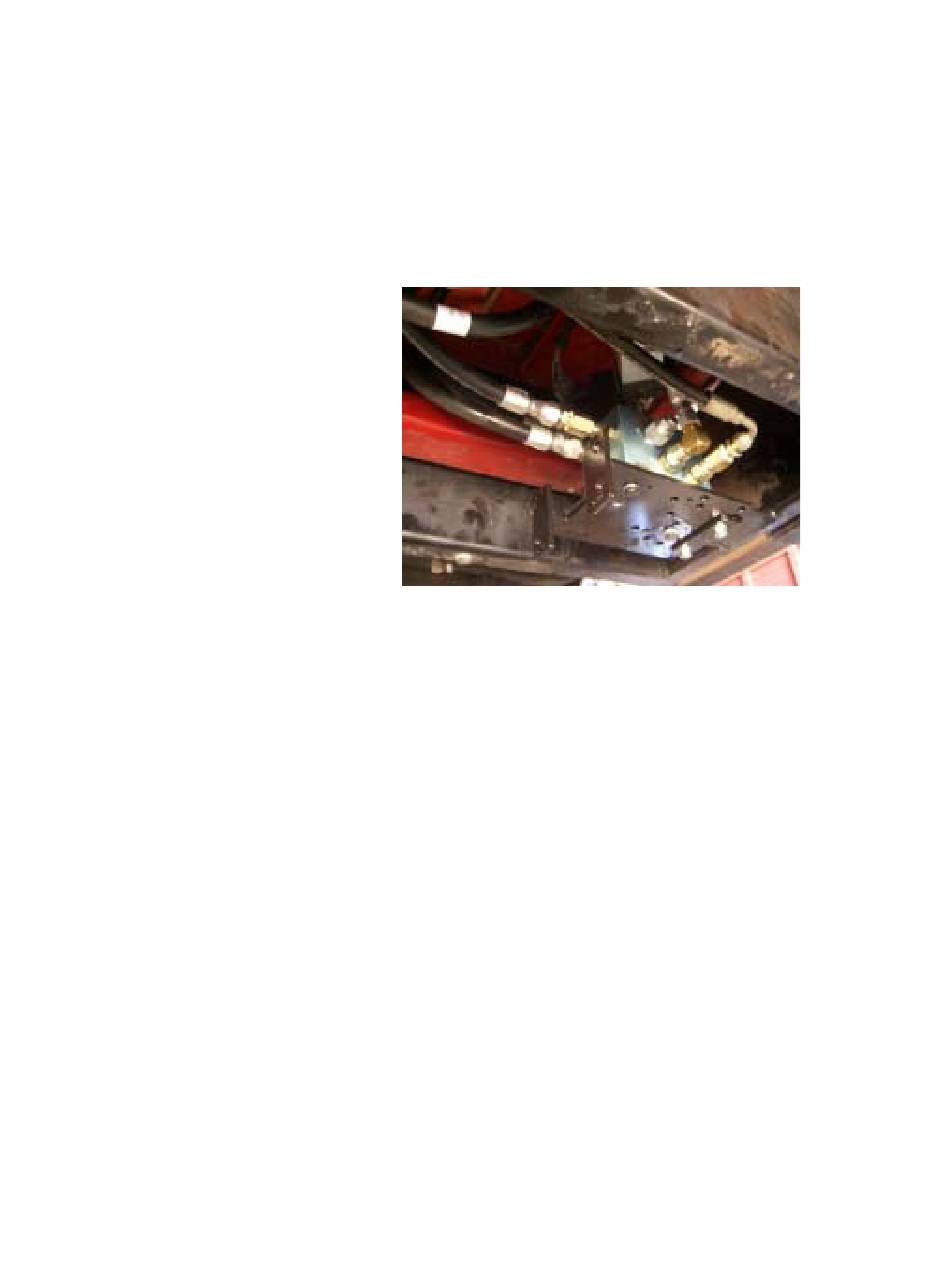

SmarTrax Valve Hoses/Fittings
Manual # 016-0190-030 Rev A, 09/06
7
