M
OUNTING THE
1. Mount the valve underneath the machine to cross member behind the
orbital or to the inside of the left frame rail.
NOTE: You may need to drill holes in the universal bracket to accomodate the
bracket and valve block in the configuration shown above.
U B
NIVERSAL

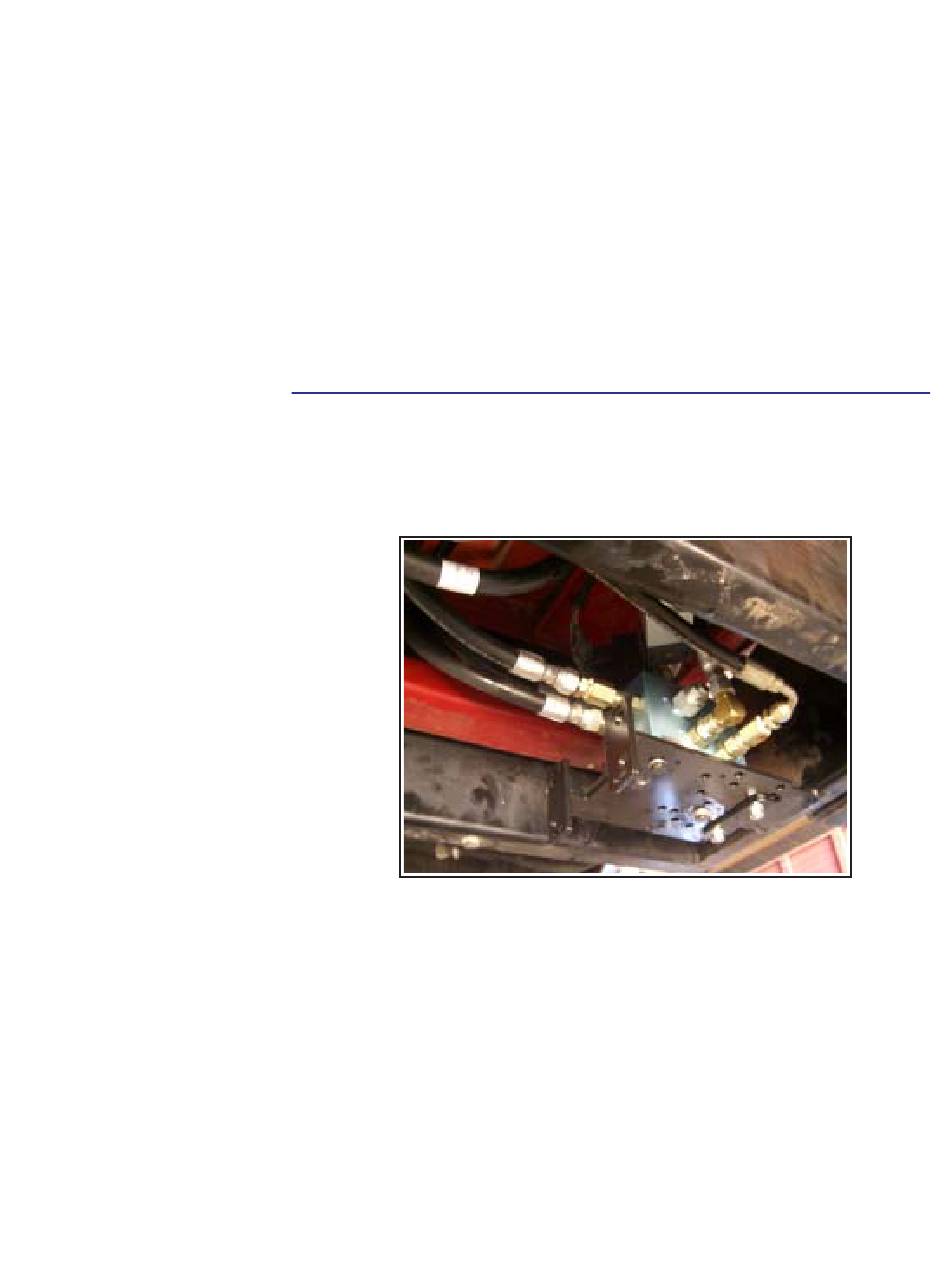

Valve mounting location and orientation
Manual # 016-0190-030 Rev A, 09/06
C
H A P T E R
3
V
RACKET AND ALVE
5
